Name: [Discontinued] pcDuino8 Uno Arches Single Board Computer Allwinner A80 Default with Ubuntu, Arches Single Board
SKU: 991808

Product Details ＋

Description:

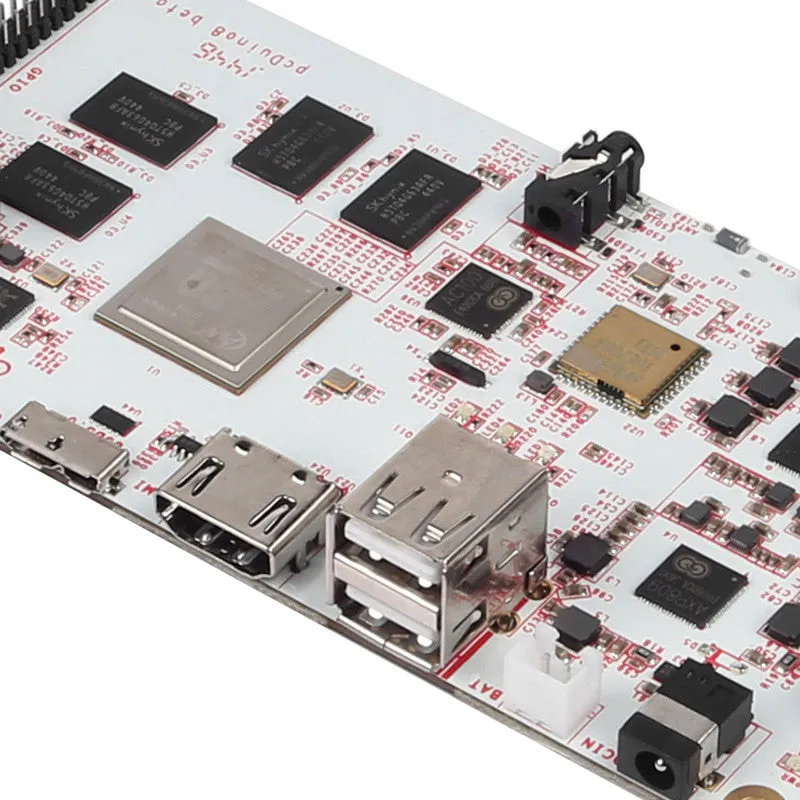

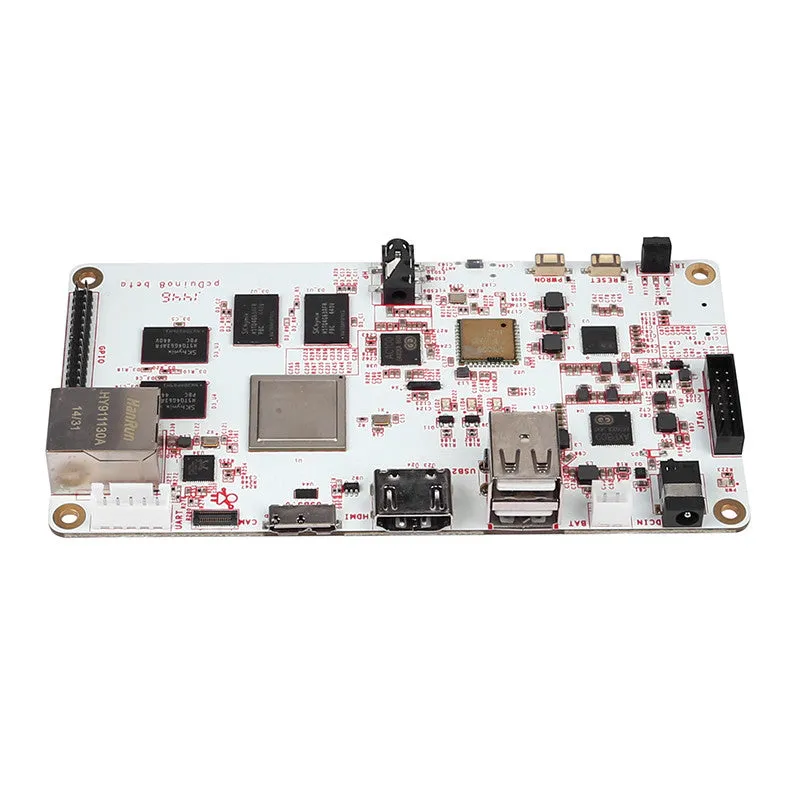

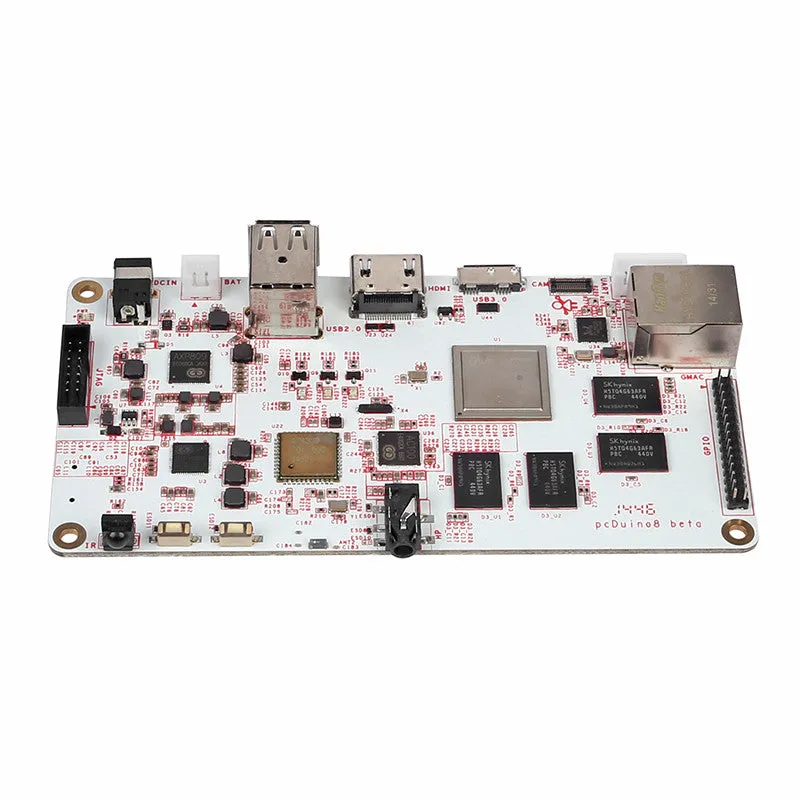

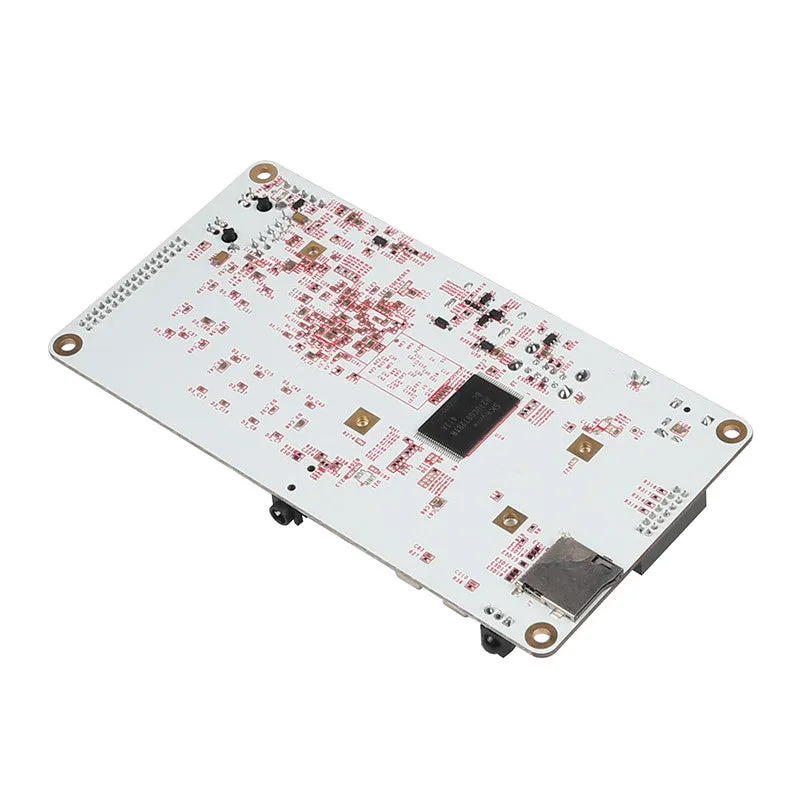

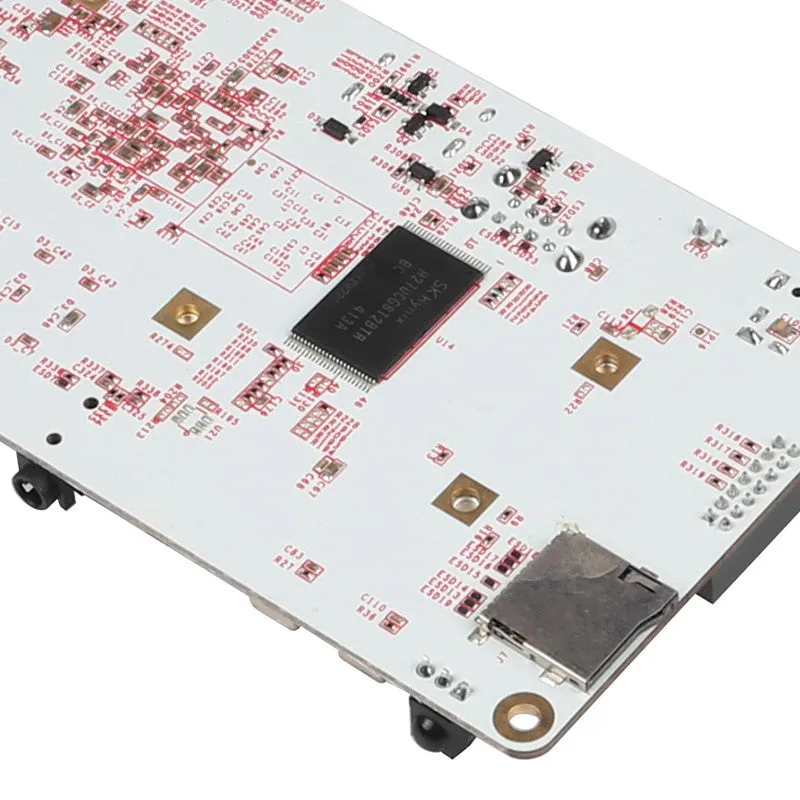

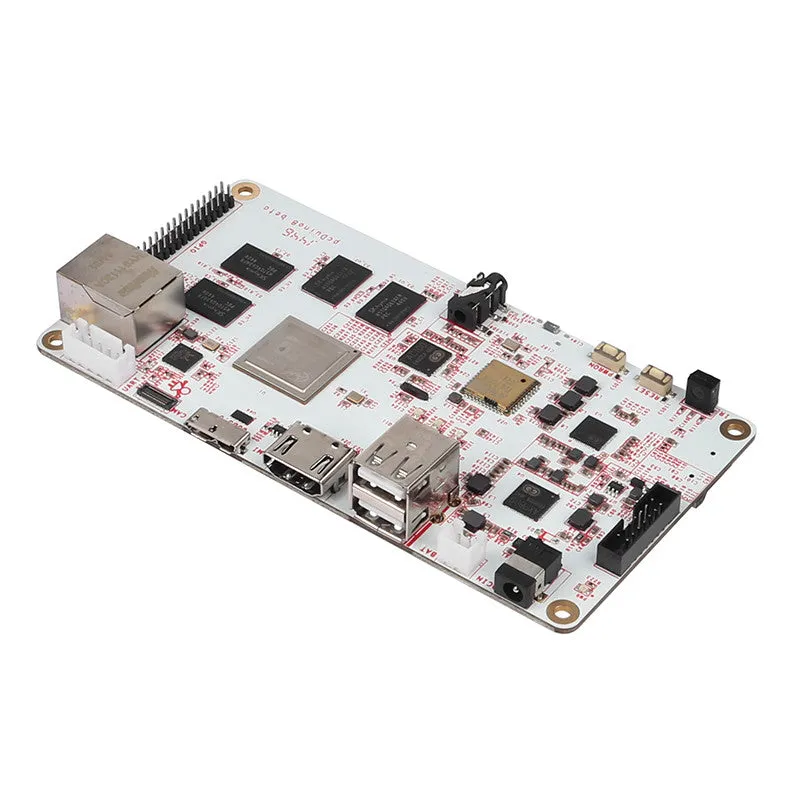

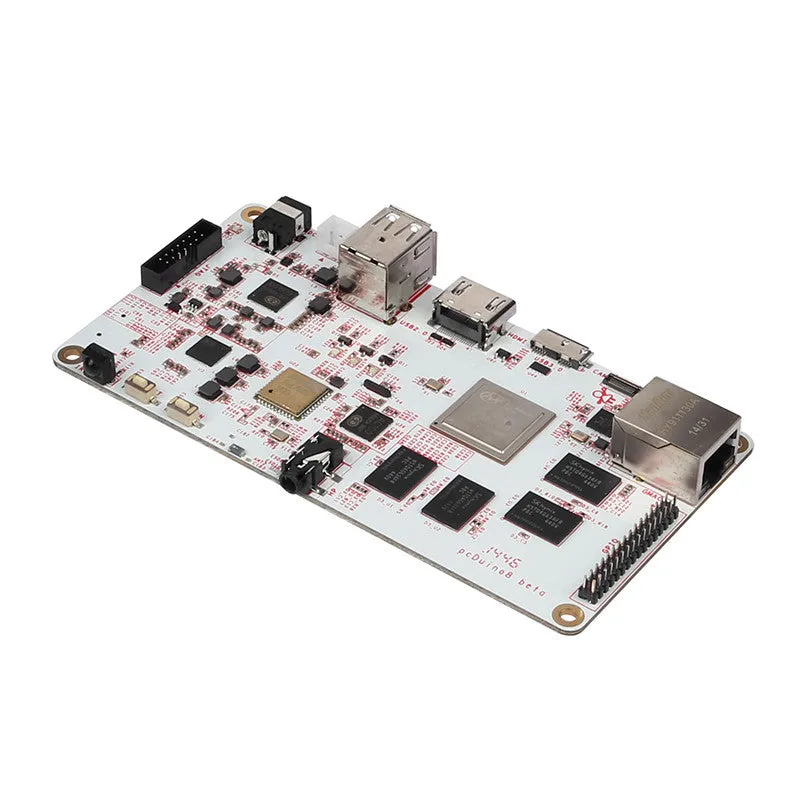

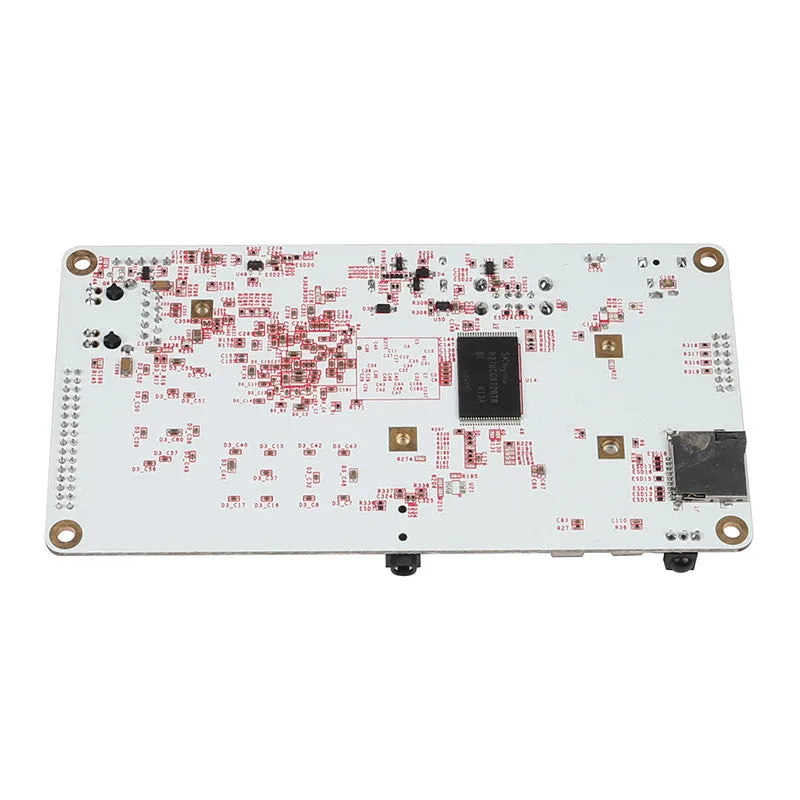

pcDuino8 Uno is a high performance, cost effective single board computer. It runs operation systems such as Ubuntu Linux and Android. pcDuino8 Uno has HDMI interface to output its graphic desktop screen. It could support multi-format 1080p 60fps video decoder and 1080p 30fps H.265/HEVC video encoder with its built-in hardware video processing engine. It targets specially the fast growing demands from the open source community. pcDuino8 Uno provides easy-to-use tool chains and is compatible with the popular Arduino ecosystem such as Arduino Shields.

A80 Block Diagram:

Hardware Specifications:

Items	Details
CPU	AllWinner H8 8-Core Cortex-A7 @ 2.0GHz
GPU	Power VR SG544 @720MHz
DRAM	DDR3 1GB
Onboard Storage	microSD card slot for up to 32GB
Network Interface	Gbps RJ45
OS	Ubuntu 14 Android 4.4
Video Output	HDMI 1.4 with HDCP support
Arduino extension interface	Arduino sockets, same as Arduino Uno 14x GPIO, 2xPWM, 1x UART, 1x SPI 1x I2C 6xADC (extra module needed to provide ADC)
HDMI	1 x HDMI 1.4
Audio Output	1 x 3.5mm analog audio interface
IR	1 x Infrared Receiver (Not populated, user can post-install)
Camera	MIPI
USB	1 x USB Host, 1 x USB OTG
Power	5V, 2000mA Micro USB
Overall Size	3 5/8â€?x 2 1/8â€?/span>

Hardware Headers:

Download:

Items	Details
CPU	AllWinner H8 8-Core Cortex-A7 @ 2.0GHz
GPU	Power VR SG544 @720MHz
DRAM	DDR3 1GB
Onboard Storage	microSD card slot for up to 32GB
Network Interface	Gbps RJ45
OS	Ubuntu 14 Android 4.4
Video Output	HDMI 1.4 with HDCP support
Arduino extension interface	Arduino sockets, same as Arduino Uno 14x GPIO, 2xPWM, 1x UART, 1x SPI 1x I2C 6xADC (extra module needed to provide ADC)
HDMI	1 x HDMI 1.4
Audio Output	1 x 3.5mm analog audio interface
IR	1 x Infrared Receiver (Not populated, user can post-install)
Camera	MIPI
USB	1 x USB Host, 1 x USB OTG
Power
