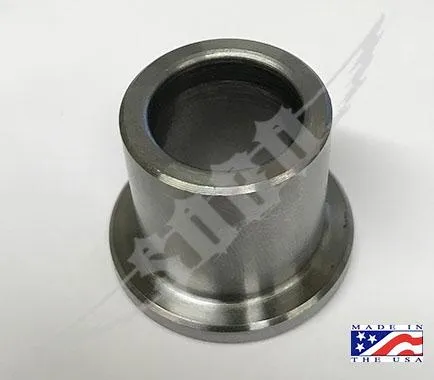

Sky Manufacturing Knuckle Taper Sleeve For Ford Tie Rod Ends

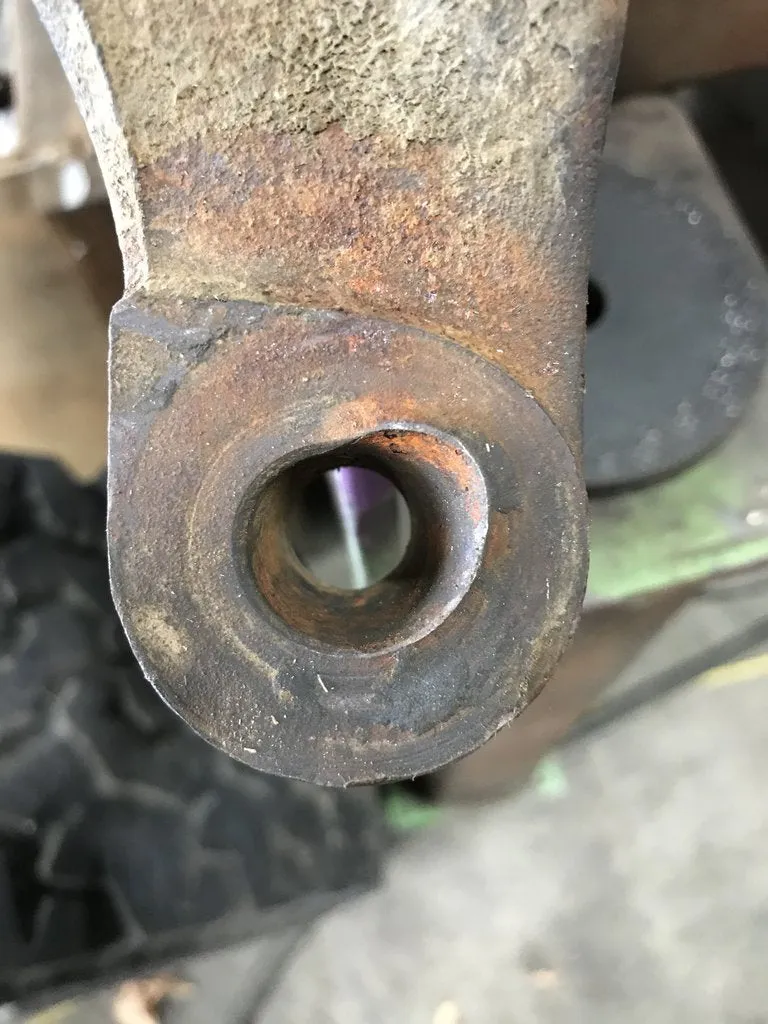

These Cnc machined weld in tapered sleeves can be used to fix wallowed out tie rod end holes in Ford Steering knuckles, or to convert a knuckle, steering arm or pitman arm to fit common Ford tie rod ends. Years of 1985-97 using a factory tie rod, or moog DS1071 and ES3009r end.

Specs: Taper 0.710" Major   0.625" Minor
 0.875" OD ,  1.153" OD of flange,    0.145" Flange Thickness    0.900" OAL
Made in the USA from 1020 DOM Steel bar.
Sold individually

Instructions:
To install drill hole out to 0.875" OD and counter sink flush, then weld in.
