This is the new Tracer AN Series MPPT controller, only recently released.

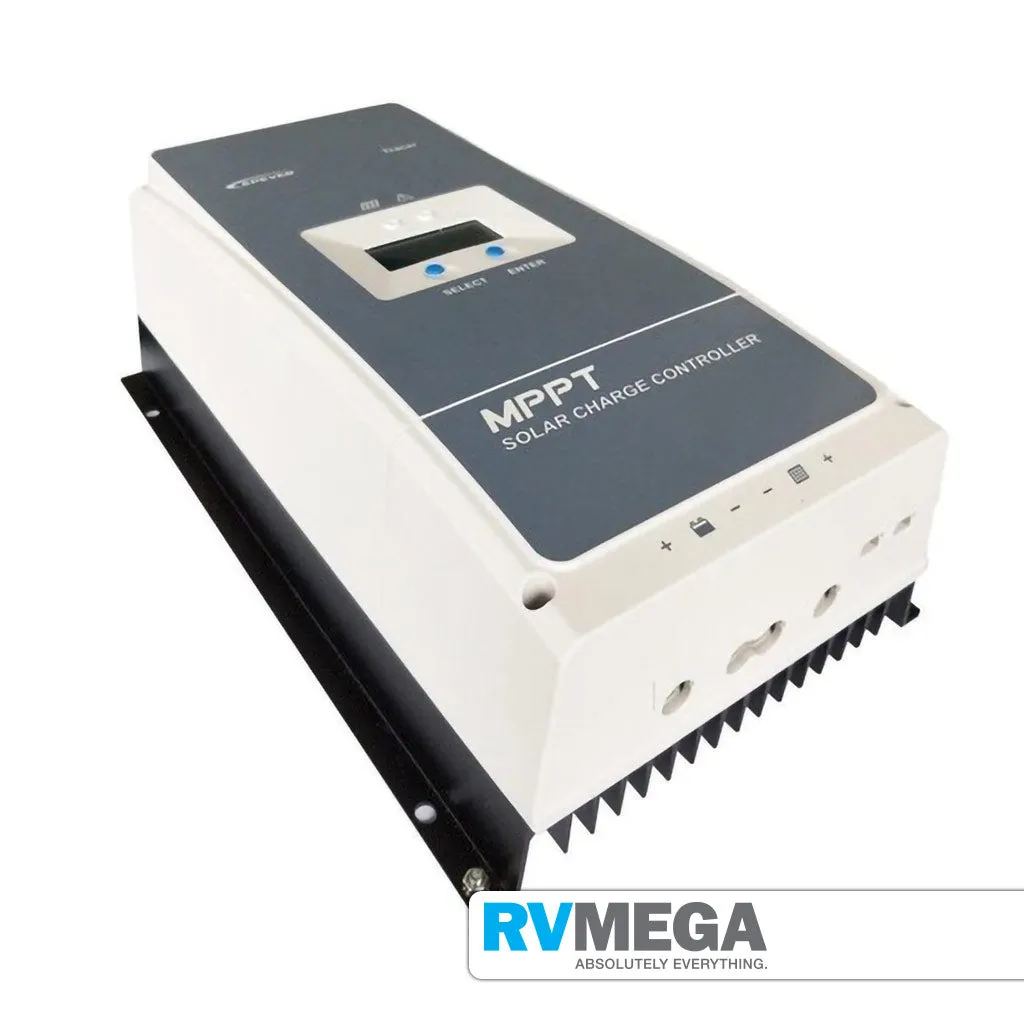

Tracer model 6515AN

A genuine MPPT controller contains a maximum power point (MPP) tracker, which finds the MPP voltage of your array. Any additional voltage is converted into current. On 12V panels, you can expect a 10-15% improvement during bulk charging. However, the main benefit is the ability to run a higher voltage array on a lower voltage battery bank, up to 150V. This reduces the cost of wiring, connectors and circuit protection..

Improvements include

• Inbuilt display showing real-time data

• Integration with MT-50 display

• Faster, more accurate tracking (Immediate on boot up, 99.5% accuracy)

• Higher conversion efficiency (98%)

• Ability to connect a larger array. The controller has the ability to restrict the charging current, so it does not exceed 20A The benefit it more power during off off peak times.

• Electronic protection: over charging, over discharging, overload, short circuit, and reverse polarity.

Dimensions

• W236 x H340 x D119mm

Features

• Battery voltage: 12V/24V/36V/48V (auto detect)

• Maximum PV Open-circuit Voltage (Voc): 150V Max

• Rated PV Size: 750W/1500W/2250W/3000W

• Maximum PV Current: 60A

• Working temperature: -20 ~ 45C

• Weight: 4.5 kg

Terminal 35mm2

Recommended cable 16mm2

2 year warranty

Please note this unit does not show consumption, you will require a battery monitor for this.
