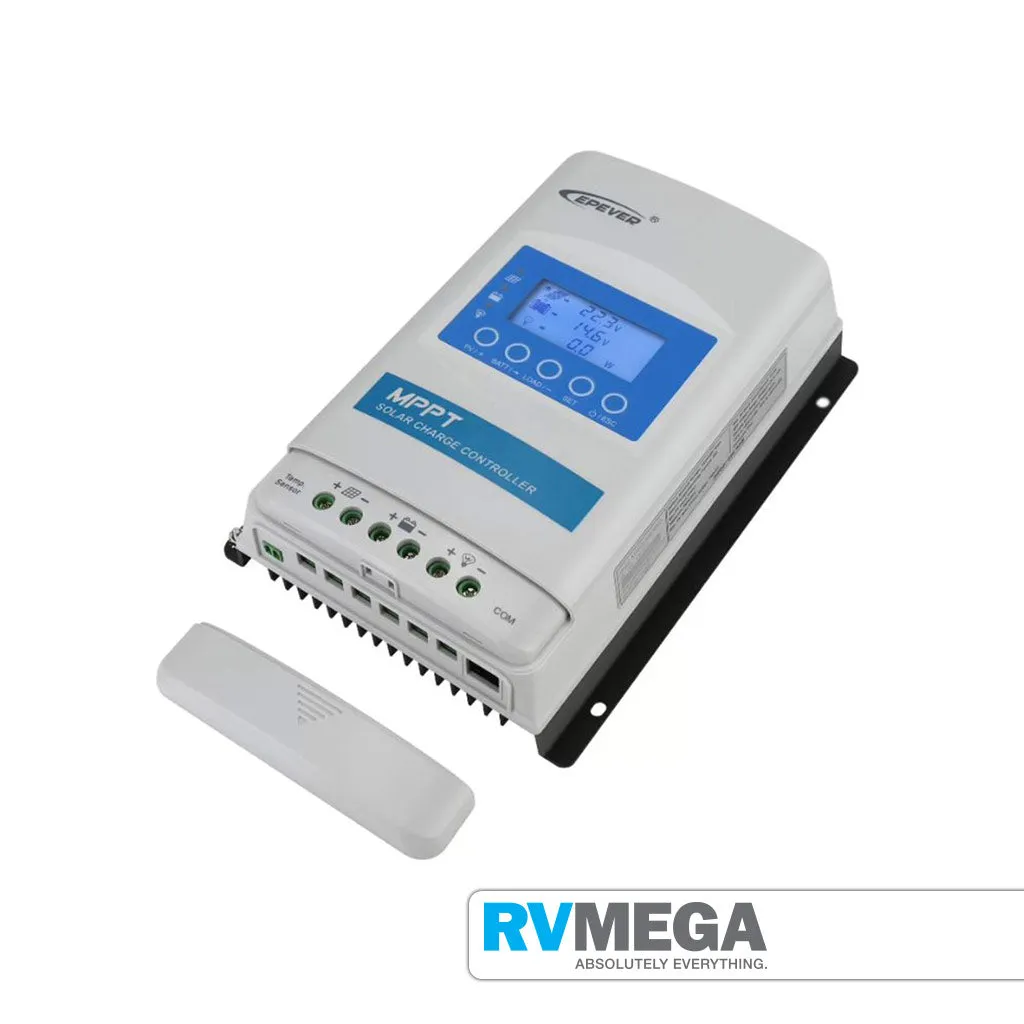

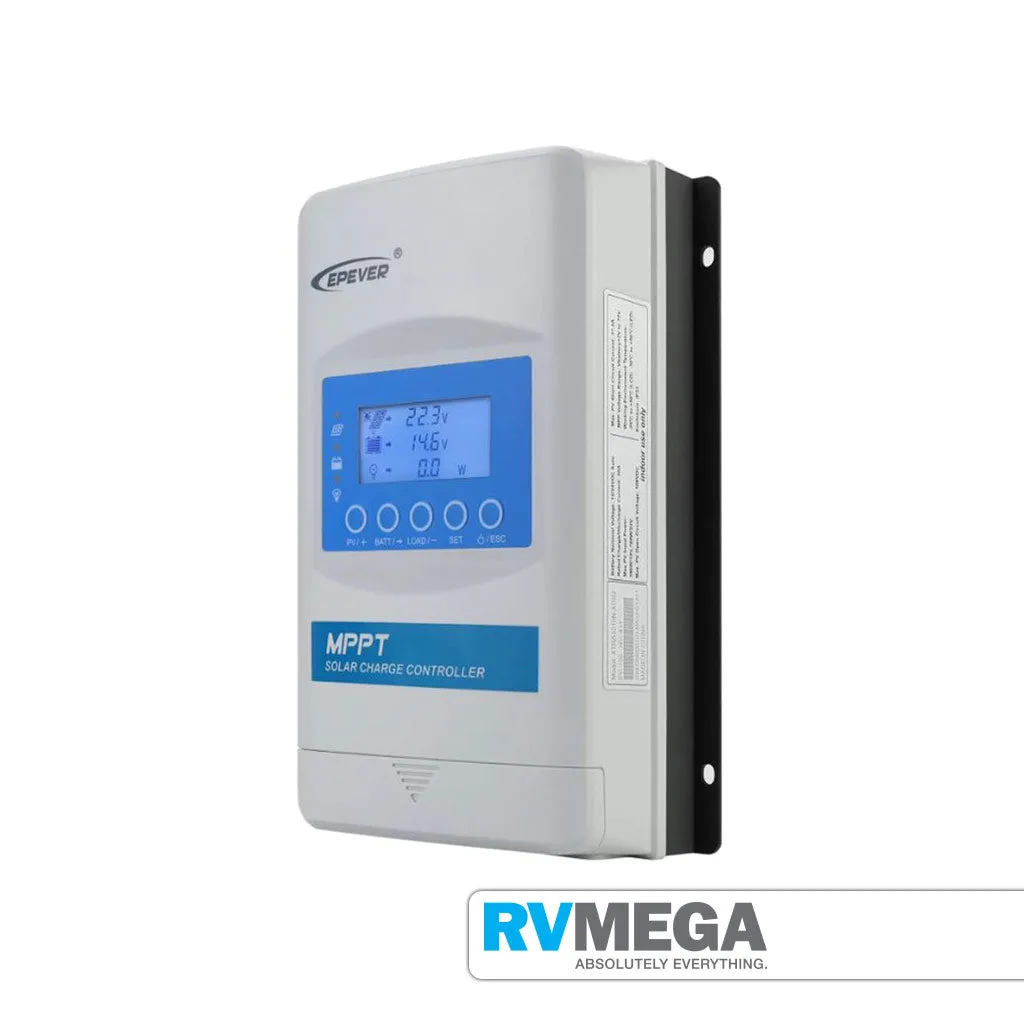

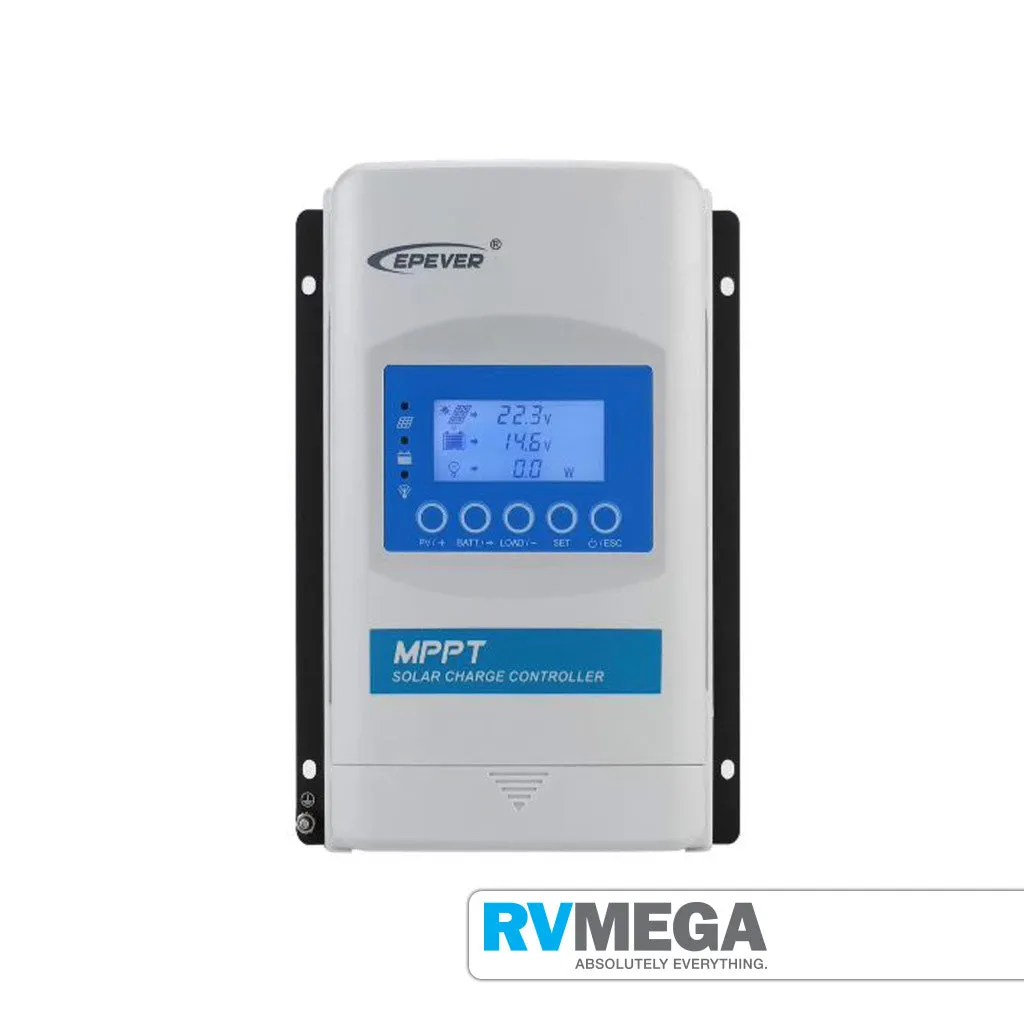

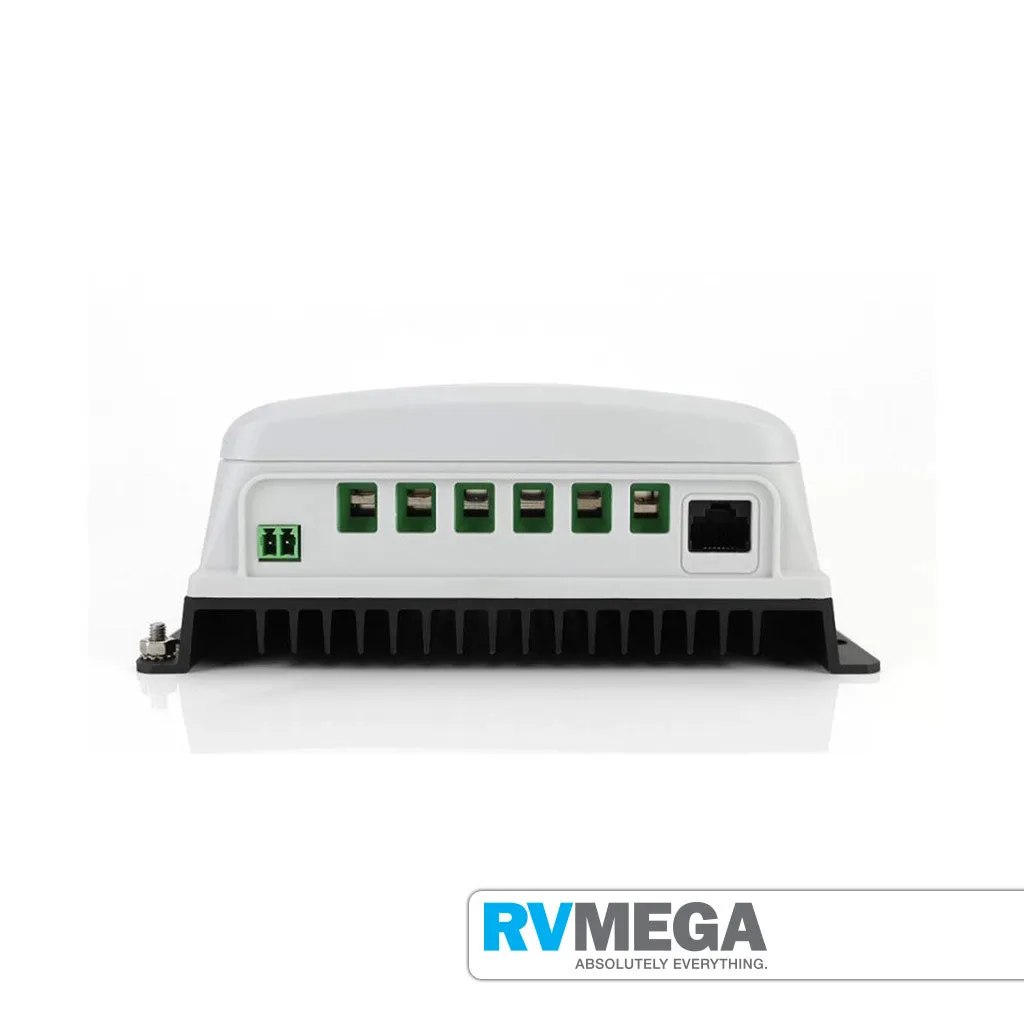

XTRA series are advanced maximum power point tracking (MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units (XDB1/XDS1/XDS2).
In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range of operating conditions, the XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation PWM solar charge controller.
Xtra series controller has a limit protection function on charging current &charging power, as well as auto derating power operation at high temperatures; the above protection ensures the stability of the system even at exceeded rated PV power and over-temperature conditions.
Protection class IP32 and isolated RS485 communication port further improve the controller’s reliability under different application requirements. XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of the battery and significantly improves the system performance.
It also has extensive electronic protection for overcharge, over-discharge, PV&battery reverse polarity and etc. to ensure the sustainability and durability of the off-grid solar system.
Features:
Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4 %
Wide MPP operating voltage range
Low-temperature protection and self activate the function for lithium battery charging
Limit charging power & current overrated range
Real-time energy statistics function
Multiple load work modes
Comprehensive electronic protection
Compatible with lead-acid and lithium-ion?batteries
Over-temperature protection and power degrading in higher temperature
Optional LCD display units (XDB1/XDS1/XDS2) and accessories
High quality and low failure rate components of ST or IR to ensure the service life
Isolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
Monitor and set the parameters via the APP or PC software
Dustproof and waterproof design with IP32? protection class
CE certification(LVD IEC62109, EMC EN3/1-6-61000)
Specifications:
System nominal voltage: 12/24VDC Auto (When a lithium battery is used, the system voltage can’t be identified automatically)
Rated charge/discharge current: 40A
Battery voltage range: 8~32V
Max. PV open circuit voltage: 92V At 25? environment temperature, 100V At minimum operating environment temperature
Max. PV input power: 1040W when the battery system is 24V, 520W when the battery system is 12V
Battery type: Lead-acid battery(Sealed/Gel/Flooded/User), Lithium battery(LiFePO4, Li(NiCoMn)O2, User)
Mounting dimension: 200×176mm with F5mm Mounting hole size
Recommended cable: 6AWG(16mm2)
