Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Minature Socket |
| Alternate Mfr Part Number | R-IM-T-SSPF |
| Color | Brown |
| Connector Size | Miniature |
| Connector Type | Panel Mount |
| For Use With | Type T Thermocouple |
| Housing Color | Brown |
| Maximum Operating Temperature | 220 °C |
| Minimum Operating Temperature | -35°C |
| Mounting Type | Stainless Steel Bracket |
| Operating Temperature, Maximum | 220 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Thermocouple Type | T |
| UPC Code | 5056112008644 |
| Warranty | 3 Year Warranty |
Overview

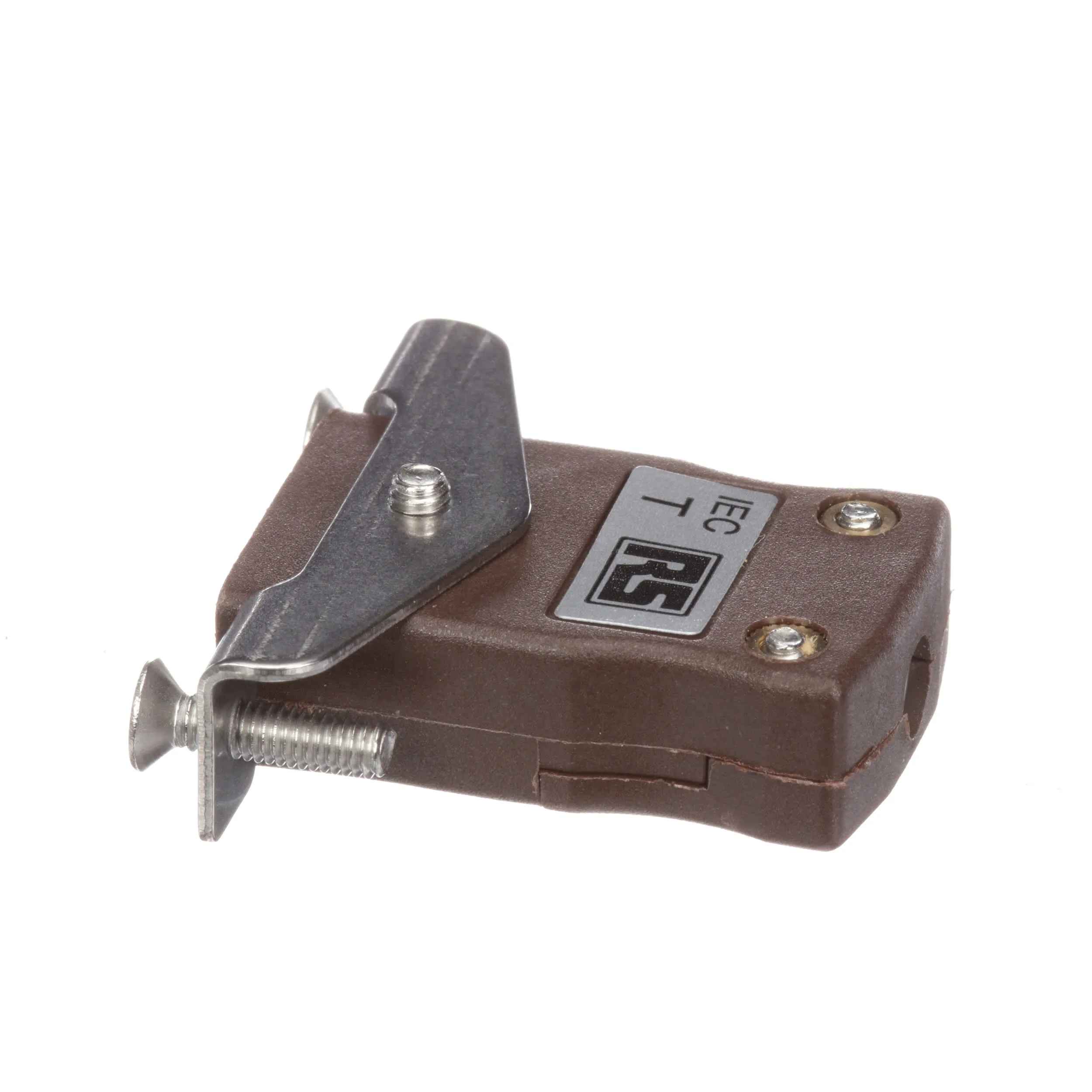

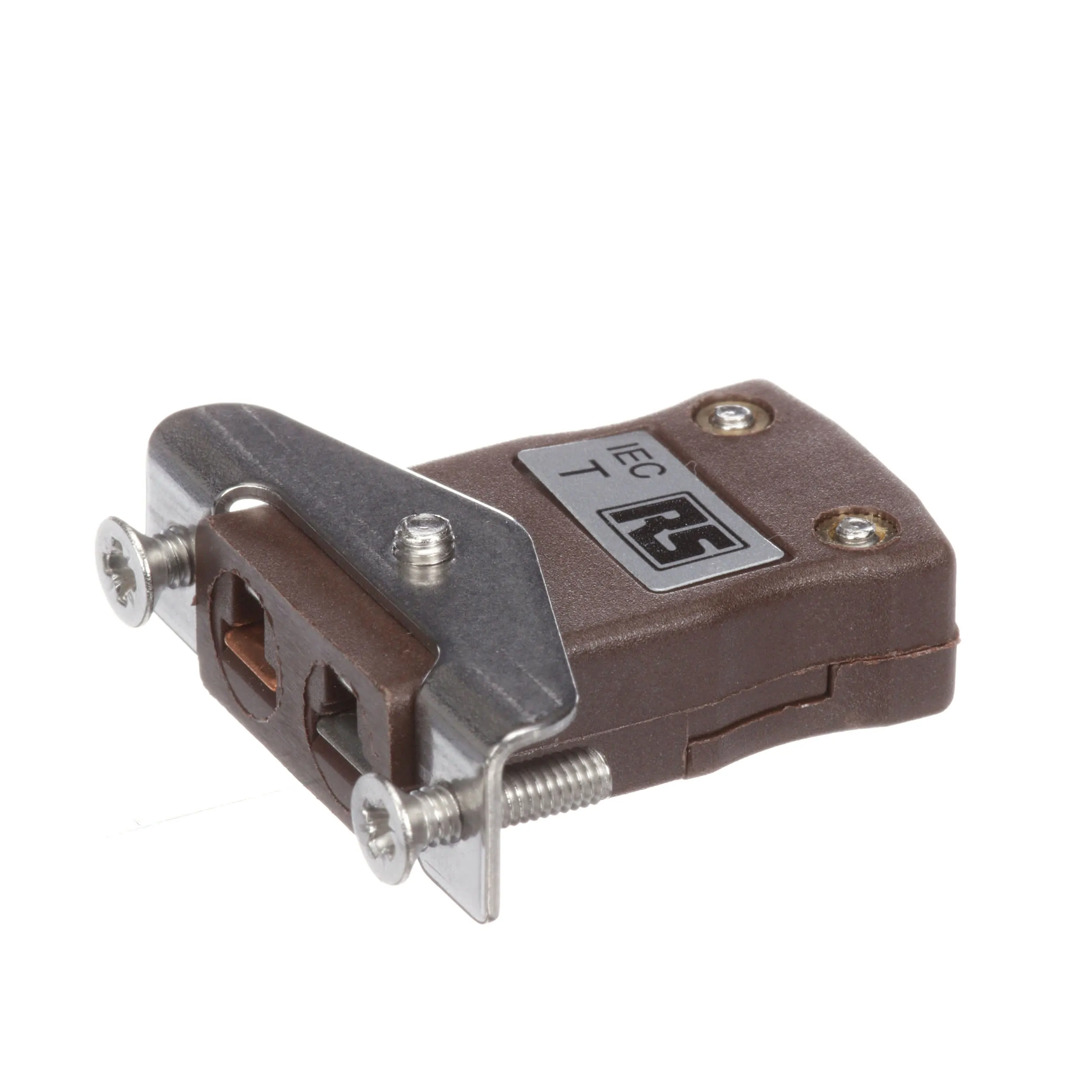

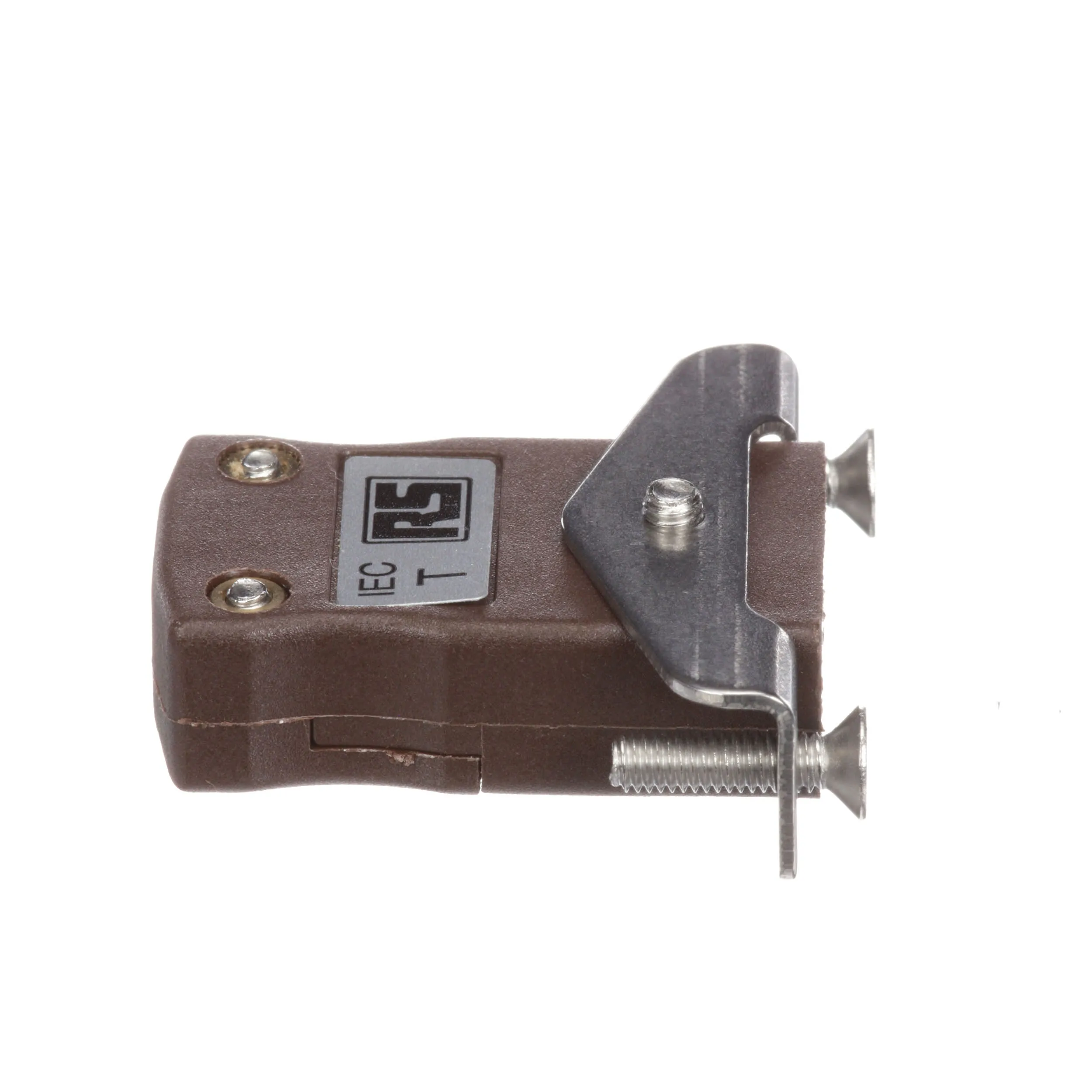

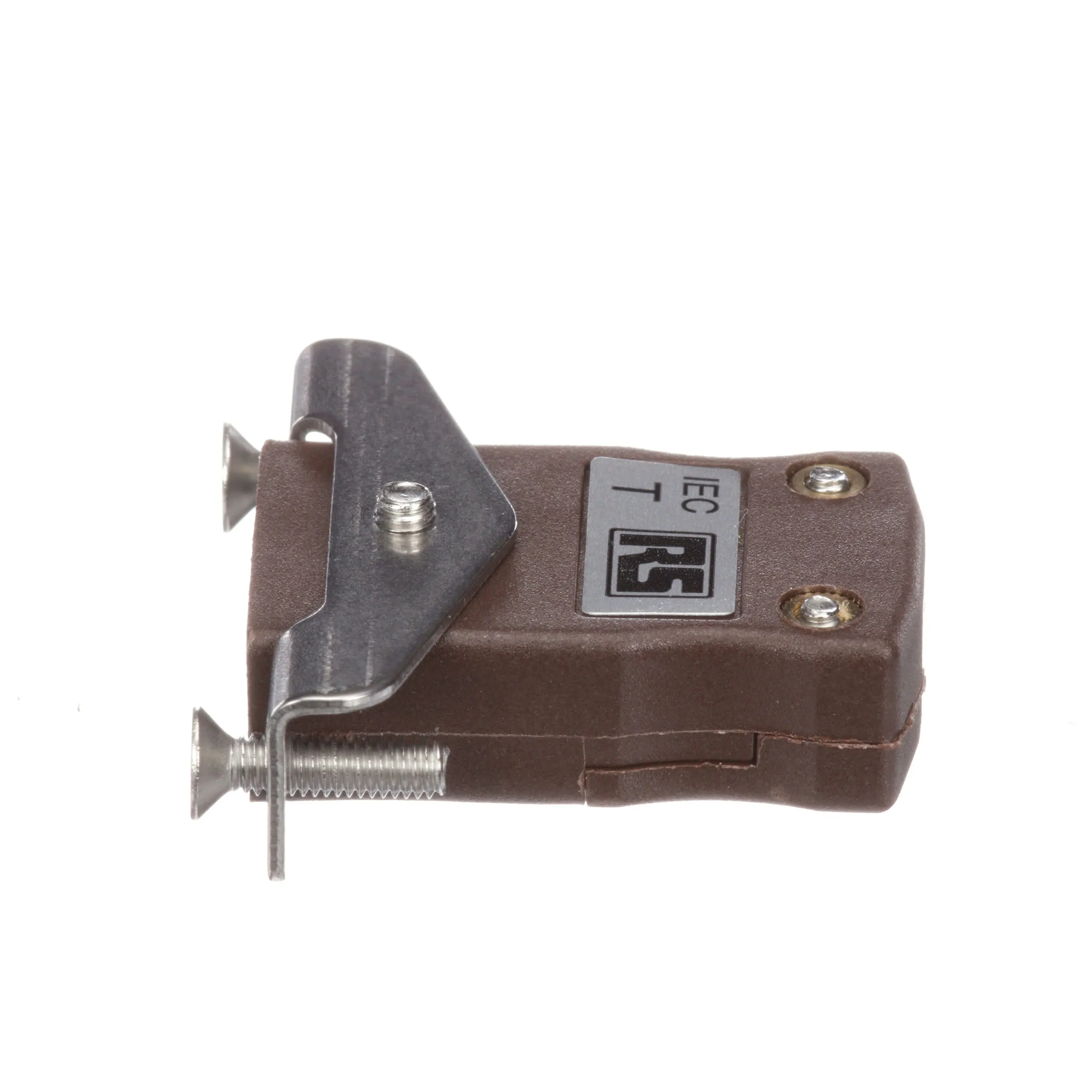

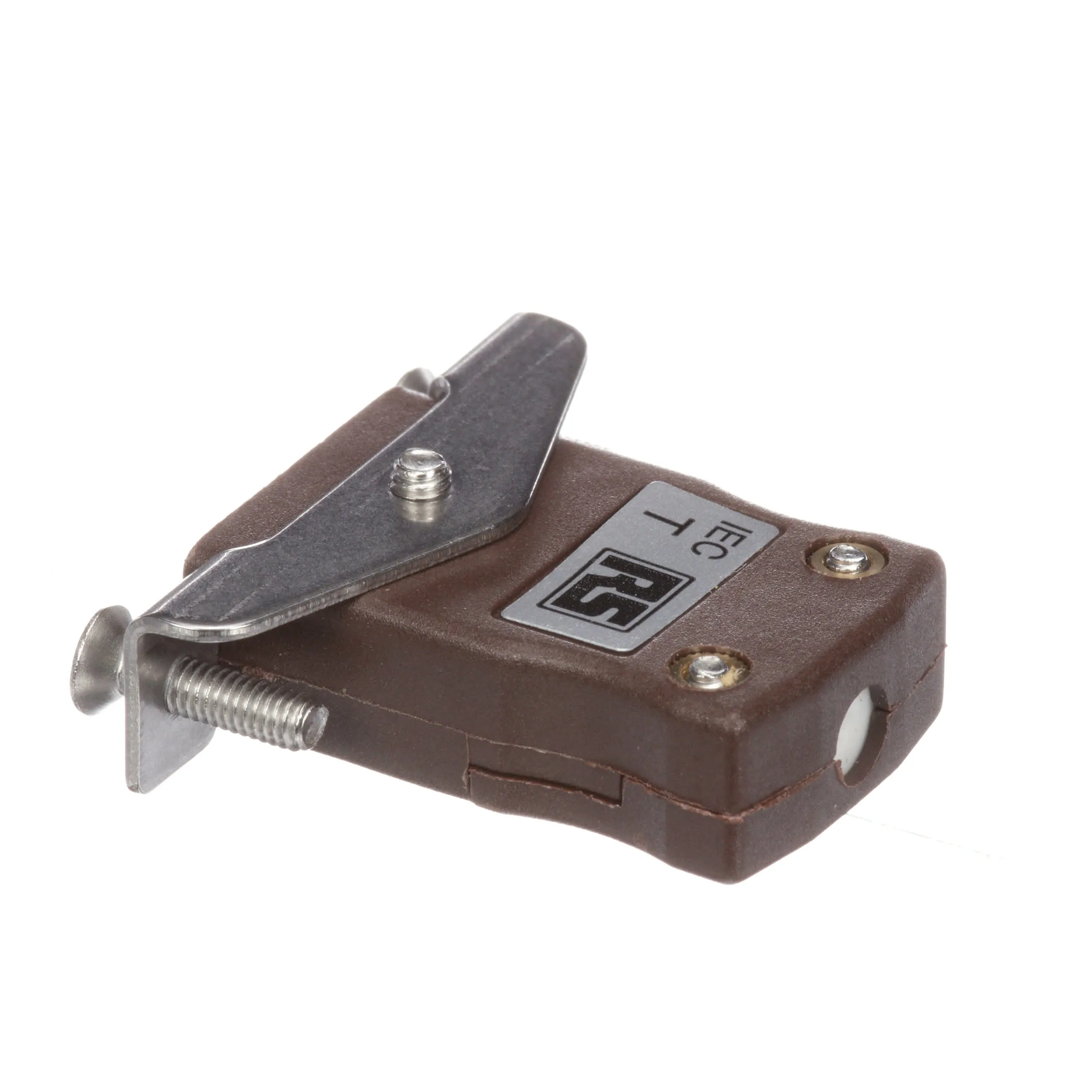

Miniature Sockets with Panel Mounting Brackets
Miniature size in-line thermocouple sockets with stainless steel panel mounting bracket, suitable with RS range of Aluminum faceplates. Available in thermocouple types K, J, T, E, N, R/S, B and copper.
Stainless steel bracket for reliable fitting into panels
Washers included
For all applications, especially industrial processes
Operating temperature 220°C max
