Product Details
+

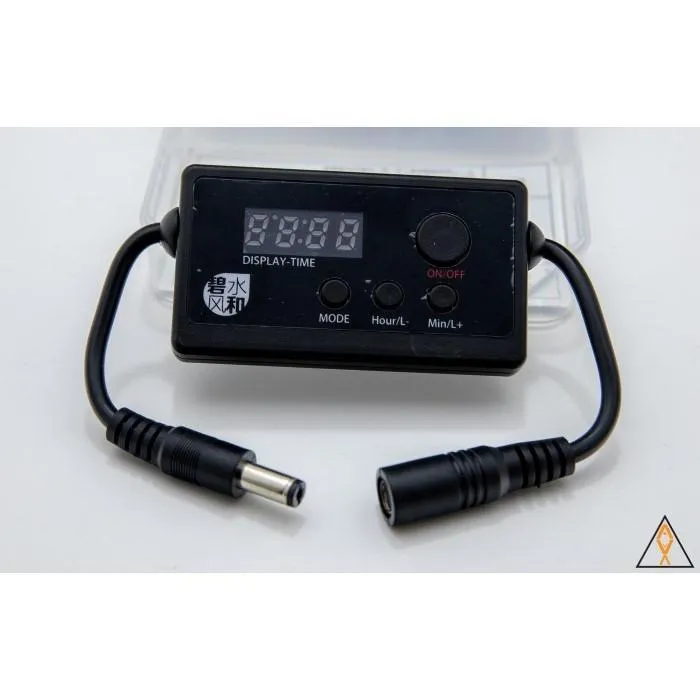

Want a budget LED with sun rise and sun set function? Now you can buy Hinterfeld's smart controller and convert your normal LED (must use with constant voltage transformer) into a programmable LED light. Suitable for use with LED's under 36 V and 100 W.
Features
8 programs, set 8 different light intensity at 8 different time during the day.
Features
8 programs, set 8 different light intensity at 8 different time during the day.
- Real time display.
- 0-100% adjustment on each setting.
- Built-in clock - you can set intensity change at your preferred time.
- Power disconnected memory - your setting will remain in the device even if the power is disconnected, and it will resume the setting once you connect the power again.
- Easy to use, simply take the controller out from box, and connect it between the LED light and the AC/DC adapter.
- Changes intensity linearly over time and imitates real sunrise and sunset.
- Connector: DC5.5 (you need to make sure your fitting is using this connector).
Area of Use
- Planted Tanks and Fish Tanks - Simulate sunrise and sunset for the day.
- Arowana (Dragon Fish) Tanks - Can leave 1-3% moon light through the night, less stress on fish and less chance of self injury.
- Cooling fan - Can be programmed according to time of day and change in temperature
- DC water pump - Can control a DC circulating pump to simulate different water currents
Instructions
ON/OFF
- Short press to turn on and off
- Long press to go into clock setting, use /- to adjust hour and mins, then press Menu to exit
MIN/L
- Increase intensity
HOUR/L-
- Decrease intensity
MODE
- To enter programming mode, press and hold for 3 seconds
- The display will flash between NO-1 and the current time, press and - to adjust
- Press mode again for brightness setting, press and - to adjust
- Press mode again and the display will flash between NO-2 and the current time, press and - to adjust
- Press mode again for brightness setting, press and - to adjust
- Press mode again to enter the next timed program setting etc. up to 8 programs
- Caution: If display shows "--:--" it mean the setting is not recognized
Display
- L00*/Time rotate - it is working at that particular setting
- AUTO/Time rotate - it is running the programs automatically (the device default is AUTO, it goes into AUTO mode once turned on)
