Product Description

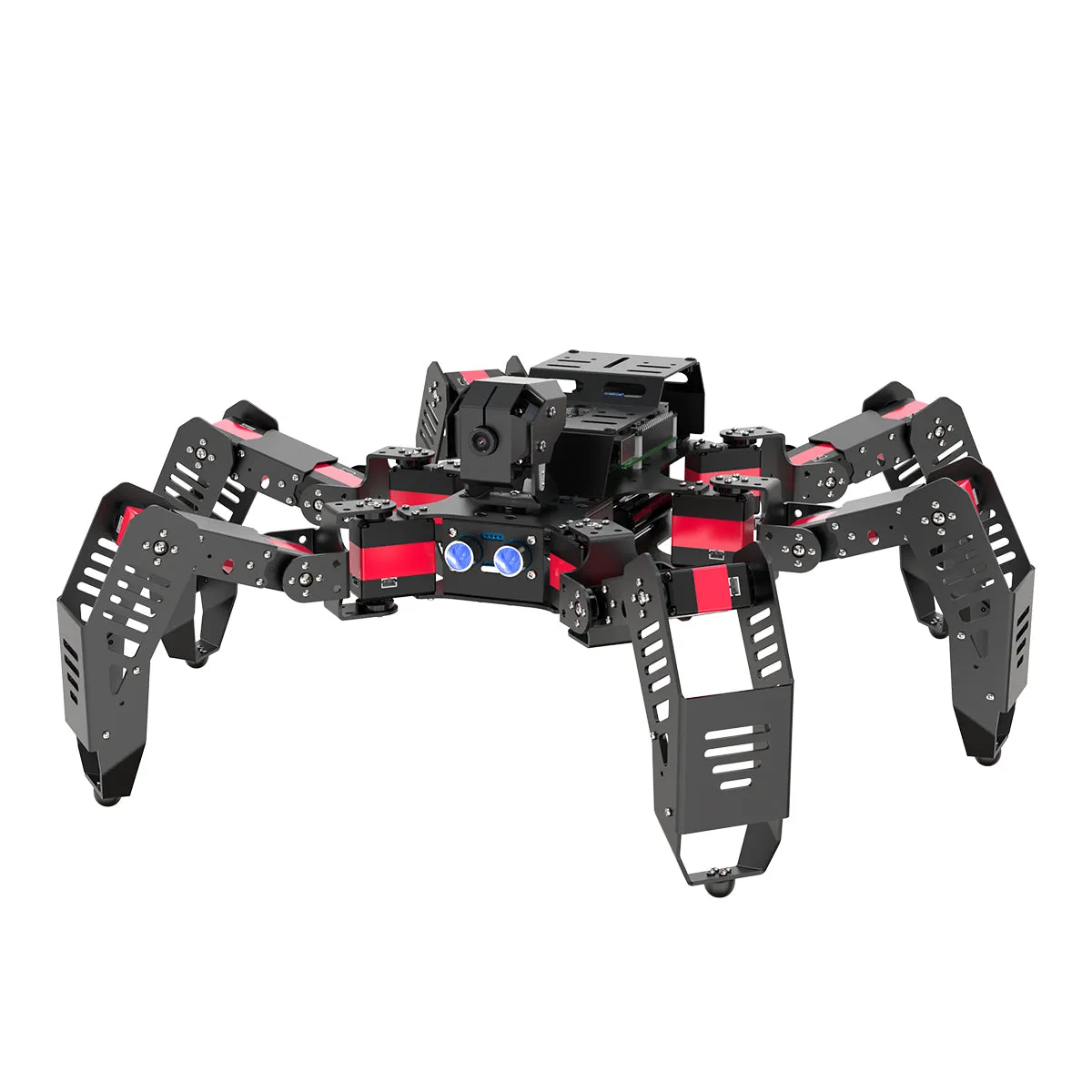

SpiderPi is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, and can be programmed using Python. SpiderPi serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.
SpiderPi is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, and can be programmed using Python. SpiderPi serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.

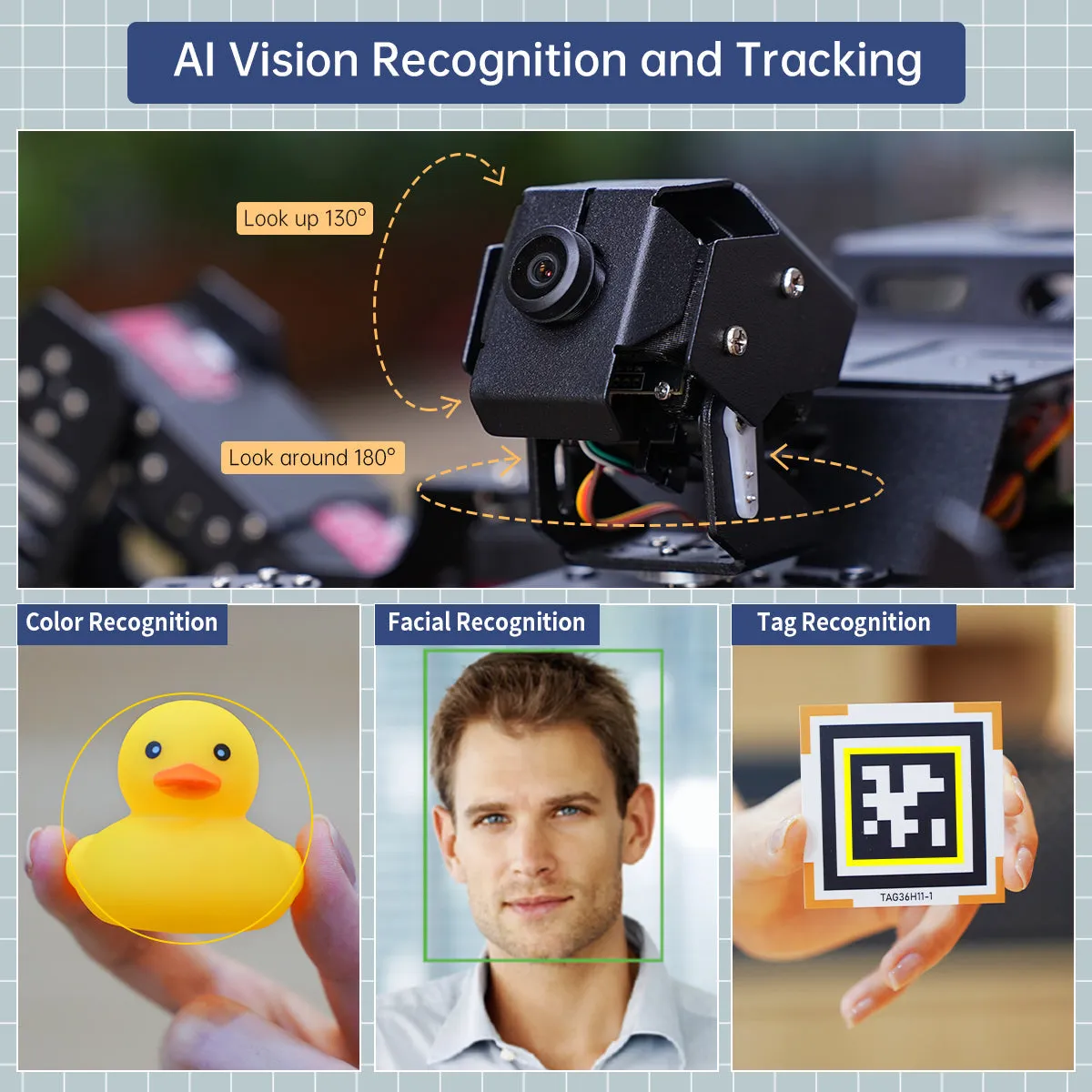

2DOF Wide-angle Camera
SpiderPi is equipped with a HD wide-angle camera, which allows the robot's vision recognition range to be larger, and the camera supports manual focusing, which is more convenient to use.

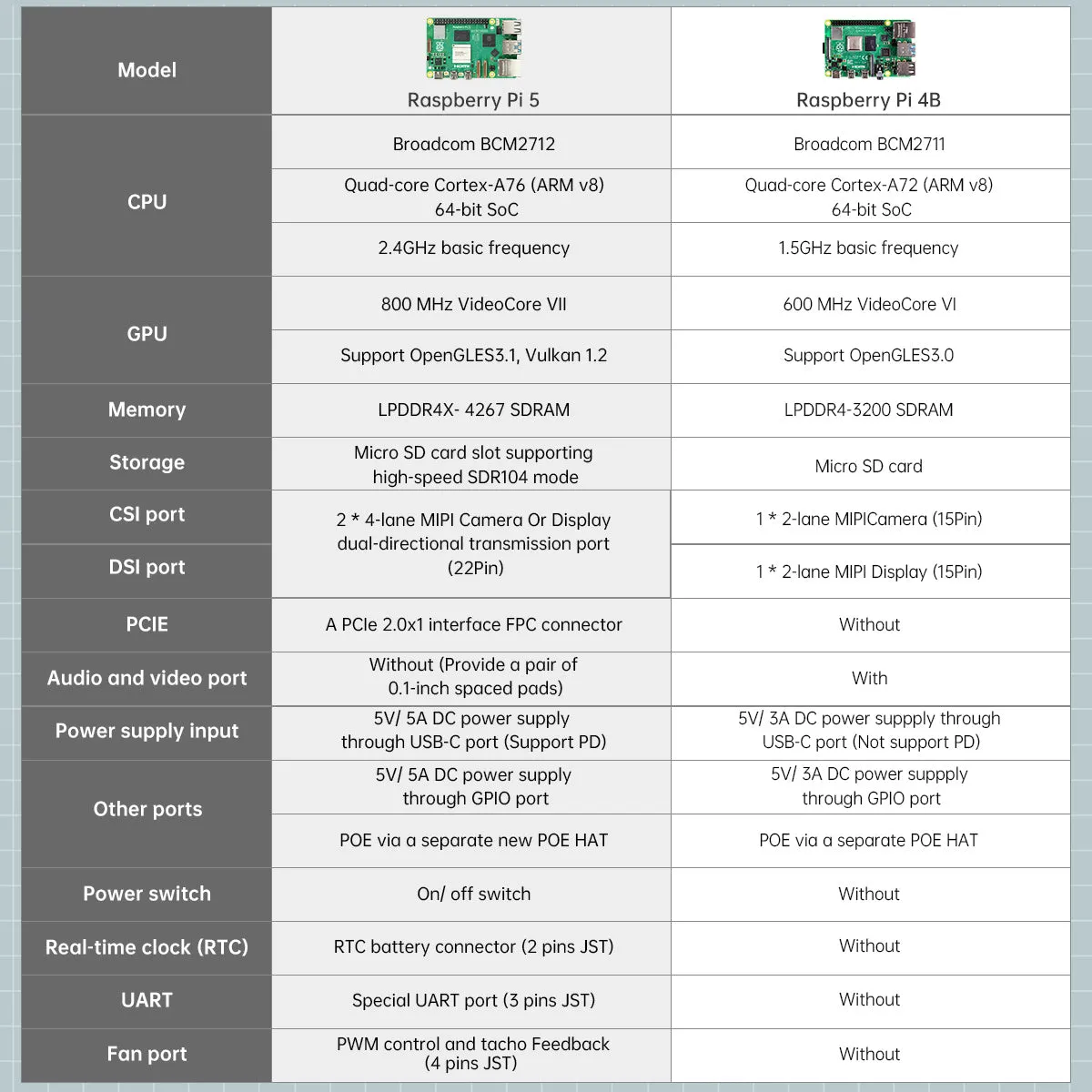

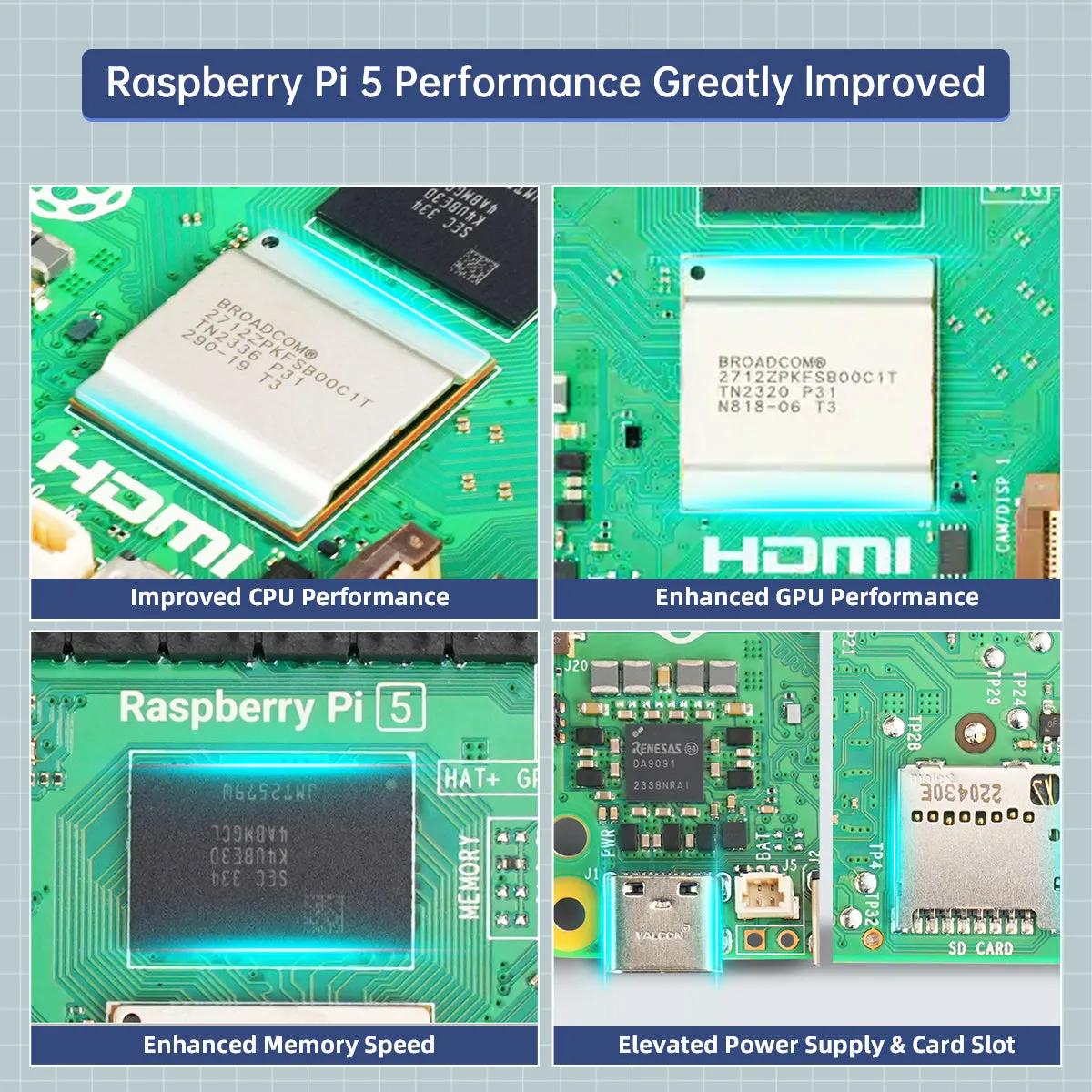

Powered by Raspberry Pi
SpiderPi is powered by a Raspberry Pi 4B/5 controller that adjusts the body attitude. At the same time, we provide rich course materials to let you quickly experience motion control, machine vision and OpenCV projects.
Target Tracking
SpiderPi can perform image processing through OpenCV to obtain the position of the pellet and track the pellet in real time.
Line Following
SpiderPi can identify black, white, and red lines through OpenCV, and then calculate the position of the color, adjust the walking posture according to the different positions, and realize visual line following.

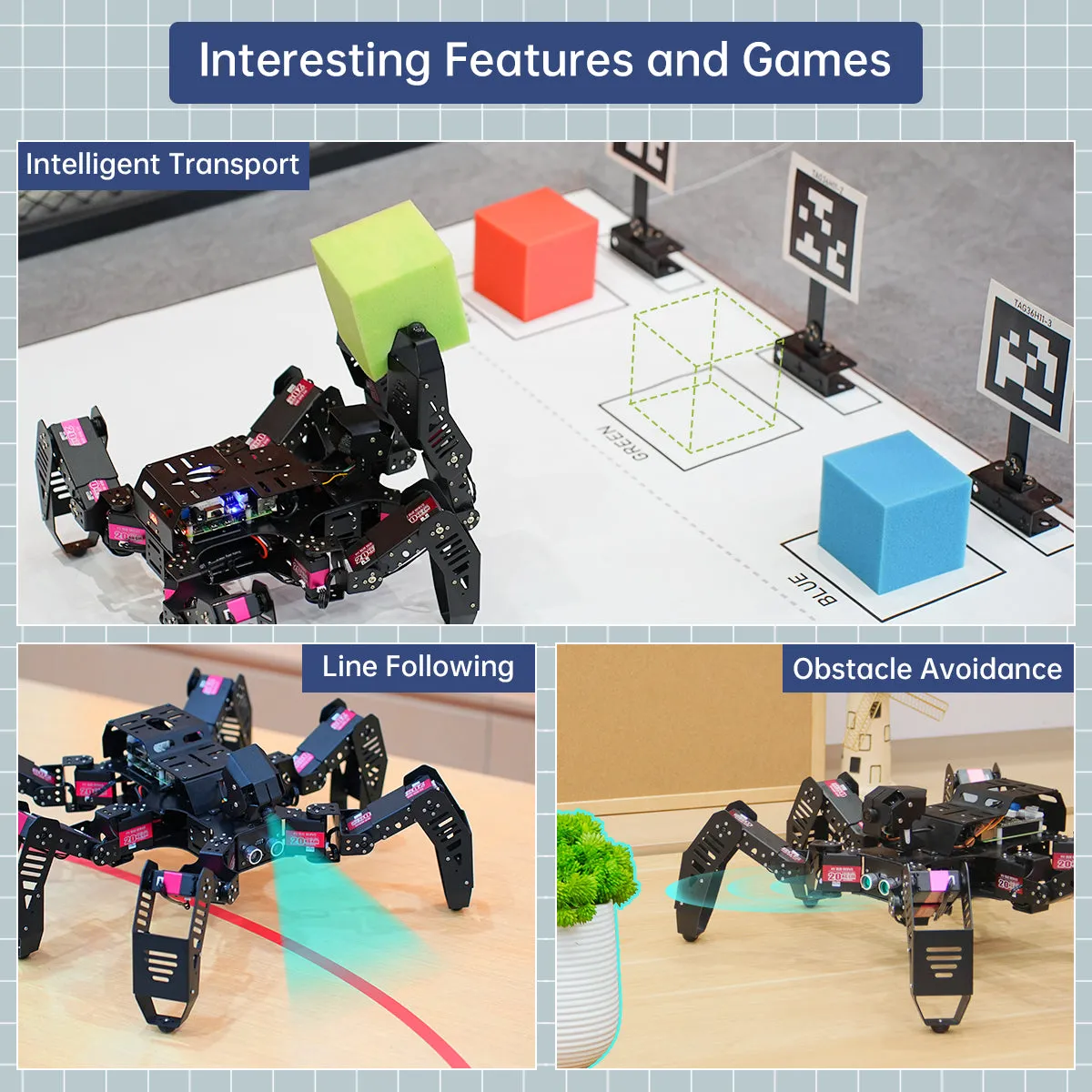

Intelligent Transport
Under the intelligent handling gameplay, SpiderPi can determine the distance of the item through visual recognition, indepen-dently switch the gait according to different distances, and finally move the target item to the designated tag.
Tag Recognition
SpiderPi performs actions according to the recognized tags. In addition to the provided tags, you're encouraged to program your own tags and actions.
Facial Recognition
Use OpenCV to load the trained face detection model. SpiderPi will operate the greeting action when recognizes a face.
LFD-01M Servo Parameters
LX-224HV Servo Parameters

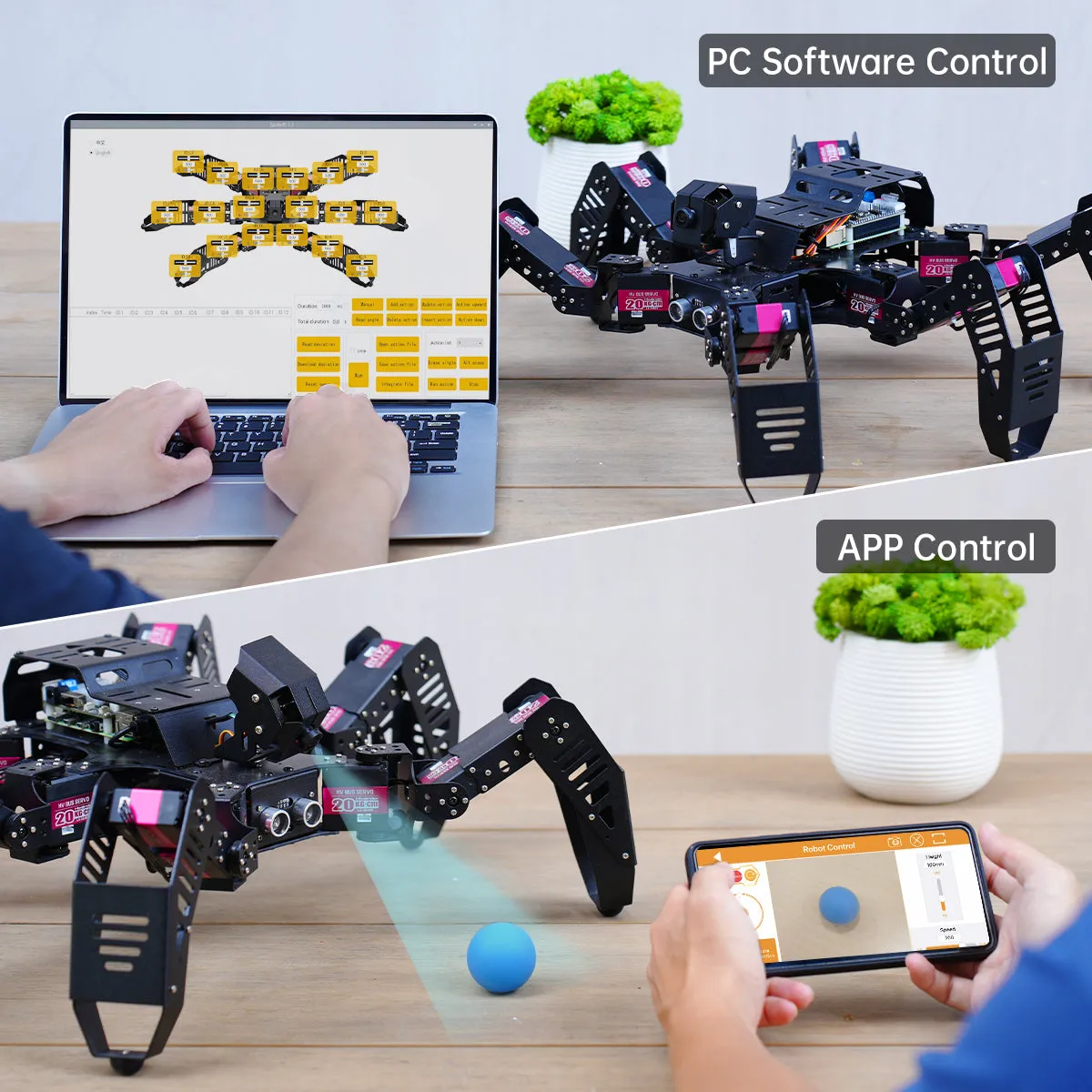

APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.

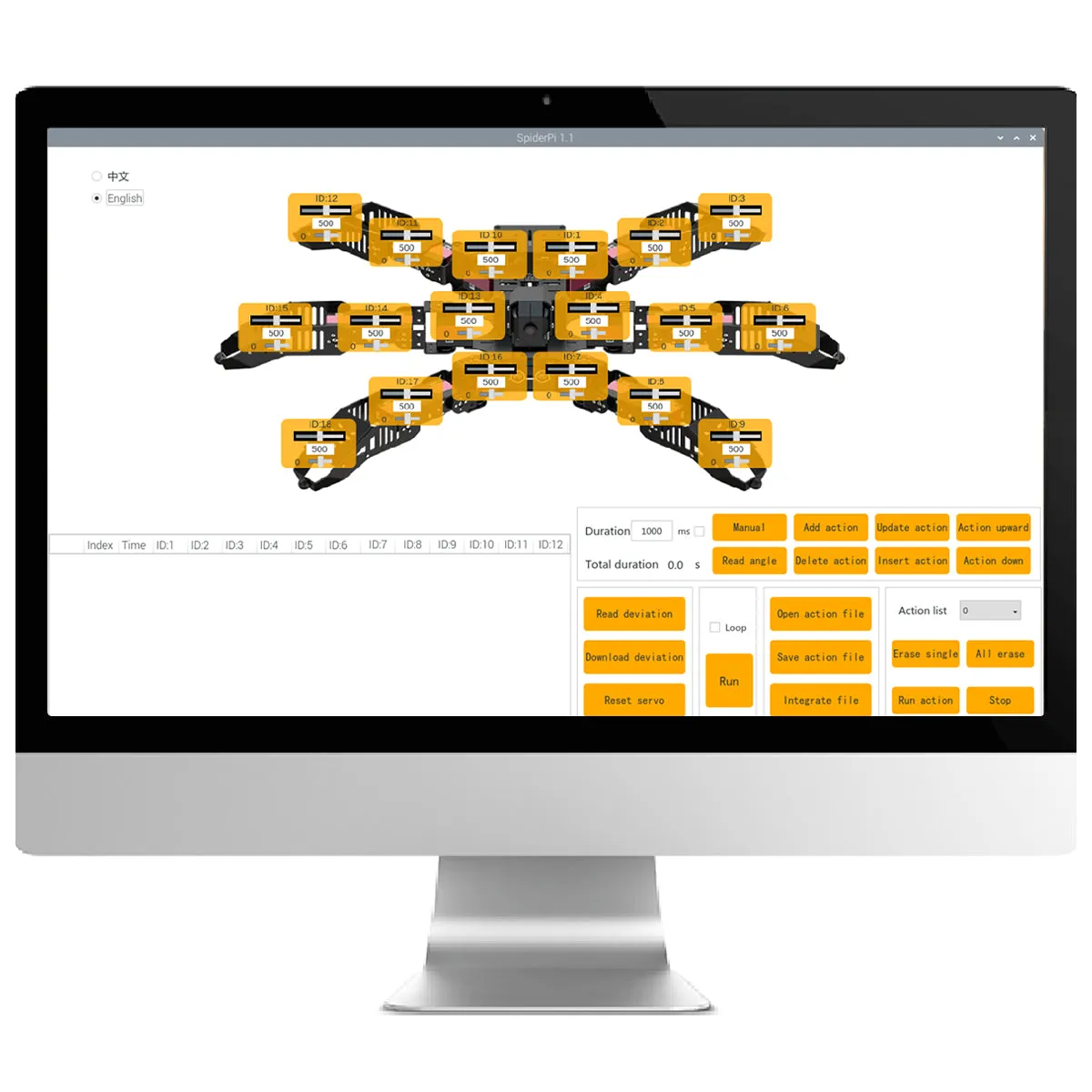

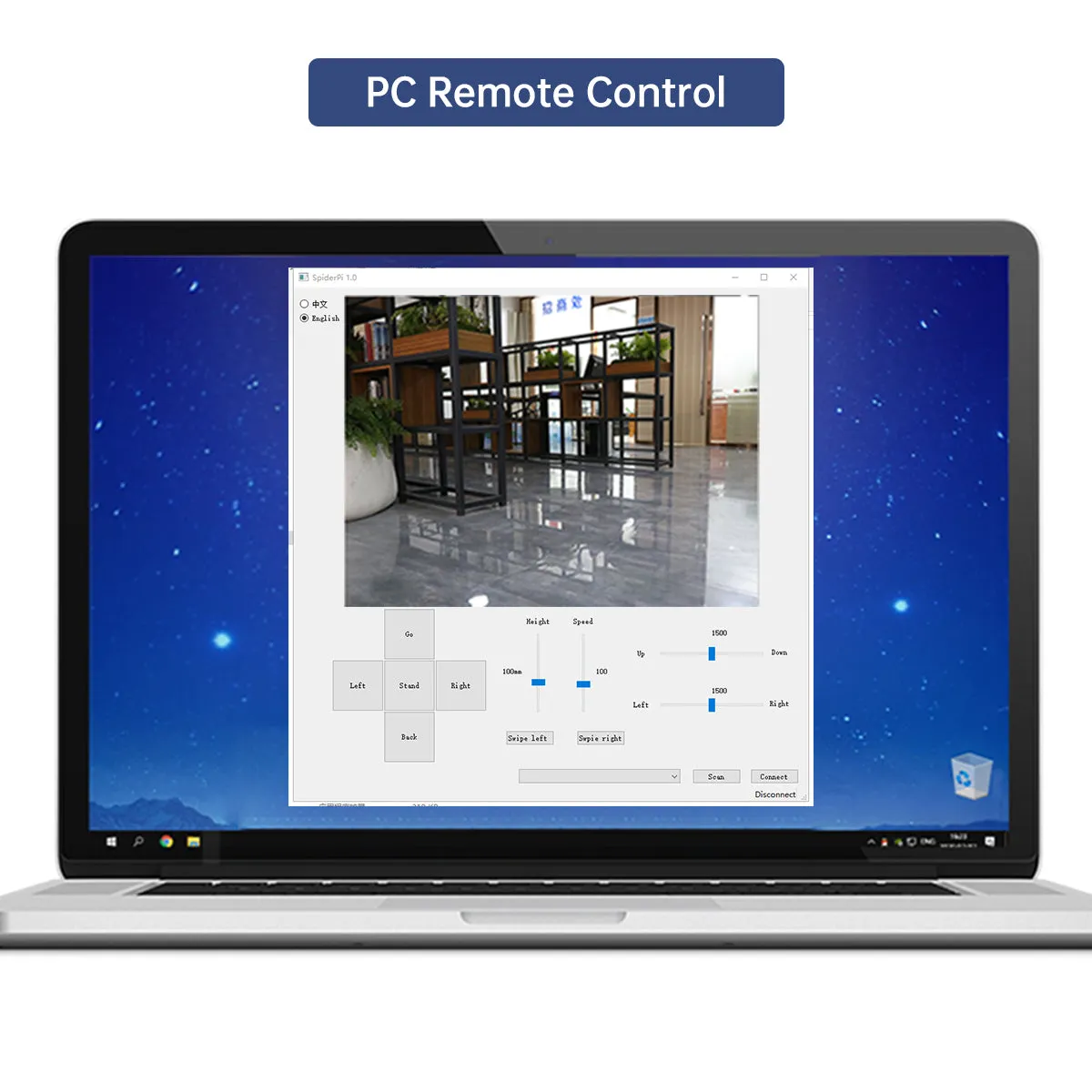

PC Remote Control
We can quickly connect the WonderPi configuration to the wireless LAN, which is more convenient for you to remotely connect and control SpiderPi.
High Voltage Bus Servo
The 20kg.cm 11.1V high-voltage servo has longer service time and less power consumption.
IMU Sensor
The core controller of the robot is equipped with IMU sensors, which can sense the robot's body attitude in real time and detect the direction of travel.
Specification Parameters
| Size: | Refer to the size chart below |
| Weight: | About 2400g |
| Material: | Metal and fiberglass panels |
| Camera pixel: | 480P |
| Ultrasonic distance: | 2~400cm |
| Rotation: | 2 DOF |
| Battery: | 11.1V 2500mAh 10C lithium battery |
| Working hour: | About 60mins |
| Leg | 3DOF (each leg) x6 |
| Hardware: | Raspberry Pi 4B/5 and Raspberry Pi 4B/5 expansion board |
| Software: | APP PC software |
| Communication: | WiFi, Ethernet |
| Servo: | LX-224HV, LFD-01M |
| Package size: | 40*40*17cm |
| Package weight: | About 3.8kg |

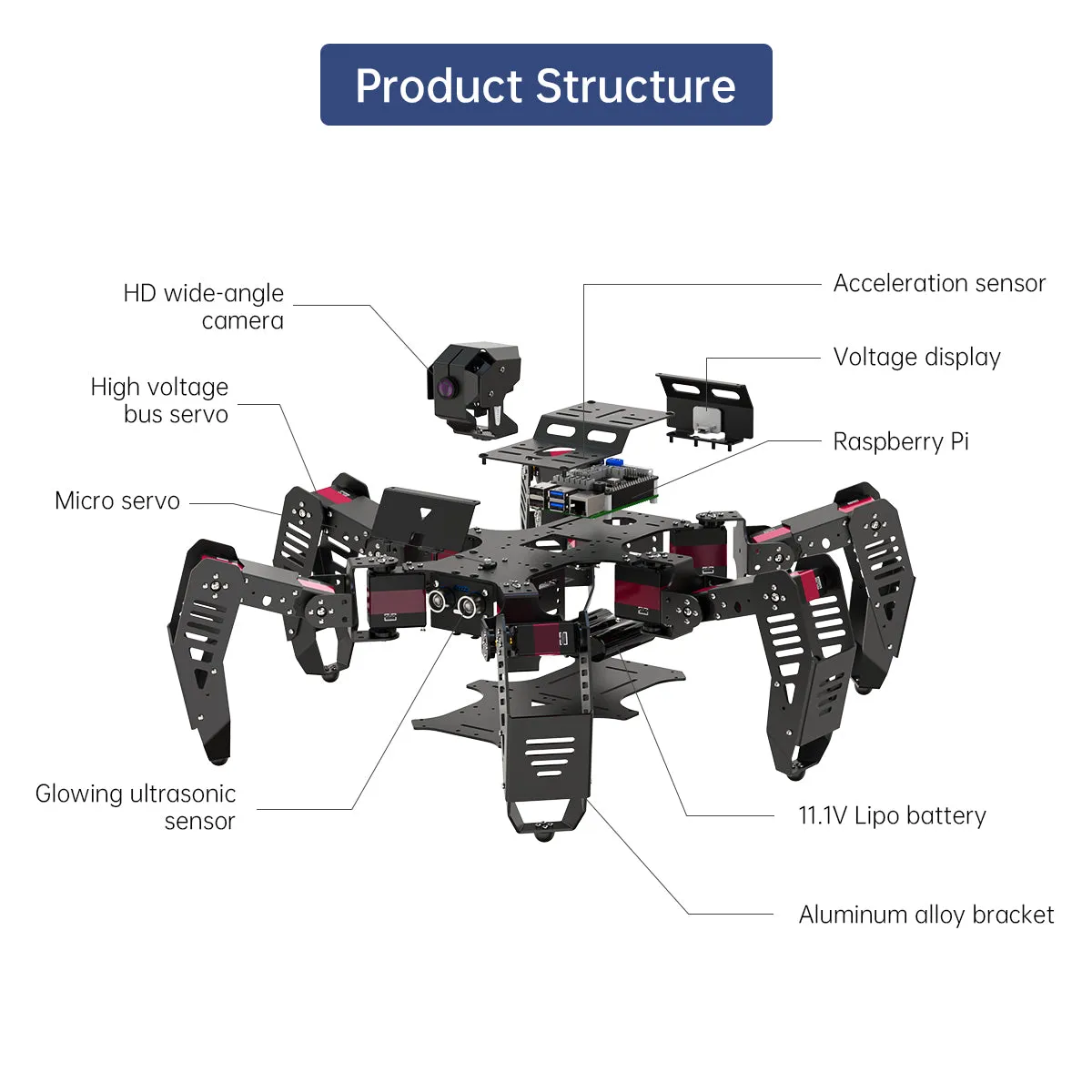

Product Parameters

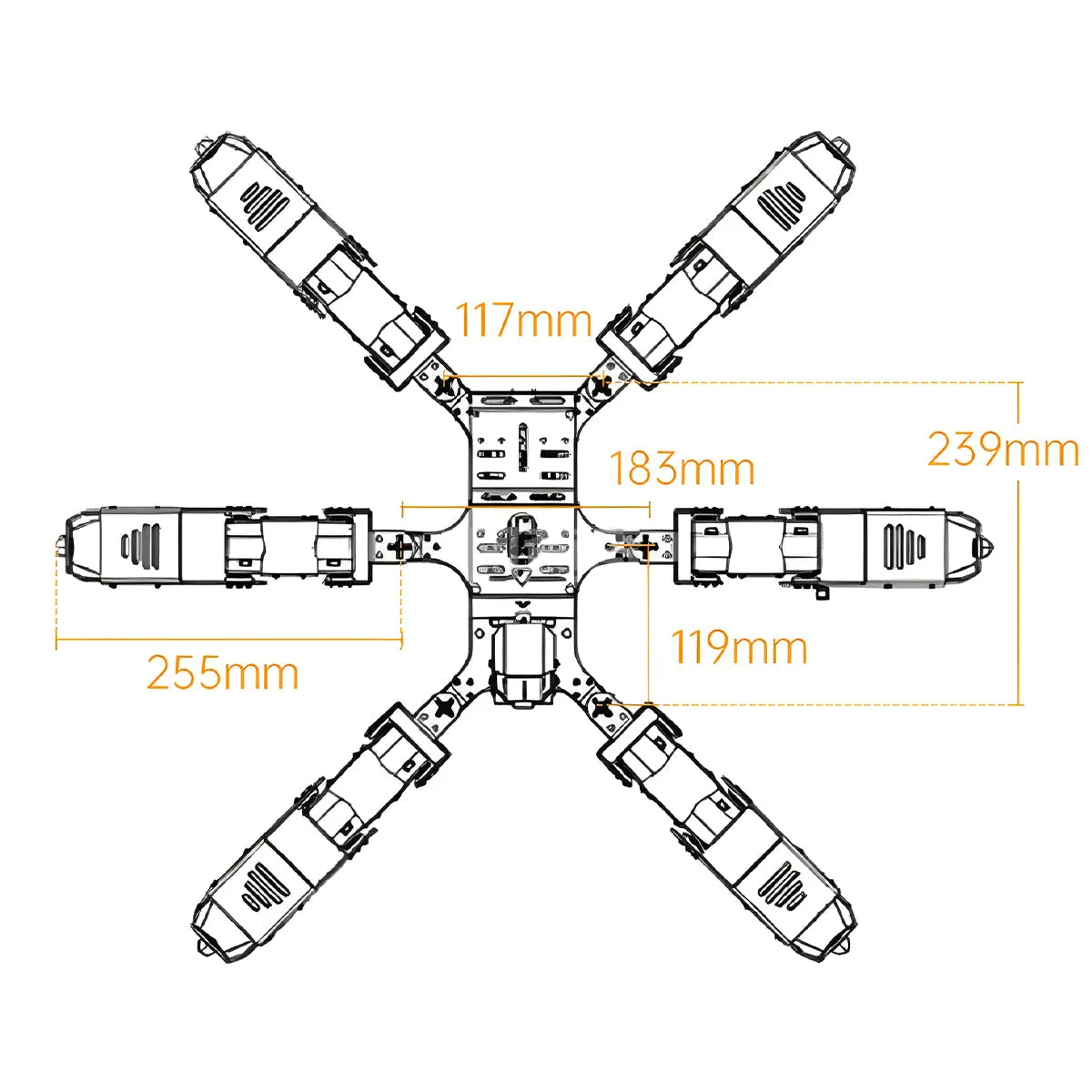

Dimensional Diagram
HD Wide Angle Camera
Course Materials

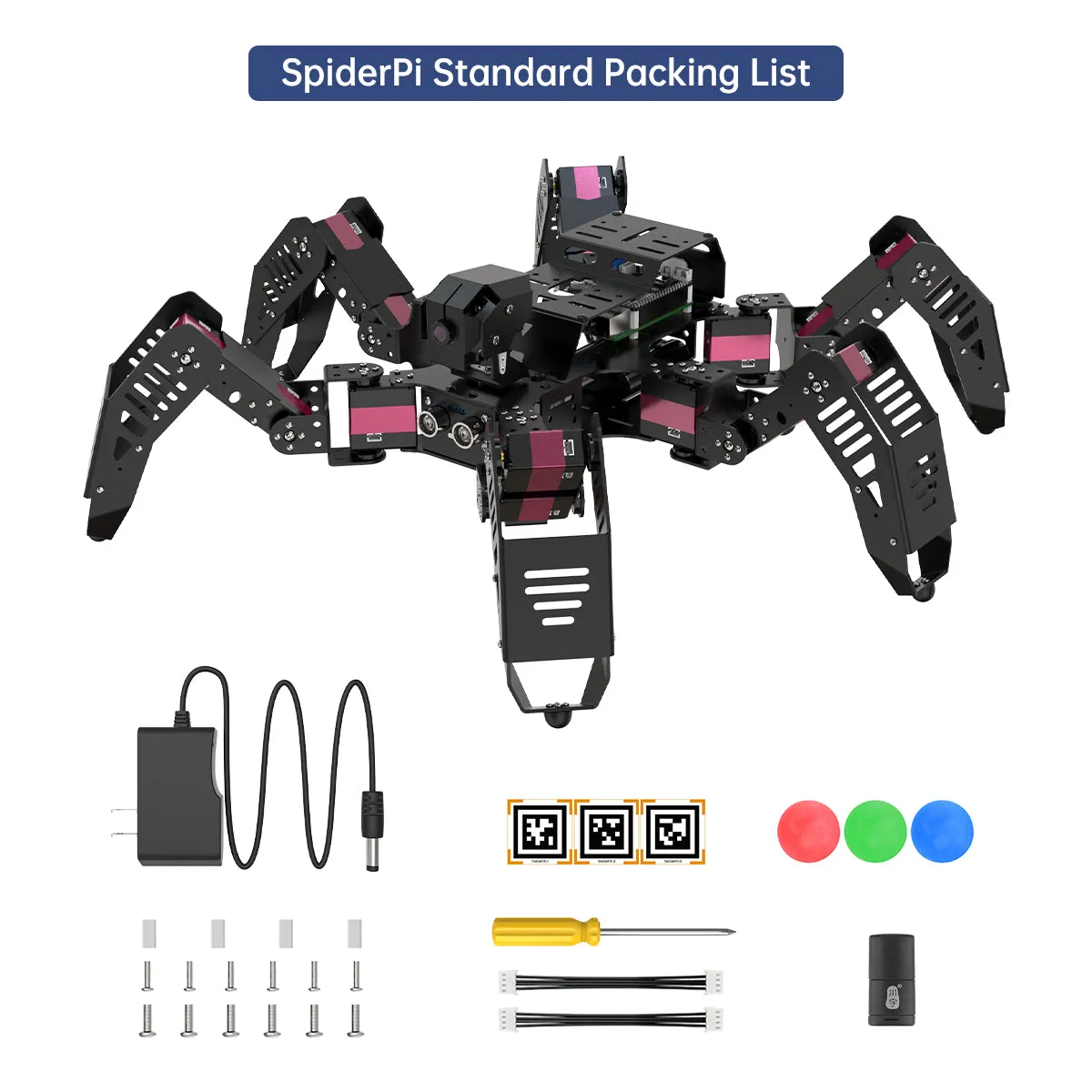

SpiderPi Standard Packing List

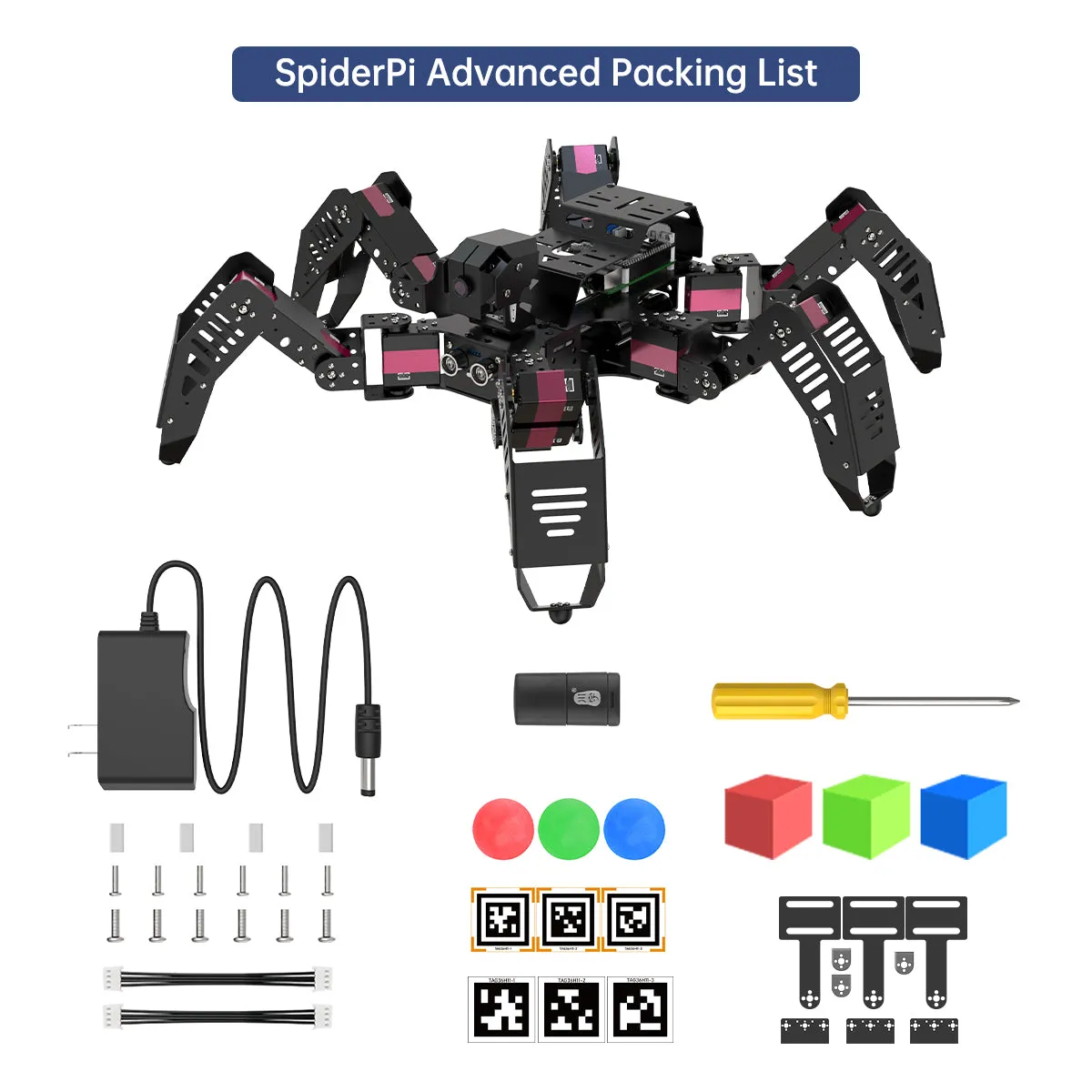

SpiderPi Advanced Packing List
SpiderPi Pro Packing List
Specifications
| Item | Specification |
| Size | Refer to the size chart below |
| Weight | About 2400g |
| Material | Metal and fiberglass panels |
| Camera pixel | 480P |
| Ultrasonic distance | 2~400cm |
| Rotation | 2 DOF |
| Battery | 11.1V1 2500mAh 10C lithium battery |
| Working hour | About 60min |
| Leg | 3DOF (each leg) x6 |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi 4B/5 expansion board |
| Software | APP PC software |
| Communication | Wi-Fi and Ethernet |
| Servo | LX-224HV high voltage, LFD-01M anti-blocking servo |
| Control method | PC software & smart phone APP |
| Shipping size | 40*40*17cm |
| Shipping weight | About 3.8kg |
