Product Details

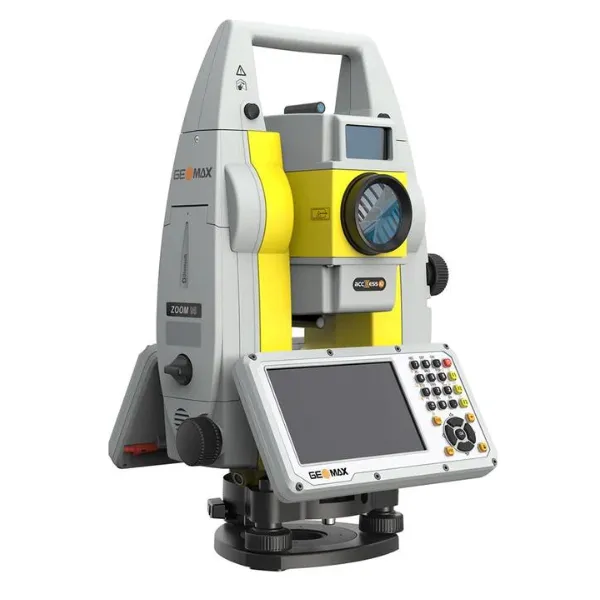

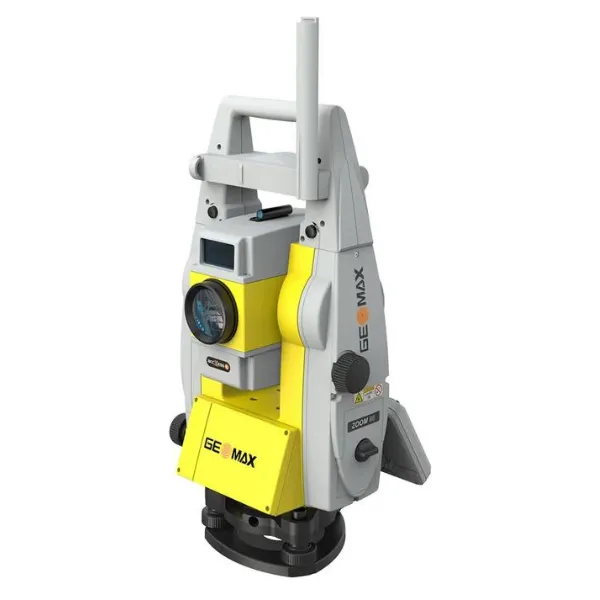

Featuring patented technology, the GeoMax Zoom95 is a great solution for surveyors with high demands. With the Scout function, targets can be located within seconds and locked onto without complex controls. The TRack component allows tracking of even fast-moving targets, while the AiM feature accurately aims at prisms without the need to look through the telescope. Save valuable time with this fully automated setup.

The Zoom95 offers modern data management capabilities to keep up with the demands of your project. Its alphanumeric keypad and 5” VGA touch screen allow for convenient on-site display and editing of CAD drawings, while the powerful processor easily handles large files. Reviewing survey data is quick and effortless with these features. Take advantage of the Zoom95's flexibility and connectivity with the X-PAD field software.

Compatible with third-party field controllers and available on both Windows and Android, users have a wide range of workflow options. The GeoMax Zoom95 Robotic Total Station has efficient navigation and user-friendly features. With great functionality and accuracy, it is designed to streamline work processes.

Utilizing GeoMax's accXess EDM Technology, it can achieve measurements even over long distances (up to 3280 feet) and in challenging conditions, thanks to its small laser spot. The accXess EDM Technology is available in two range options, the A5 (1640 feet/500 meters) and A10 (3280 feet/1000 meters), both with four accuracy options for maximum convenience.

Key Features

Innovative STReAM360 Technology: It simplifies the surveying process with its intuitive scout, track, and aim functionalities.

Scout, Track, and Aim: The Scout feature rapidly scans the area to locate the target, enabling a swift lock without cumbersome controls. The Track component provides continuous tracking of even rapidly moving targets, while the Aim functionality precisely targets any prism automatically, removing the need for manual telescope adjustments.

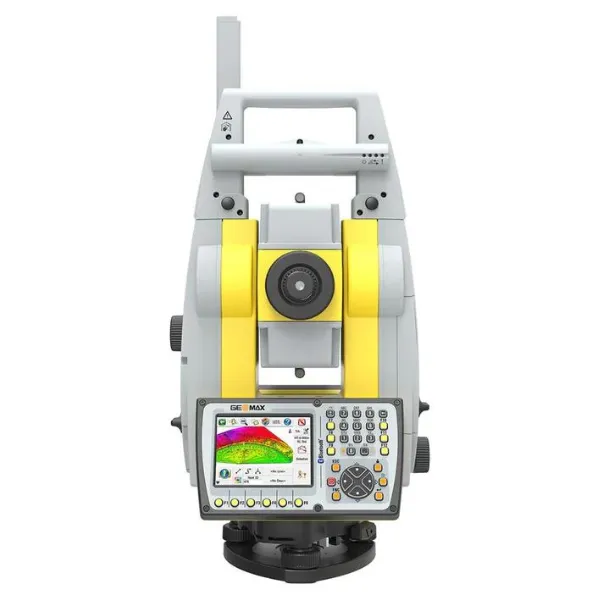

Efficient On-Site Data Handling: Equipped with an alphanumeric keypad and a built-in 5” VGA touch screen, the Zoom95 allows for easy display and editing of CAD drawings directly on-site. Its powerful processor adeptly handles large files, ensuring quick and efficient data review.

X-PAD Field Software Compatibility: The Zoom95's full potential is unlocked with the X-PAD field software, compatible with third-party field controllers and available for both Windows and Android. This flexibility offers surveyors a wide array of workflow options, all within a user-friendly interface.

Accuracy and Range: GeoMax’s accXess EDM Technology provides accuracy over distances, with a measuring range of up to 3280 feet. The technology’s extra small laser spot size provides precise data capture under any condition.

Customizable Range Options: Available in two range options, the A5 (1640 feet/500 meters) and A10 (3280 feet/1000 meters), each with four levels of accuracy, the Zoom95 provides versatility to meet specific surveying requirements.

Specifications

Angle Measurement

  • Accuracy: 5", 3", 2", and 1"
  • Measuring Method/Reading System: Absolute, continuous, diametrical
  • Auto-pointing: 360 Degree Prism

Battery/Power

  • Battery Life: Up to 8 hours
  • Power Source: Removable Li-Ion 4.4 Ah
  • Voltage: 7.4V

Display and Keypad

  • Backlight: LED
  • Keys: 25 keys
  • Pixels: 800 x 480
  • Touchscreen: Yes
  • Type: Full Alphanumeric

Distance Measurement

  • EDM Accuracy (Precision): 8x20 mm at 50 m

General

  • Auto Shut Off: Yes
  • Auto-Tracking Speed: 55 mph at 328 ft (25 m/s at 100 m)
  • Dimensions: 8 x 9 x 13 in (203 x 226 x 328 mm)
  • Guide Light: NavLight
  • Internal Memory: 2 GB
  • Protection Class: IP55 dust and waterproof rating
  • Software: Windows CE 7.0
  • Tribrach: Included
  • Warranty: 1-Year Manufacturer's Warranty
  • Weight: 12.2 lbs (5.5 kg)

Interface

  • Bluetooth: Yes
  • Operating System: Windows CE
  • Pin Port: 6-pin
  • USB: Yes

Laser Plummet

  • Accuracy: 1.5 mm at 1.5 m instrument height
  • Class: Class 2

Laser Pointer

  • Class: Class 3R

Measurement Range (under fair weather conditions)

  • No Prism: 1640 ft (500 m) / 3280 ft (1000m)

Measurement Time

  • Fine: 2.4 sec
  • Rapid: 0.8 sec
  • Tracking: 0.15

Telescope

  • Magnification: 30x

Temperature

  • Operating: -4 to 122°F (-20 to 50°C)
  • Storage: -40 to 158°F (-40 to 70°C)
GeoMax Zoom95 Robotic Total Station
  • Zoom95A101000m5Package
  • Zoom95A101000m3Package
  • Zoom95A101000m2Package
  • Zoom95A101000m1Package
  • Zoom95A5500m5Package
  • Zoom95A5500m3Package
  • Zoom95A5500m2Package
  • Zoom95A5500m1Package
