Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPST-NC |
| Current Rating | 5 A |
| Mounting Type | Chassis Mount |
| Voltage Rating | 100-135 VAC |
Overview

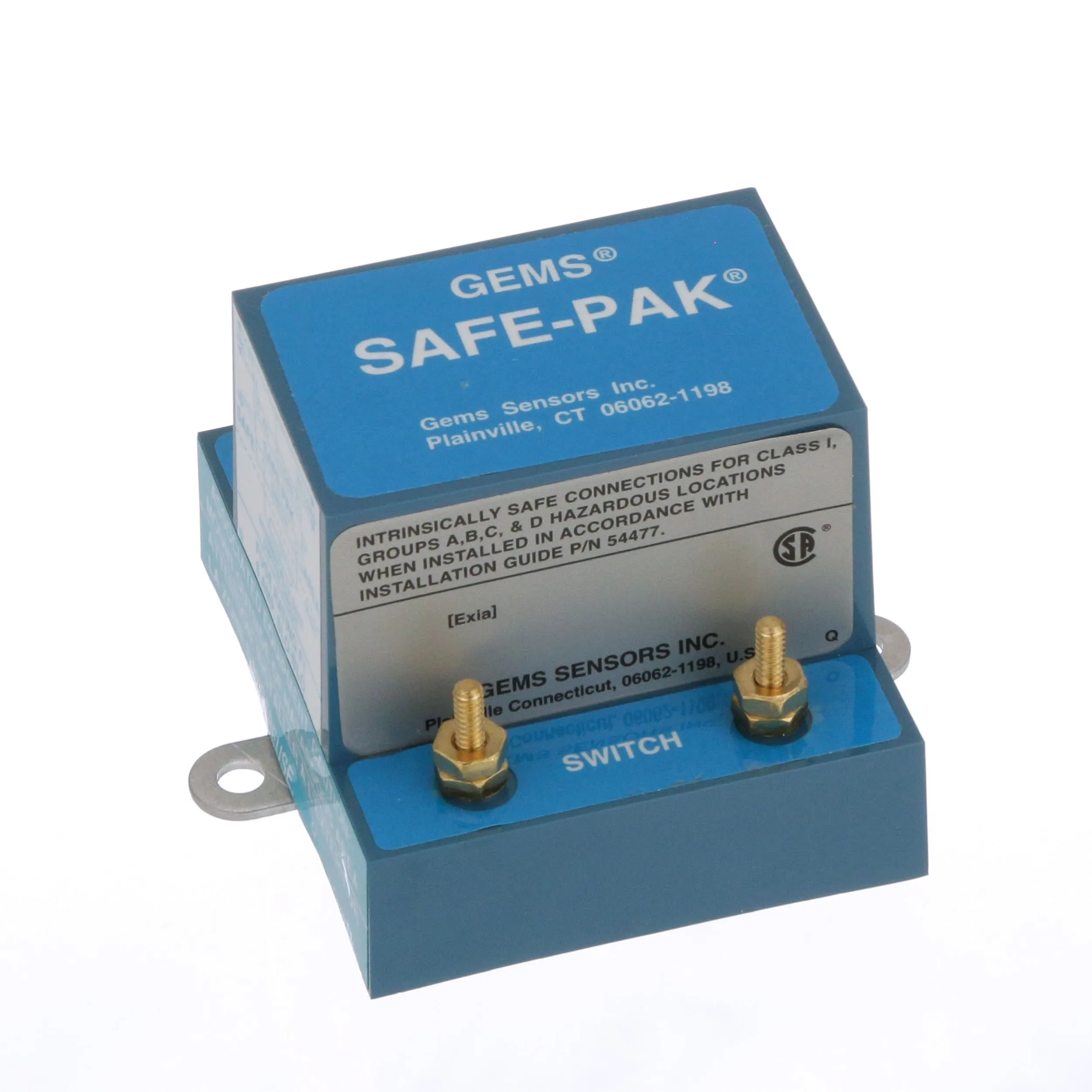

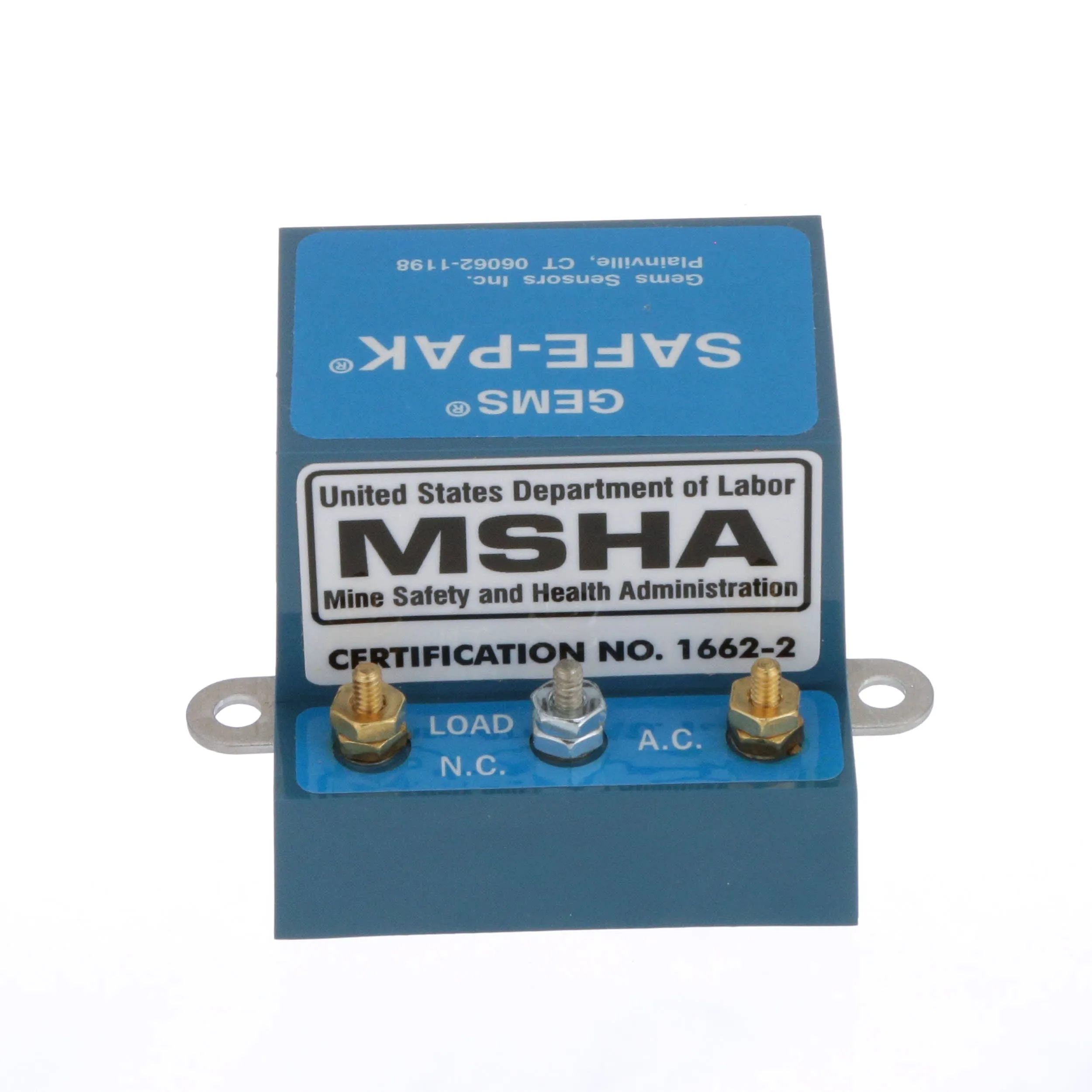

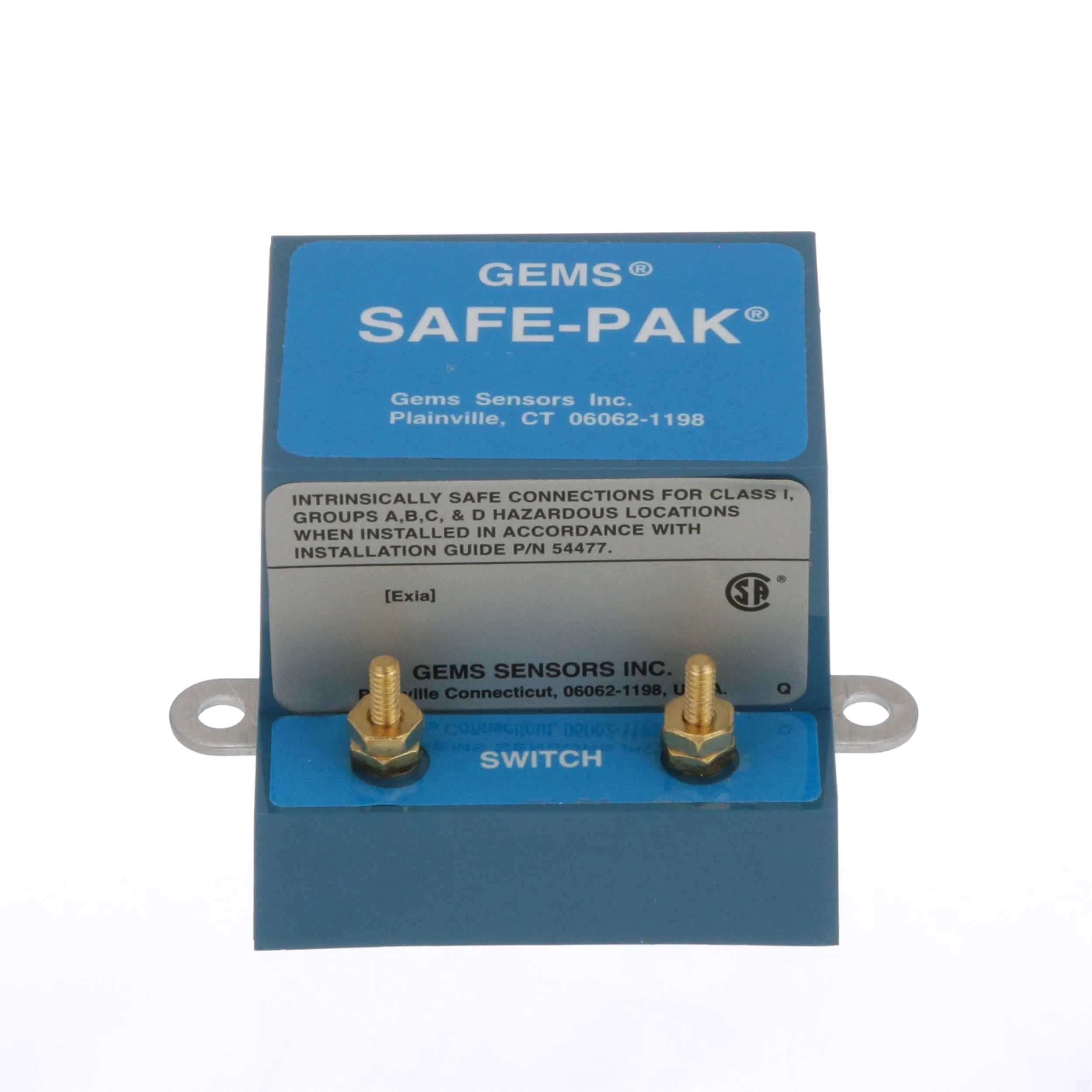

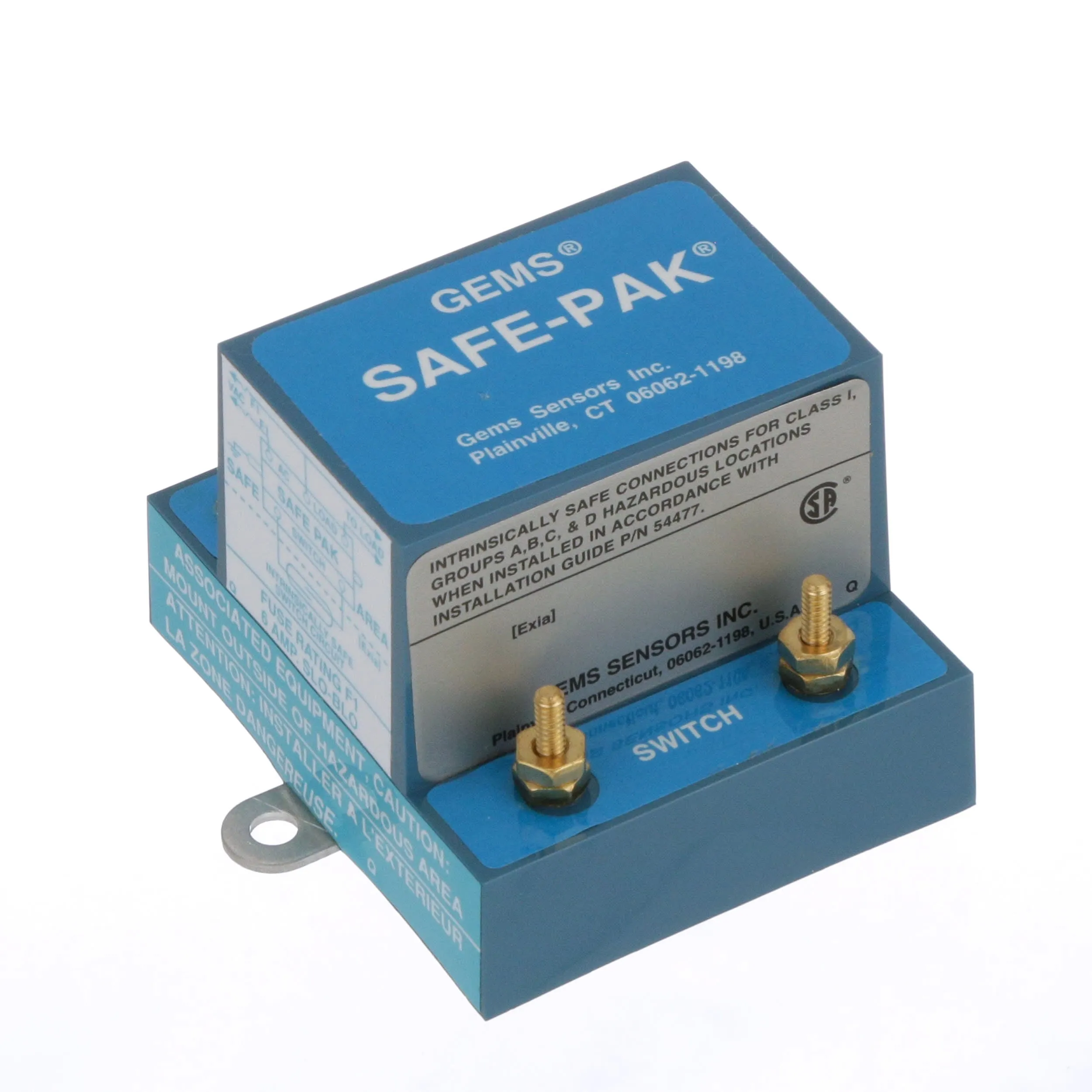

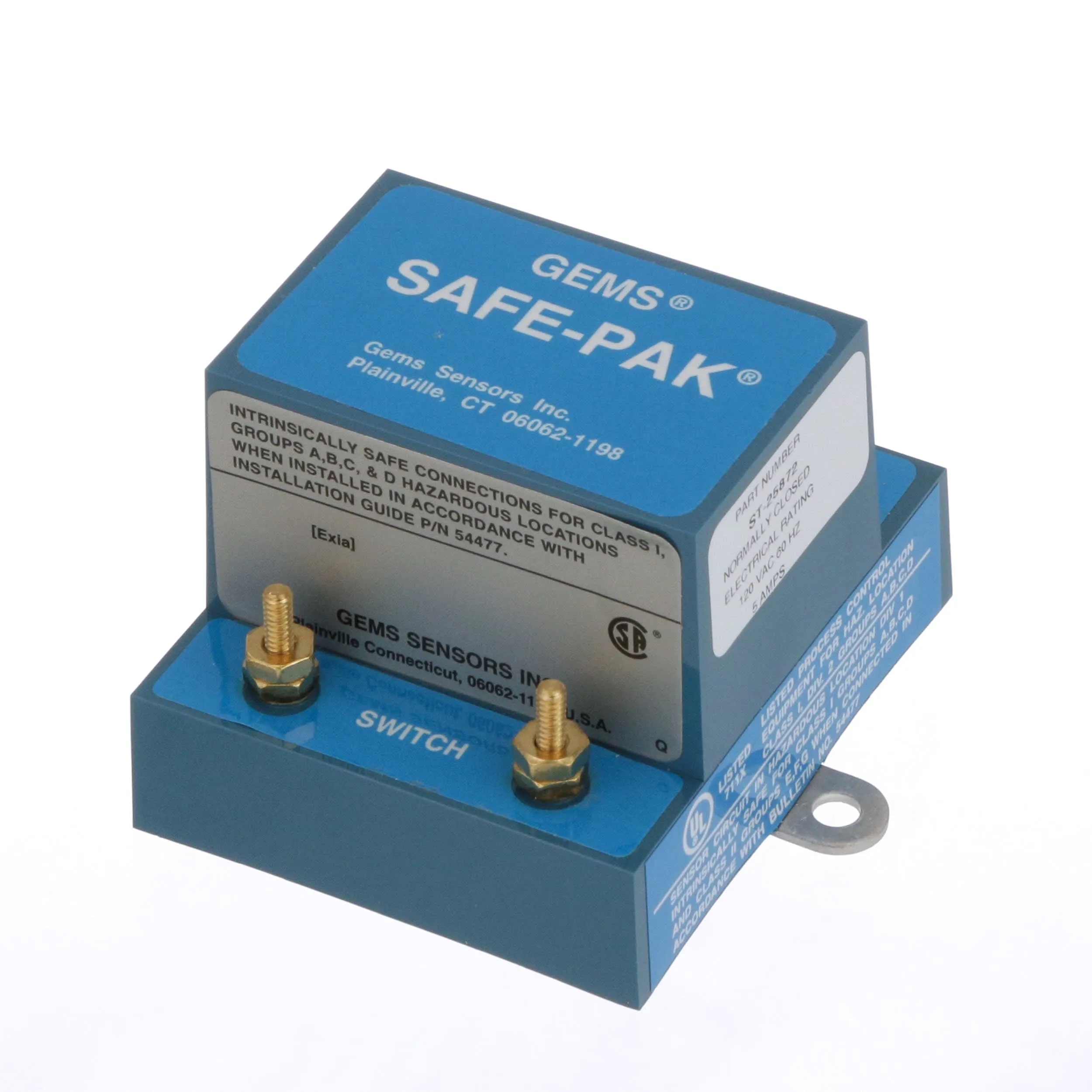

Intrinsically Safe SAFE-PAK® Relays amplify sensor load-handling capabilities. Costly explosion-proof enclosures with their mounting requirements are unnecessary. No purging is required. SAFE-PAK: Less than 100 microamps at 9 VDC actuates the unit to control loads to 5A at 120 VAC. Resistive (up to 100,000Ω ) or short-circuiting sensors operate the unit. 120 VAC and 240 VAC model.
