Description

Boosted Plant Yields: Engineered with precisely positioned Samsung LM301B diodes to extract maximum growth potential across all plant stages, ensuring a thriving grow space.

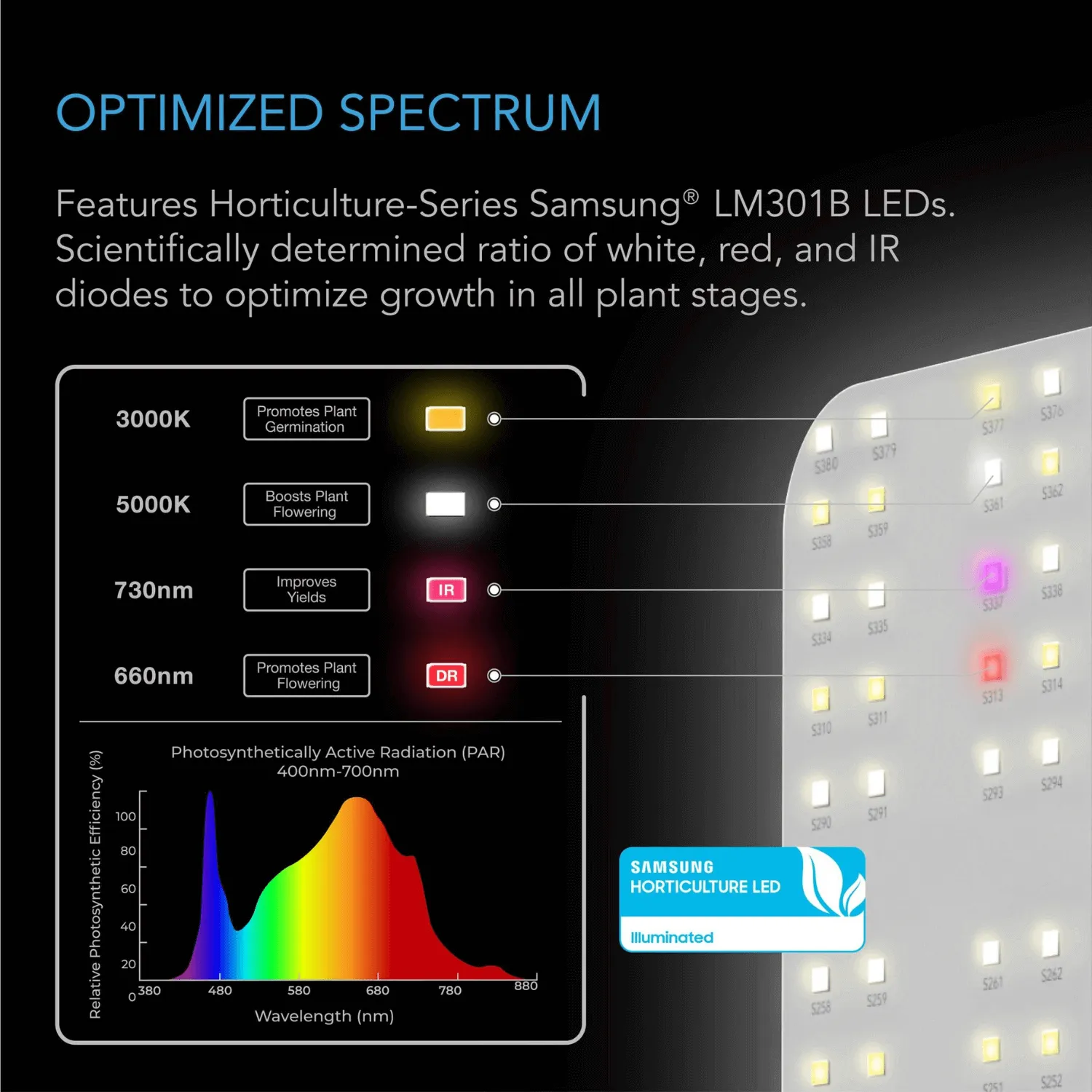

Advanced Spectrum Efficiency: Boasting a meticulously crafted blend of Horticulture-Series Samsung LM301B white, red, and IR LEDs, it ensures a spectrum that is tailored to support your plant's lifecycle, from seed to harvest.

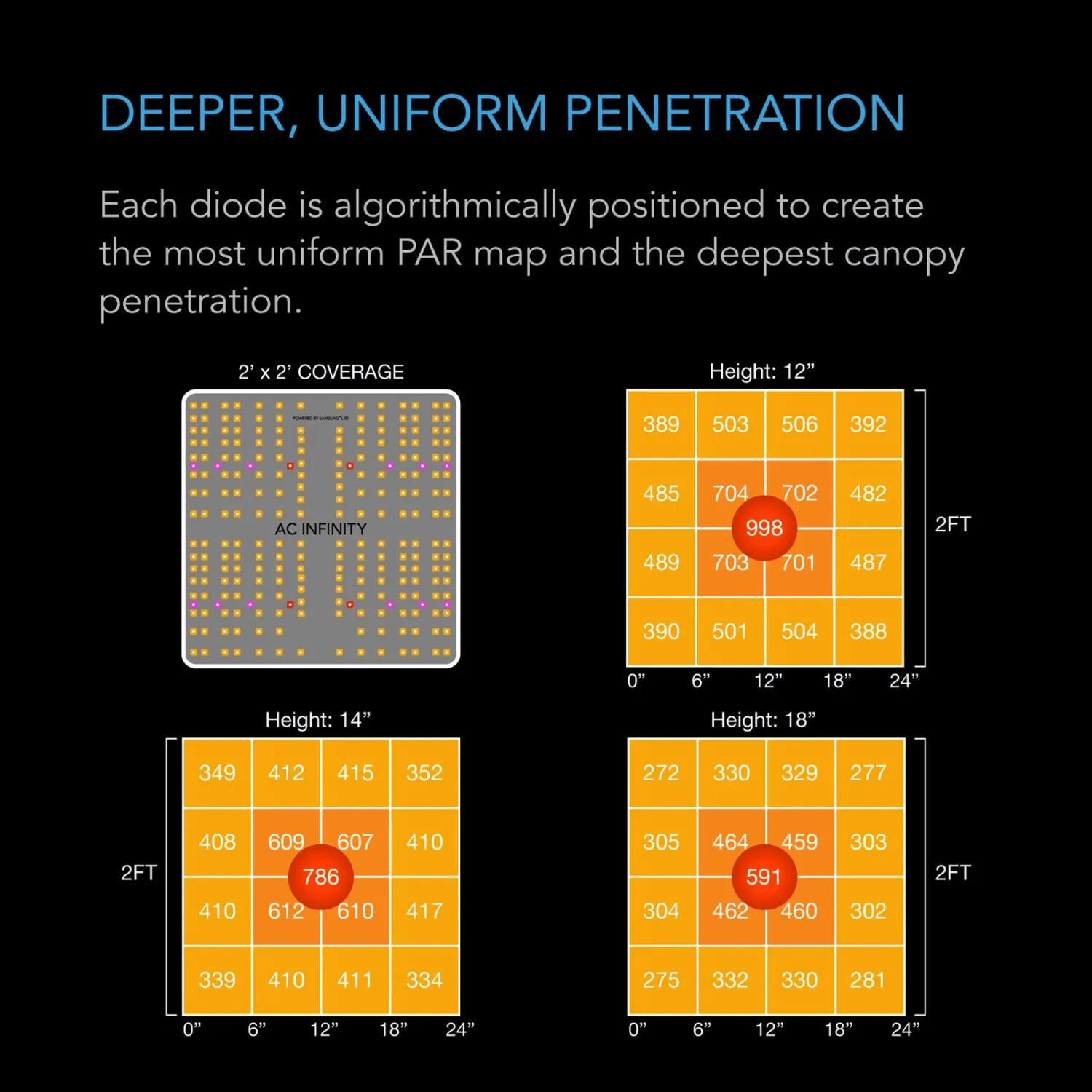

Uniform Growth: The advanced algorithmic diode placement creates an even PAR map coverage and an unparalleled canopy penetration, ensuring consistency and uniform growth throughout the cultivation area.

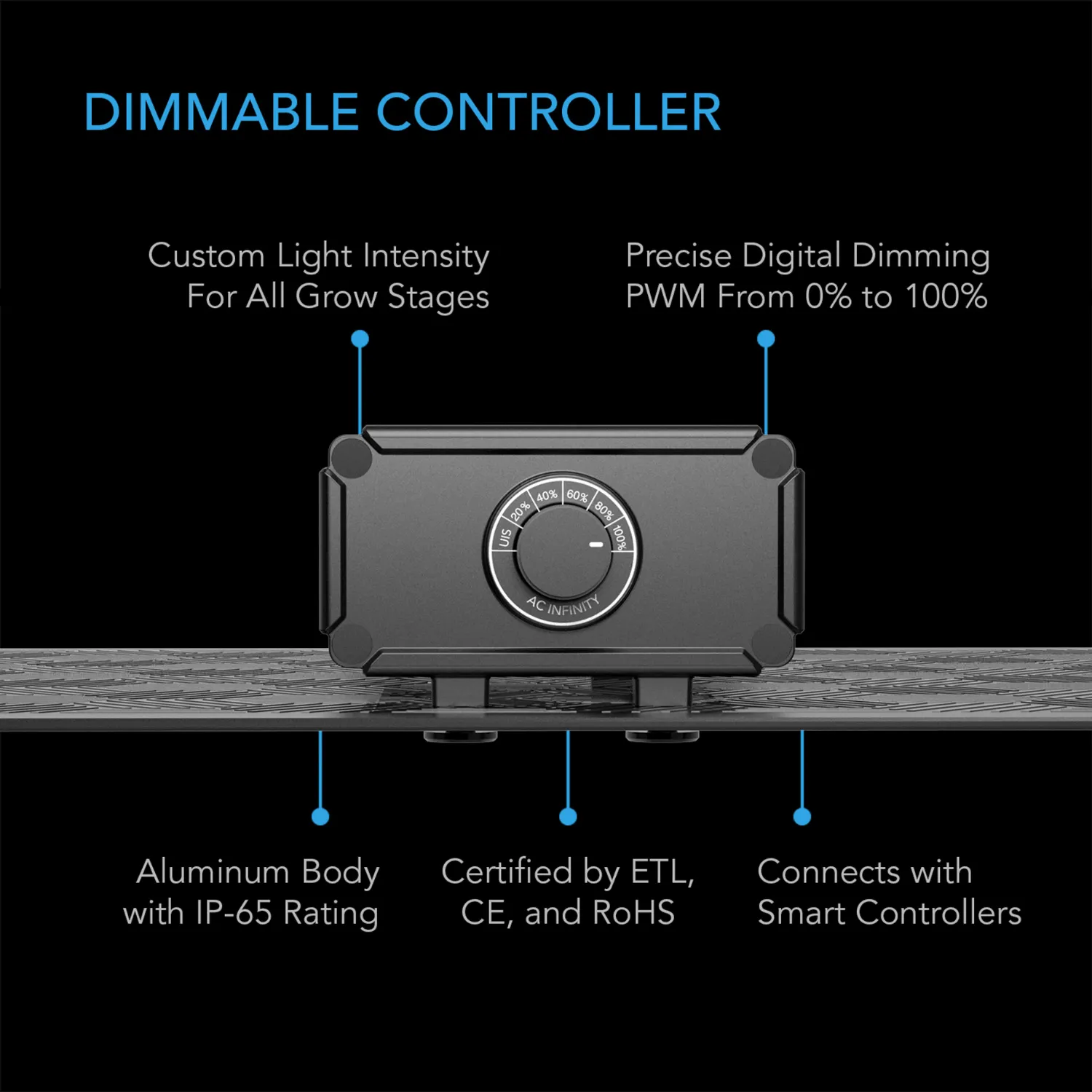

Adaptable Brightness Control: The dimmer facilitates adjustment of light intensity, spanning from 0 to 100%, ensuring the perfect environment for your plants during different growth phases.

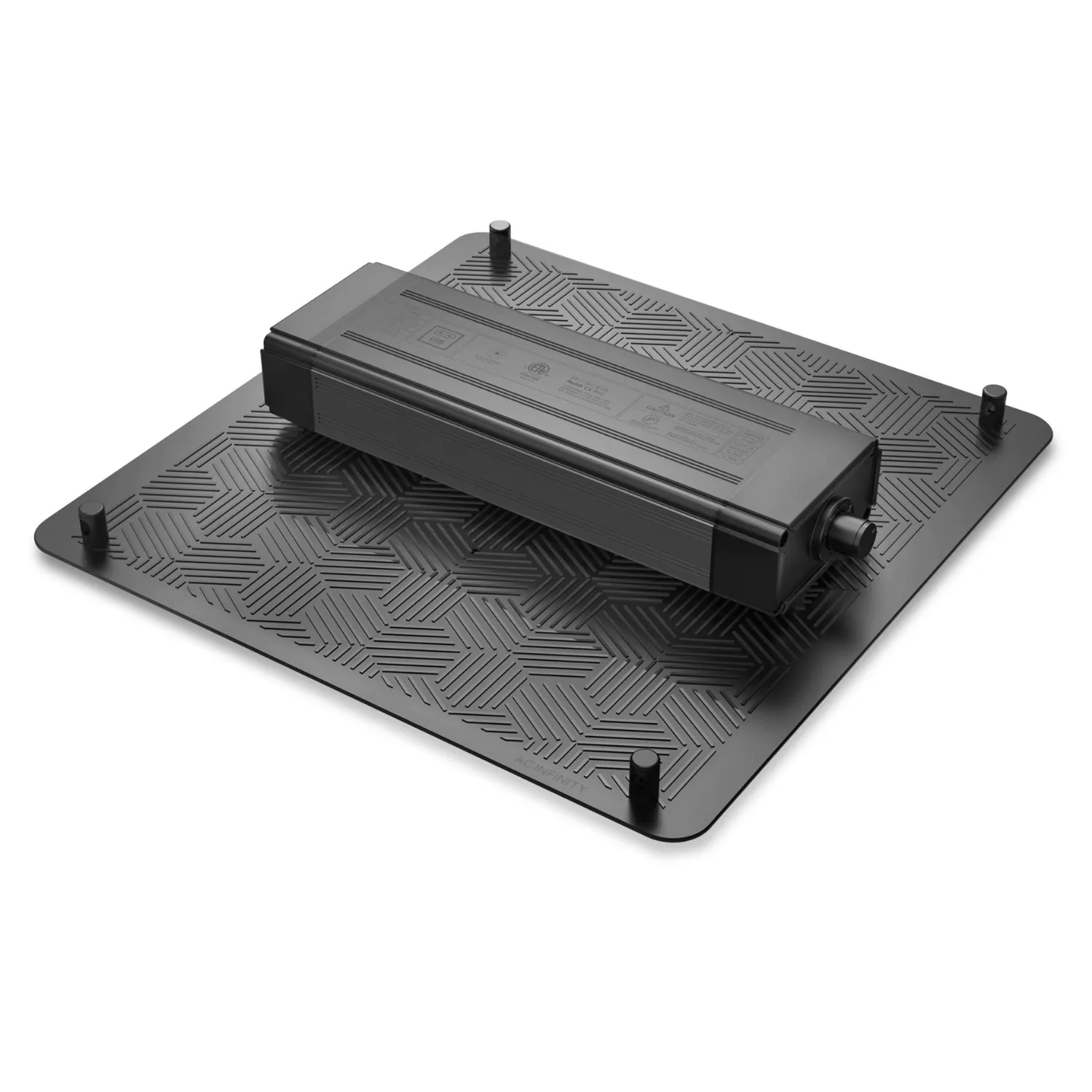

Durability Meets Design: Crafted with a fanless unibody aluminum board, it offers an efficient heat dispersion mechanism. The IP-65 sealing ensures longevity even in challenging humid and warm grow environments.

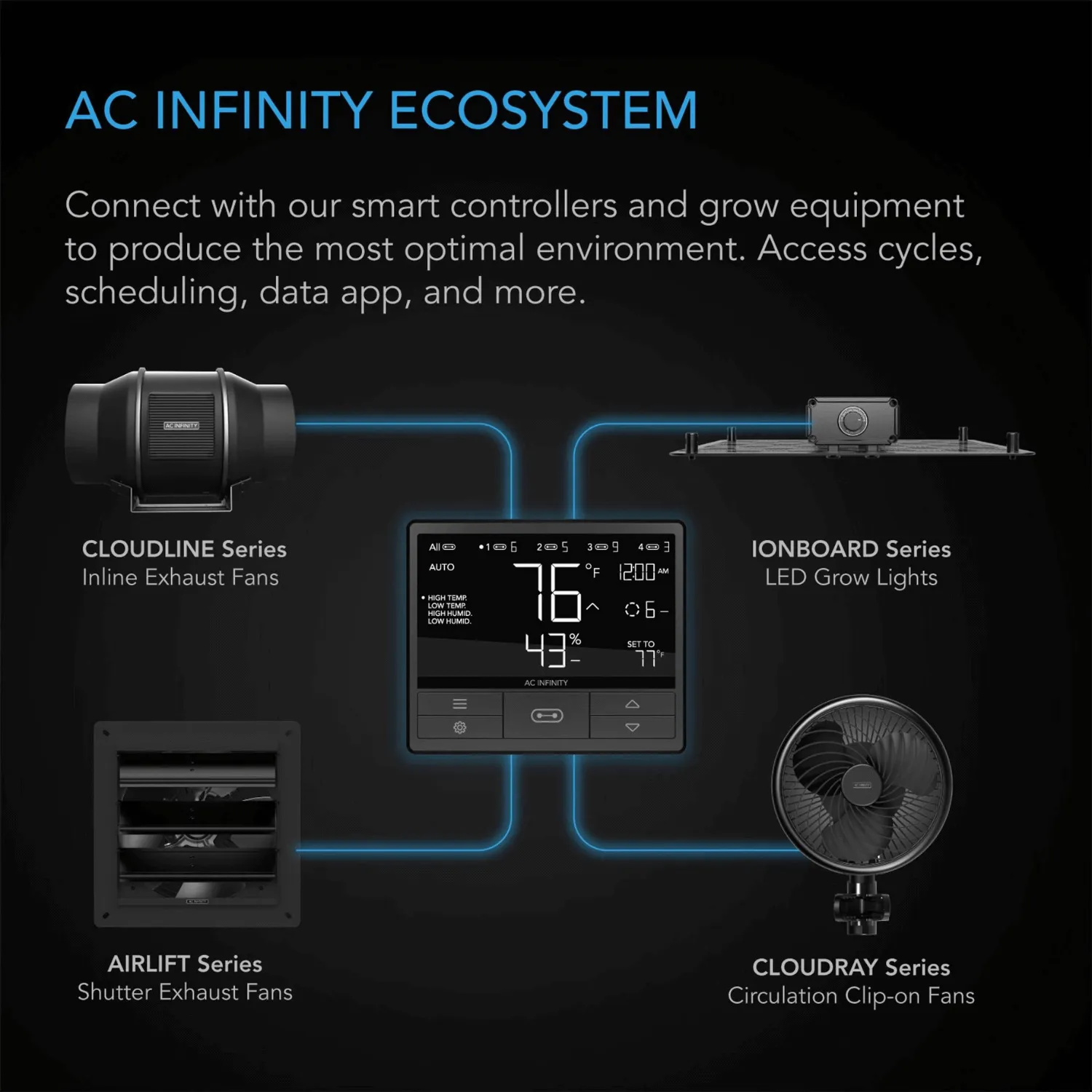

Integration at its Best: The grow light seamlessly connects with our smart controllers, opening doors to advanced features like grow cycles, scheduling, and app controls. This integration is a part of the broader UIS™ platform, ensuring a harmonious grow environment.

User-Friendly Set-Up: The package includes both metal bar hangers and rope hangers, providing flexibility in installation and positioning according to the grow space requirements.

Why Choose This LED Grow Light?

Best-in-Class Diodes: Harness the power of top-grade Samsung LM301B diodes, known for their efficiency and superior light quality, promoting robust plant growth and health.

Optimized for All Growth Phases: Whether it's the germination, vegetative, or flowering stage, the light's specialized full spectrum ensures optimal growth rates throughout the plant's lifecycle.

Energy-Efficient Design: Designed to run cooler without compromising on light output, this fixture maximizes energy efficiency, resulting in savings on electricity bills.

Ready for Future Expansions: With the capability to daisy chain and connect to other grow equipment, this LED light is future-ready, allowing for easy integration as you expand your grow setup.

Reliability You Can Trust: Built to last and perform in humid and warm conditions, this light ensures consistent performance for prolonged periods, making it a trusty companion in your cultivation journey.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: IONBOARD S22

Product Model: AC-IBS22

UPC Code: 819137022515

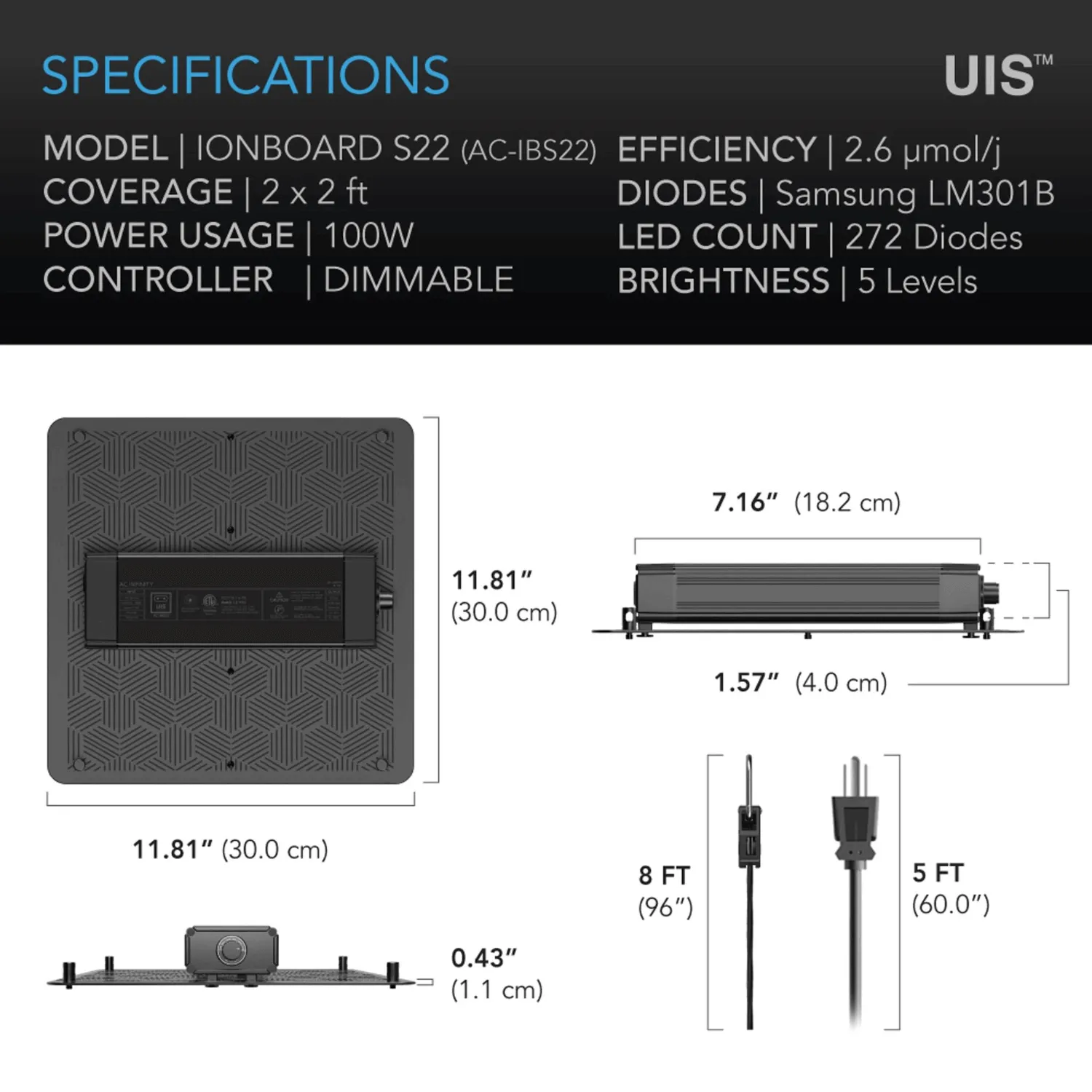

Product and Mounting Dimensions

Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)

LED Board Thickness: 0.43 in. (1.1 cm)

Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

Product Performance and Technical Specs

Coverage: 2 x 2 ft.

Diodes: Samsung LM301B

LED Chip Count: 272

LED Driver: AC Infinity Proprietary Driver, Model GTS-100

Efficiency: 2.7 umol/j

PPFD: 998 PPFD

Spectrum: 660nm, 730nm, 3000K, 5000K

Wattage: 100 W

Voltage: 100-277V AC

Frequency: 50/60 Hz

Amps: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V

Controller: Digital Dimming Timer

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Life Expectancy: 50,000 Hours

Data Sheets

Download the data sheet:

Download the ETL Certification:
