Description

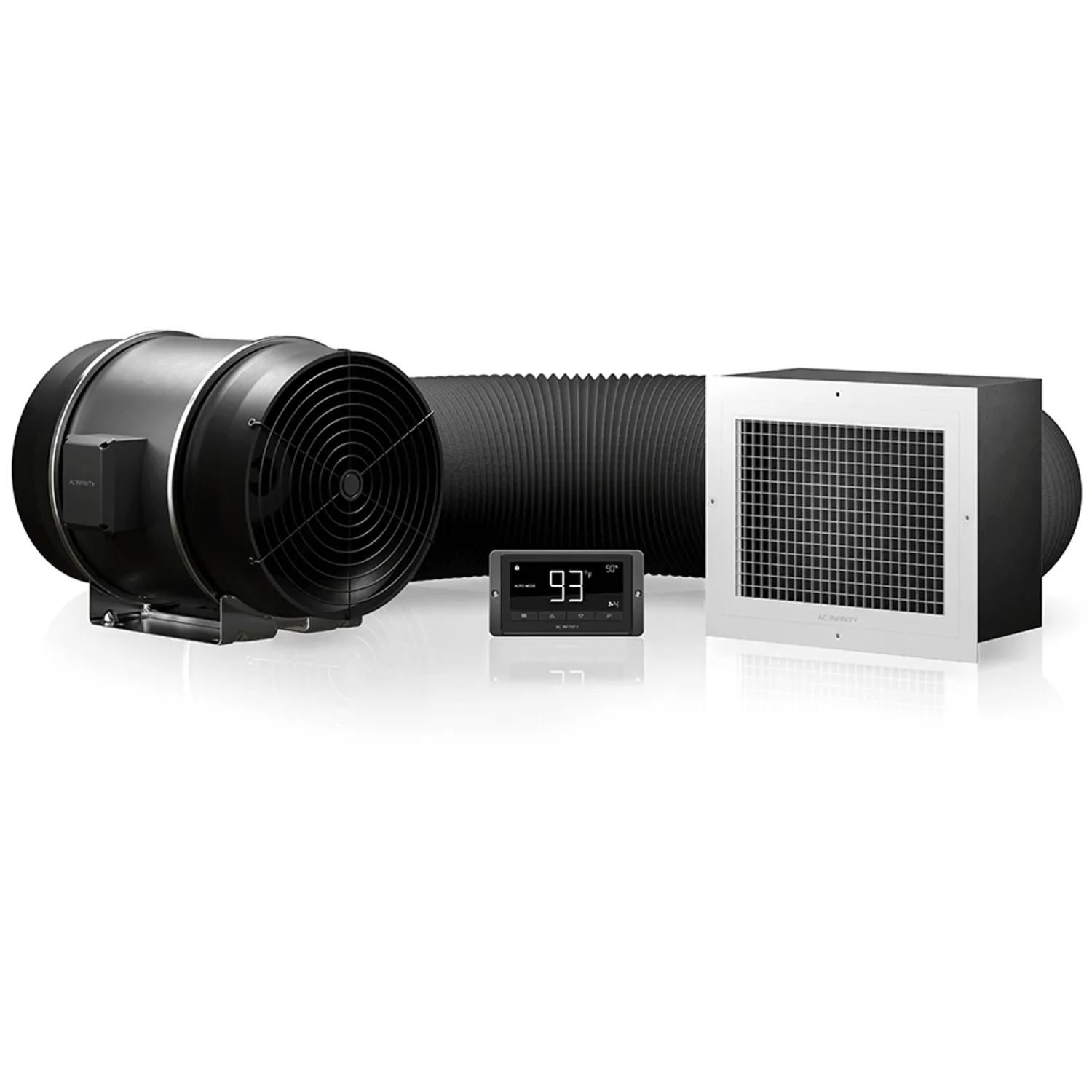

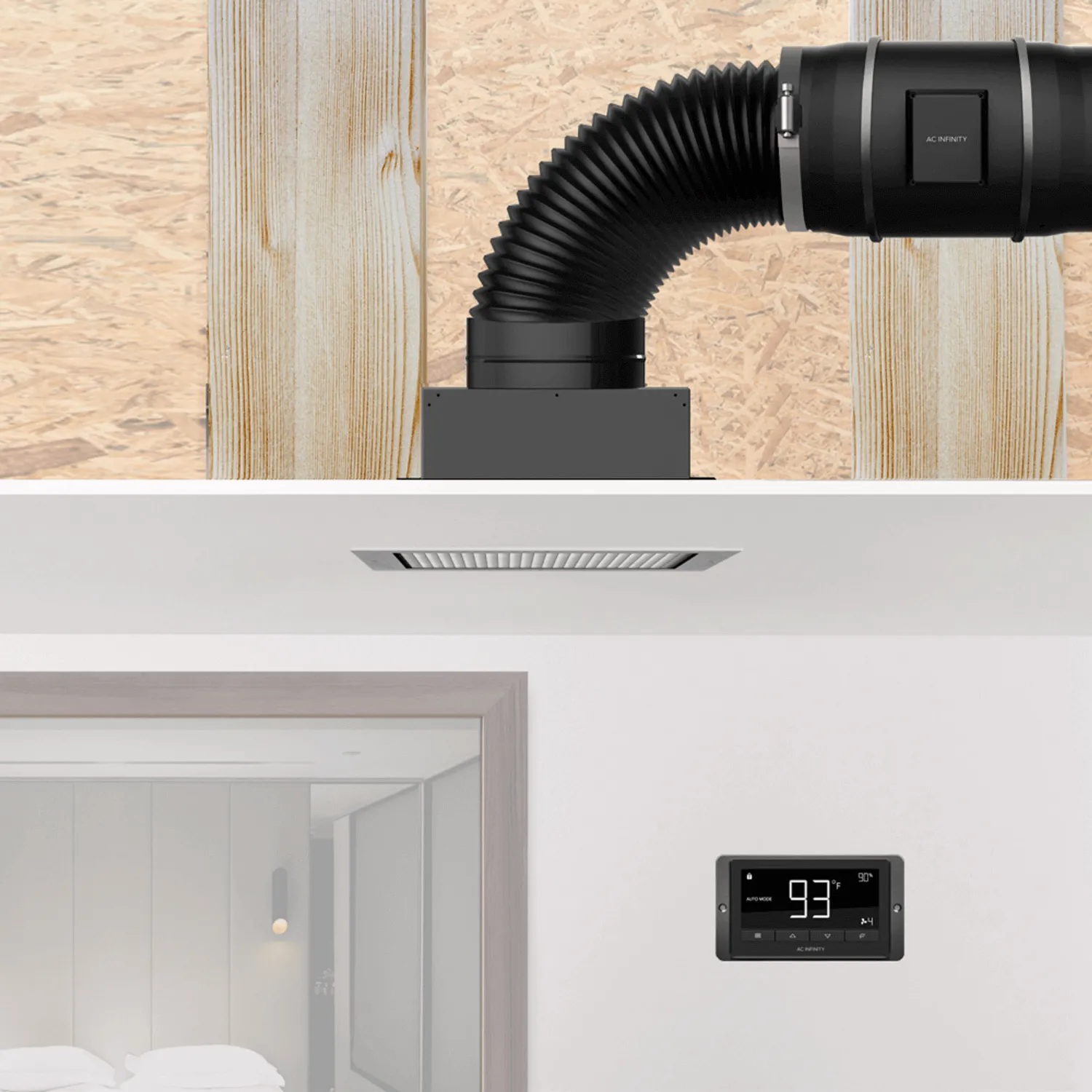

Whole House Attic Fan: Specially designed for cooling and ventilating entire homes by eliminating hot air from indoor spaces. This system uses a smart digital controller with functions for temperature and humidity trigger programming, fan speed control, timers, and alerts. Also, it is equipped with an EC motor that's PWM-controlled, ensuring quieter and more energy-efficient operation than most comparable products.

Features: The fan system comes with 2-door shutters enhanced with a damper that blocks attic air from entering your living spaces when the fan is not in use. The duct size is 12 inches, and the unit has dimensions of 12.3 x 17.7 x 14.1 inches. It provides an airflow of 1604 CFM with a noise level of only 62 dBA. Dual ball bearings are used for durability and performance.

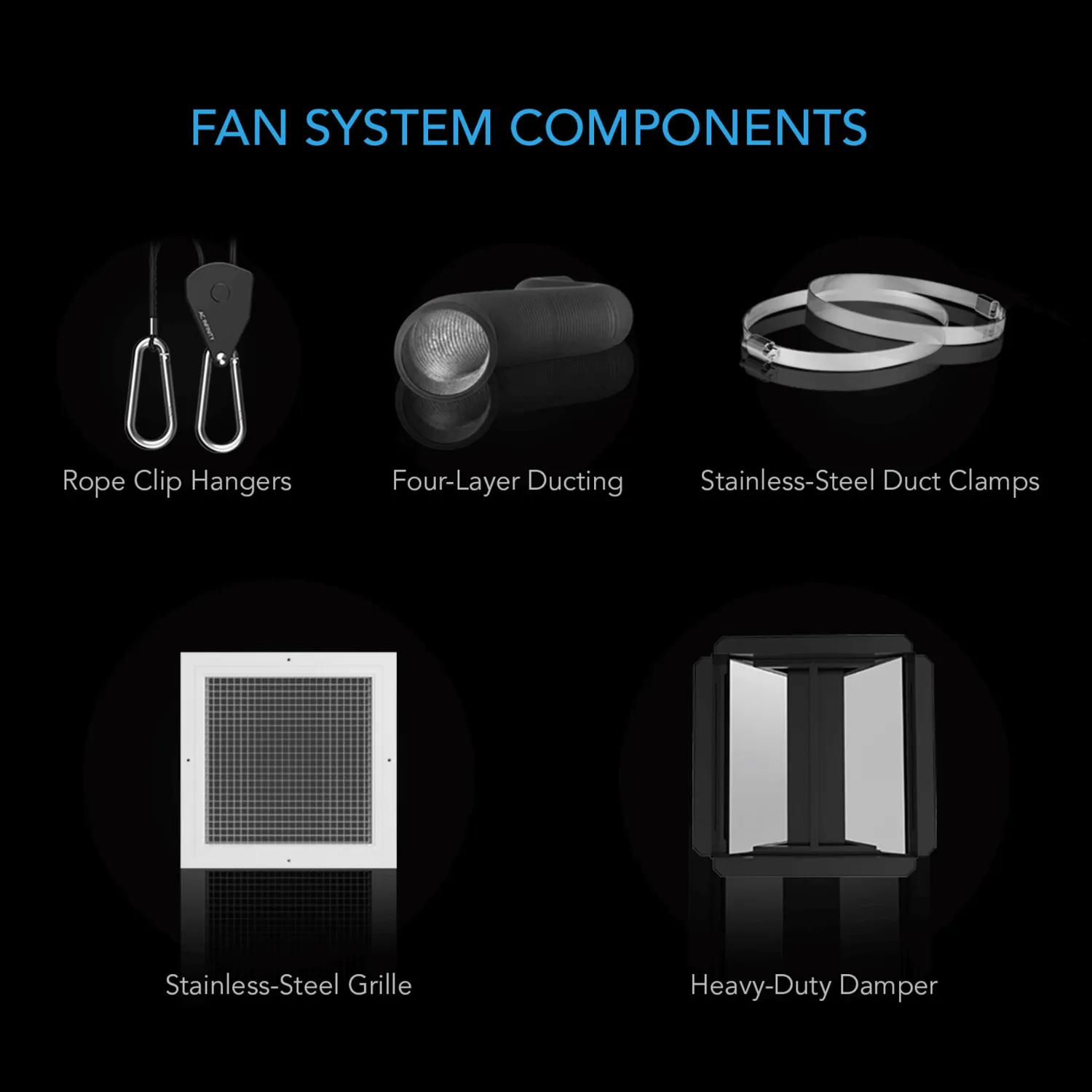

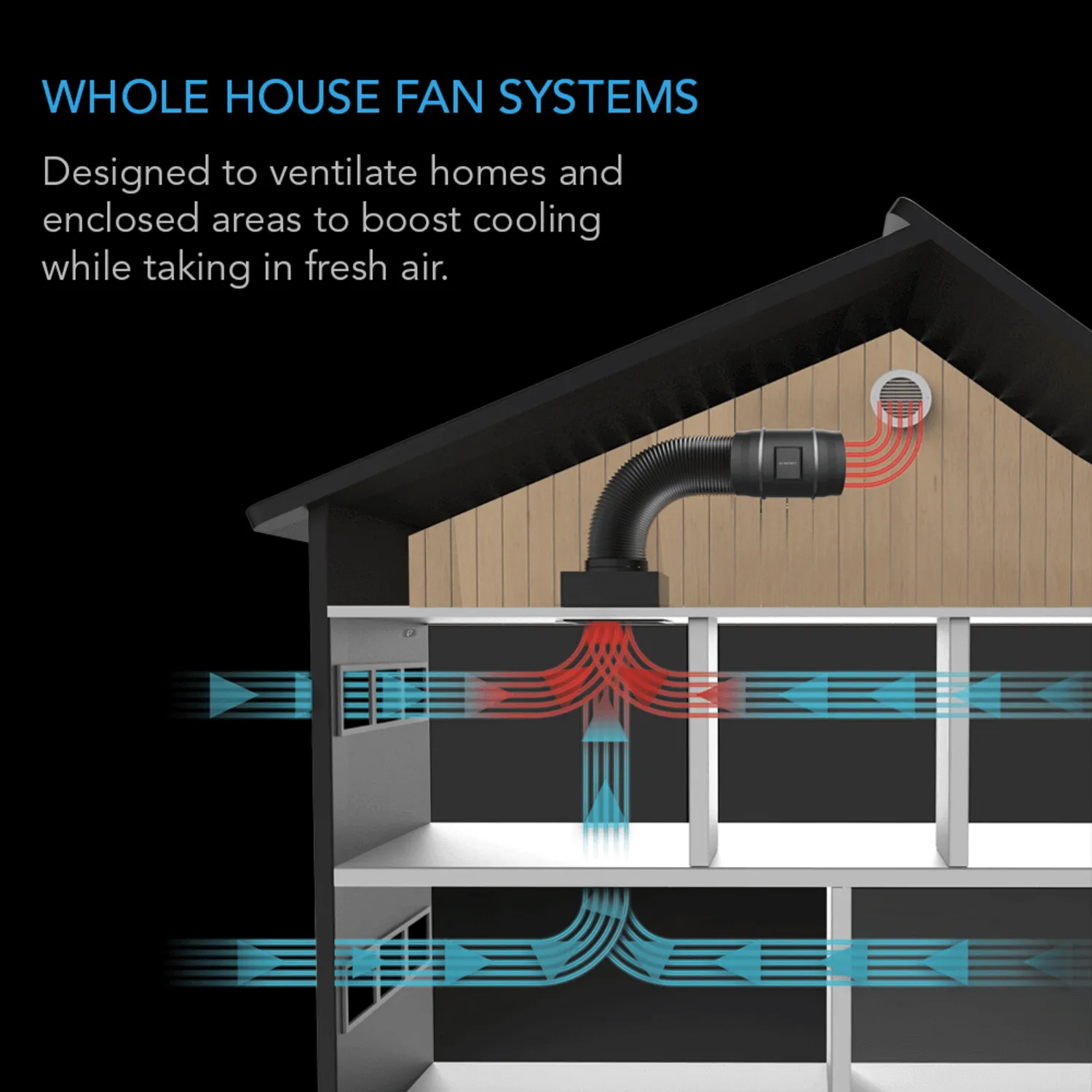

Product Description: This is a whole-house fan system designed to keep homes cool. It exhausts hot air from indoor spaces while creating a passive intake to bring in fresh air. The included LCD digital controller allows for smart thermostat control, fan speed setting, and status alerts. Each fan system comes with 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter to prevent attic air from flowing into your house when the fan is not in use.

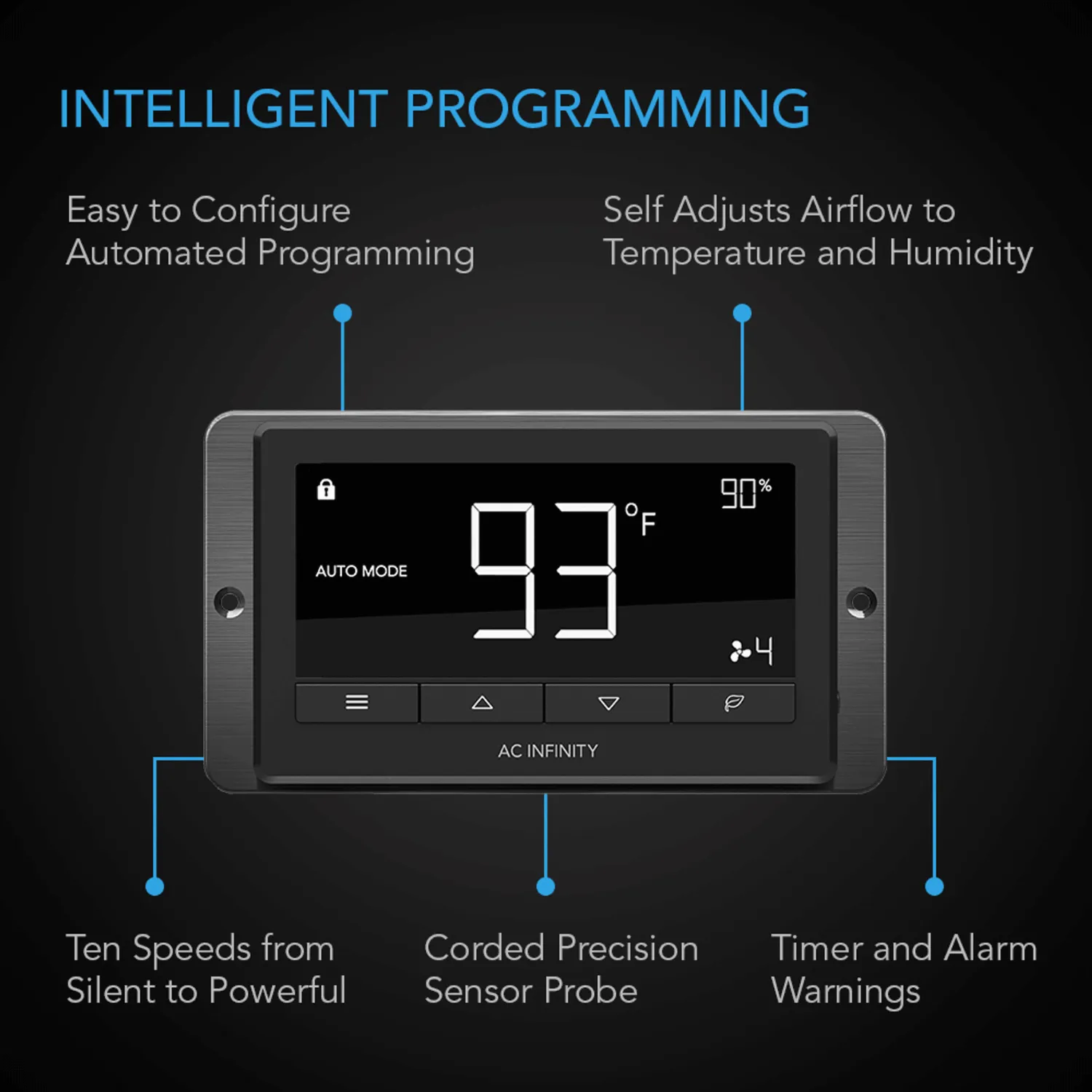

Intelligent Controller: Equipped with active temperature and humidity monitoring capabilities, the digital controller allows for customization of fan triggers based on house conditions. It can run continuously or on a timer for added convenience. The fan speed can be adjusted between 0 and 10 to suit your desired cooling level and noise preference. Plus, each smart controller includes a 12 ft. corded sensor probe for accurate detection of temperature and humidity levels. Additional features include an LCD screen energy-saving mode, backup memory, and alert notifications.

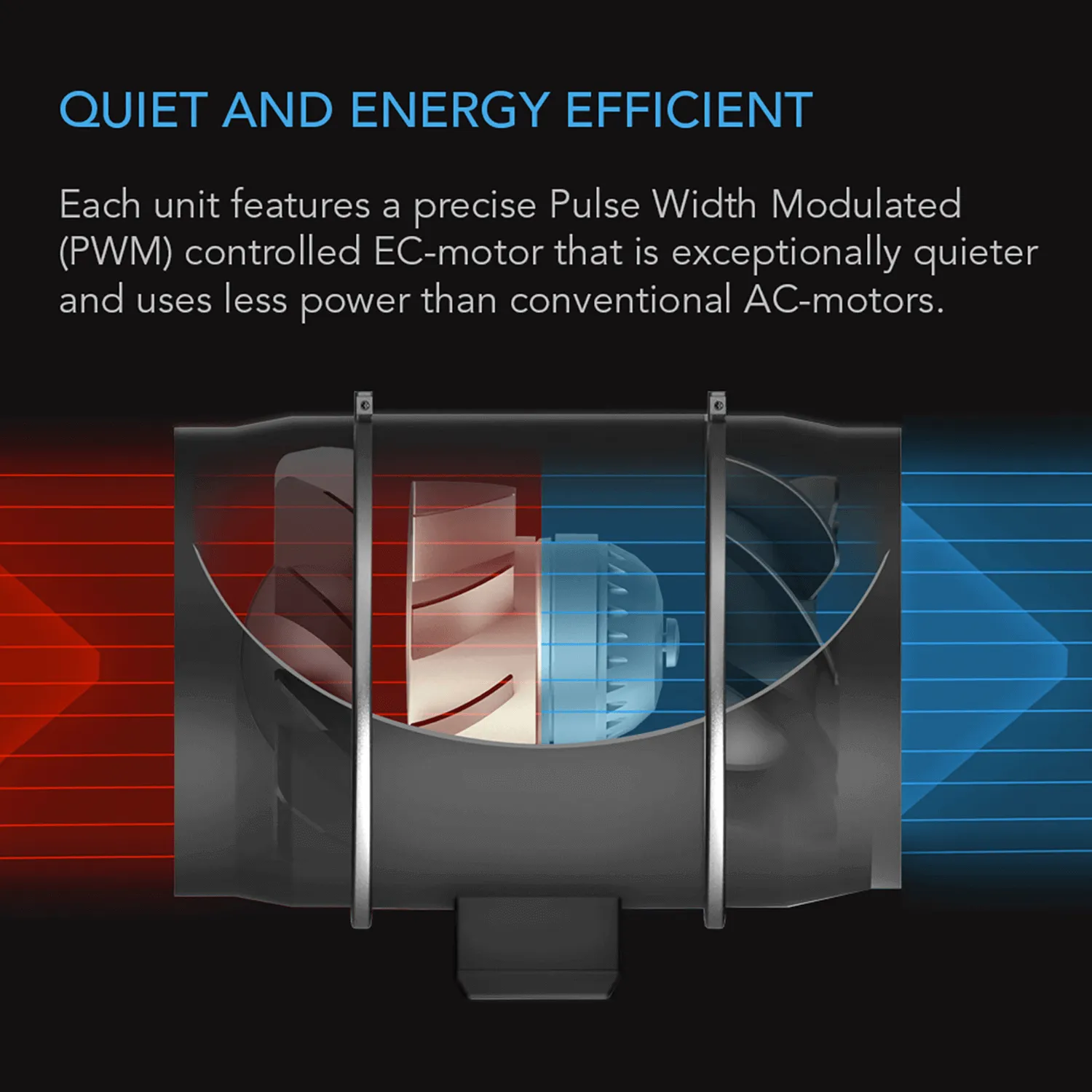

Efficient Performance: Thanks to the Pulse Width Modulation (PWM) controlled motor, this attic fan operates quietly and efficiently, consuming up to 95% less power compared to traditional air conditioners. The fan has a lifespan of 50,000 hours of continuous running time, facilitated by dual ball bearings that allow for omnidirectional mounting. It is IP-44 rated to withstand dust and moisture, making it perfect for the most humid environments. The built-in damper uses gravity-fed shutters that automatically close the opening when the fan is not in use, preventing any attic air from entering your spaces.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDWAY T12

Product Model: AC-CRT12

UPC Code: 819137021099

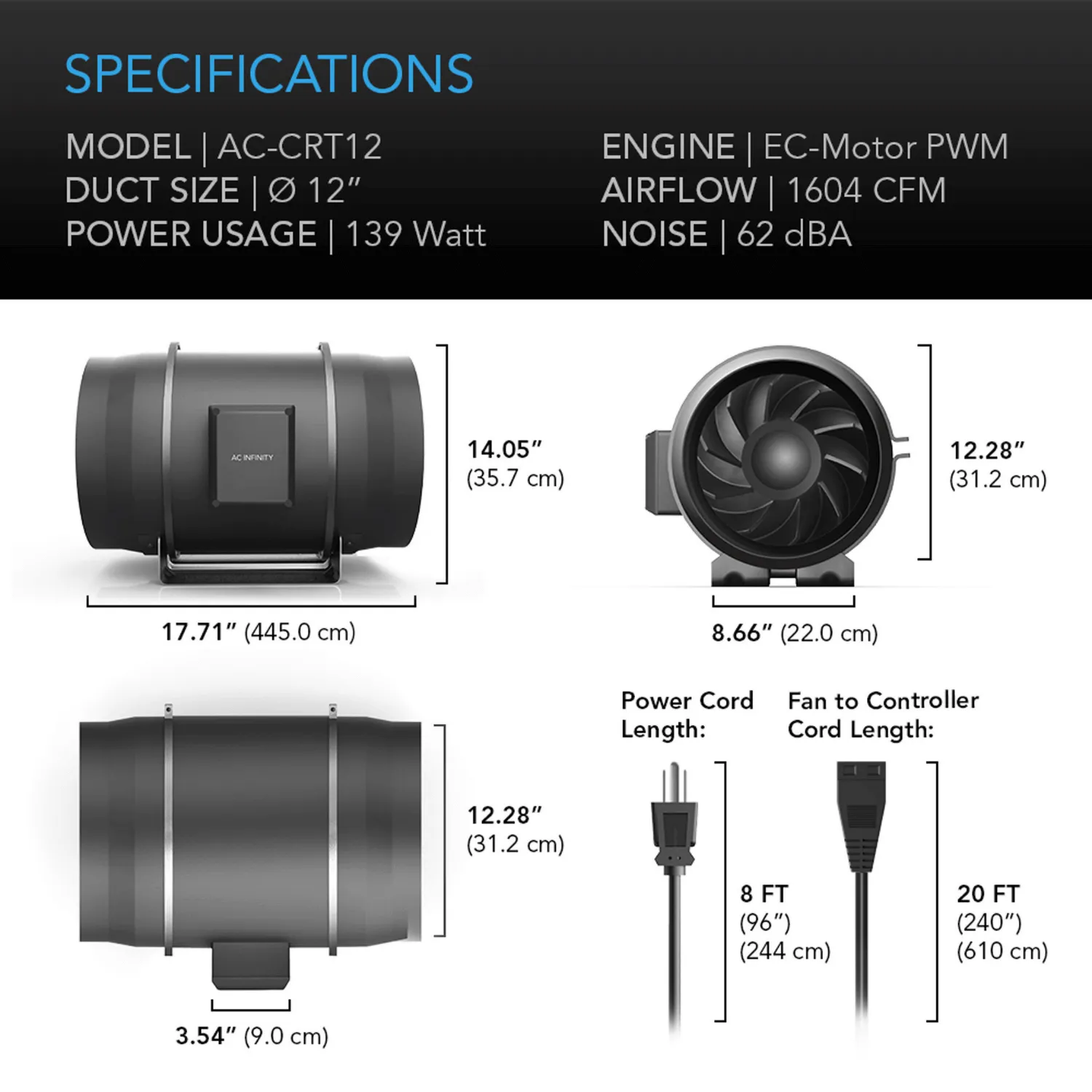

Product and Mounting Dimensions - Fan Unit

Duct Size: 12"

Duct Tube Length: 5 ft.

Total Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)

Mounting Hole-To-Hole Distance: 7.00 x 7.12 in. (17.8 x 18.1 cm)

Screw Hole Size: Ø 0.462 in. (Ø 1.18 cm)

Cord Length to Controller: 240 in. (20 feet)

Cord Length to Plug: 96 in. (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs

Total Airflow: 1604 CFM

Total Noise: 62 dBA

Static Pressure: 818 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 250 W

Average Power Usage: 139 W

Current: 2.5 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 0 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the CE Certification:

Download the RoHS Certification:
