Description

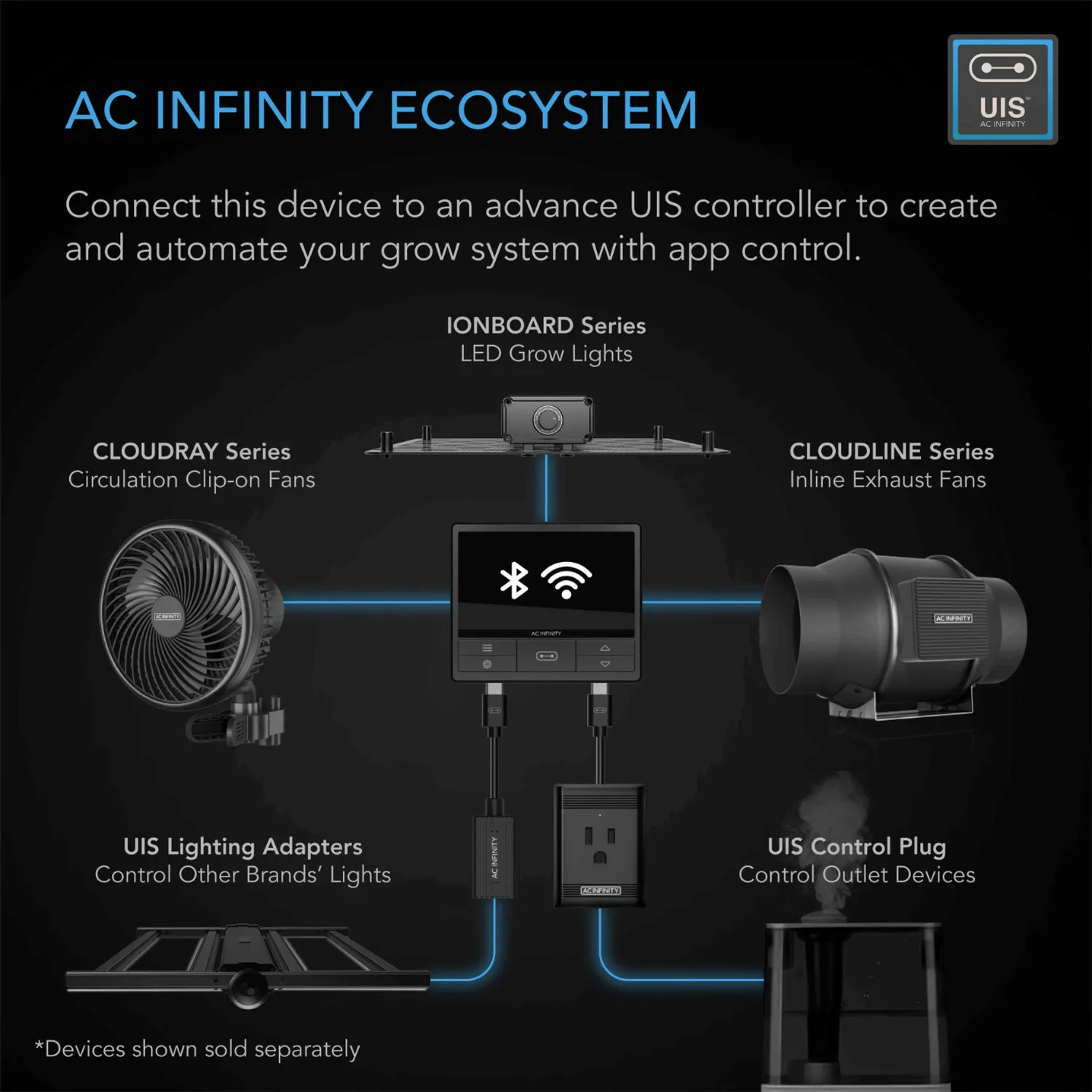

Quiet and Efficient Ventilation System: This product is designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets. It features a wired 10-speed fan controller and is compatible with all UIS controllers with intelligent programming.

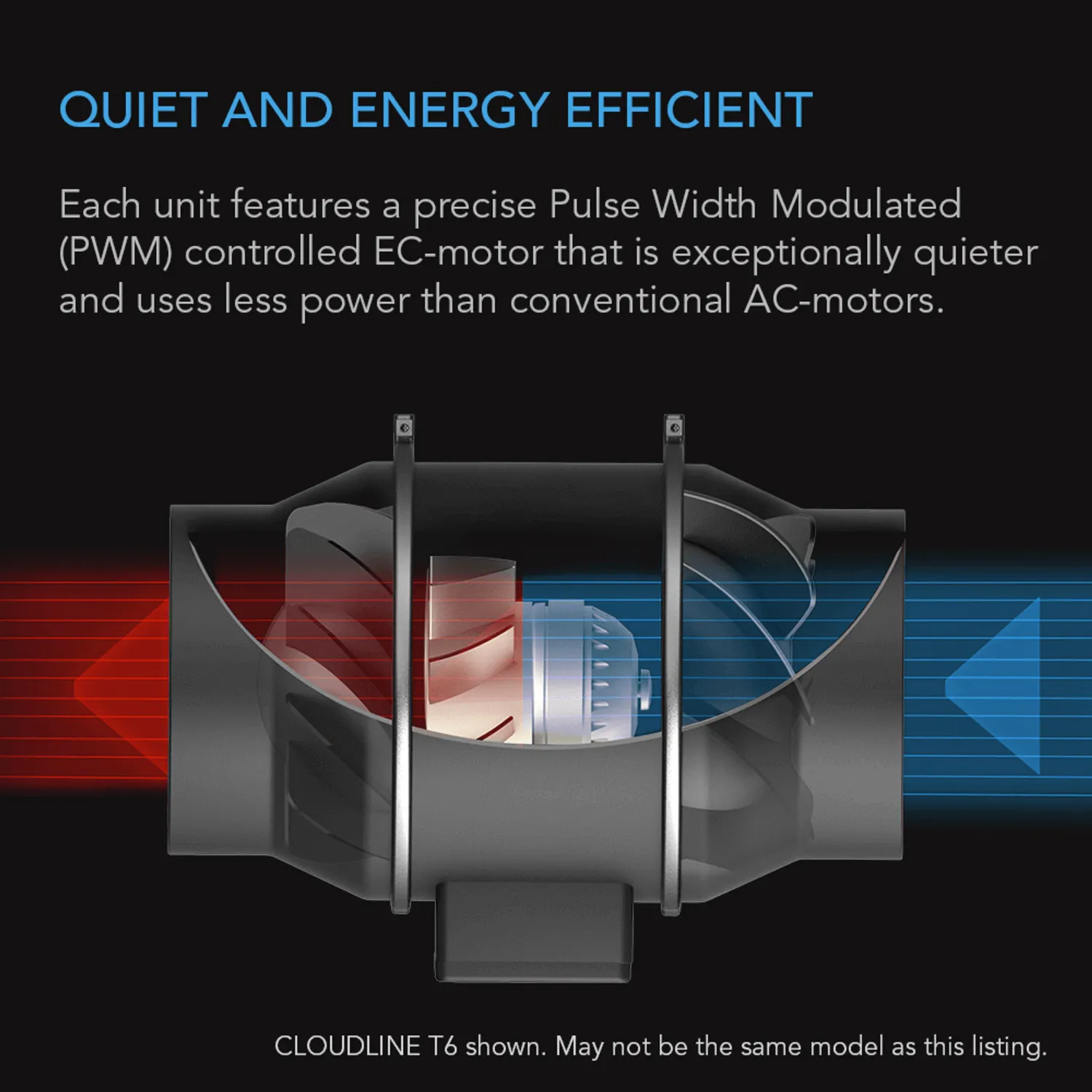

Advanced Motor Design: The PWM-controlled EC motor provides quiet and energy-efficient performance with minimal heat and noise. It has a mixed flow design with a stator blade and hydrodynamic wind circles, enabling airflow delivery even in high resistance areas.

Product Specifications: The duct size is 10" and dimensions are 11.3 x 15.1 x 12.2 in. It has an airflow capacity of 1201 CFM, noise level of 48 dBA, and uses dual ball bearings. The motor box containing the fan's impeller and blades can be detached from the mounted frame for easy cleaning and maintenance.

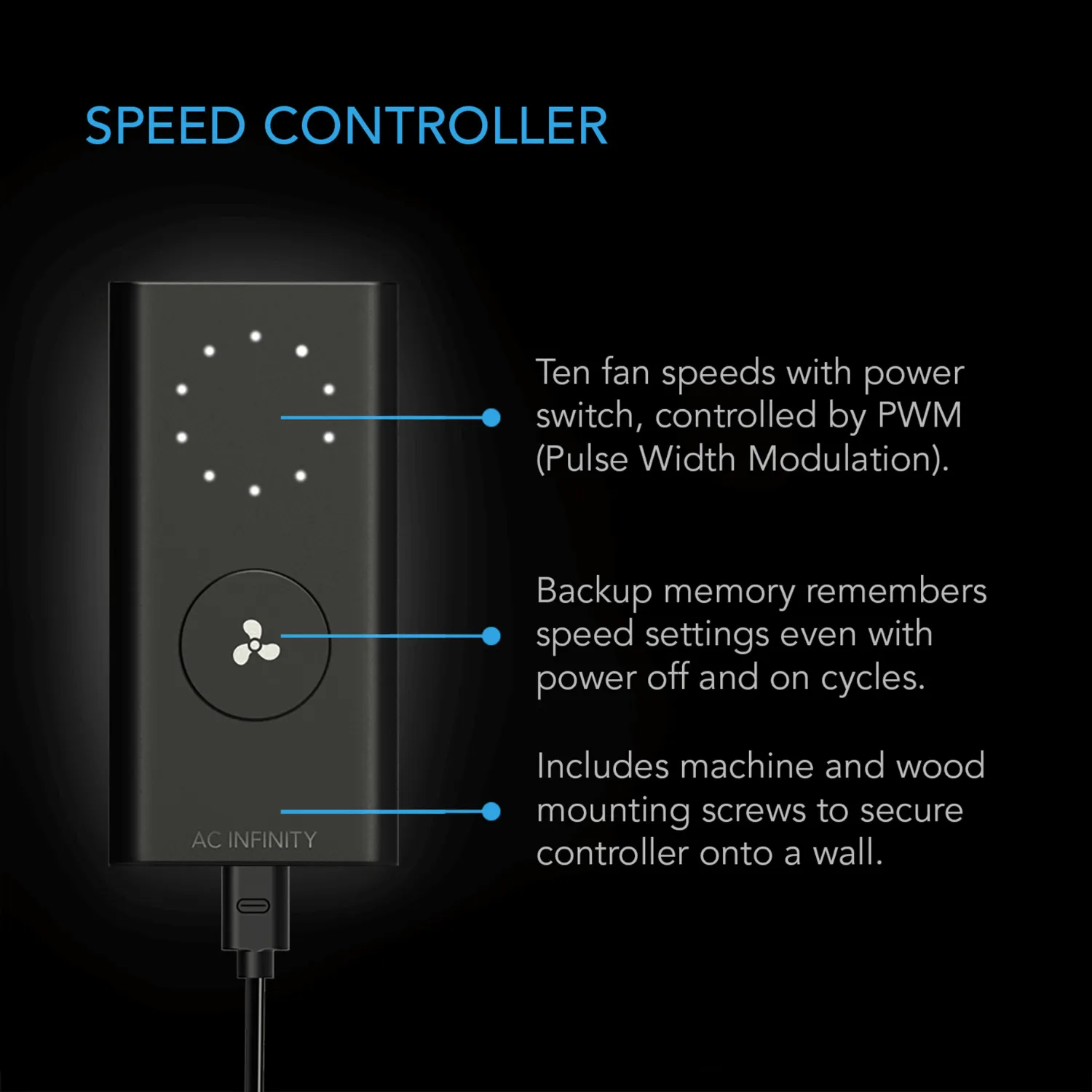

Precise Speed Controller: The speed controller allows you to set the duct fan's speed between ten speed levels optimal for noise and airflow levels in various environments. The precise airflow control is supported by the inline fan’s cutting-edge EC motor, which is controlled using PWM (Pulse Width Modulation) to run smoothly at extremely low RPM speeds without generating motor noise. It also features backup memory that retains the last speed setting if power is lost.

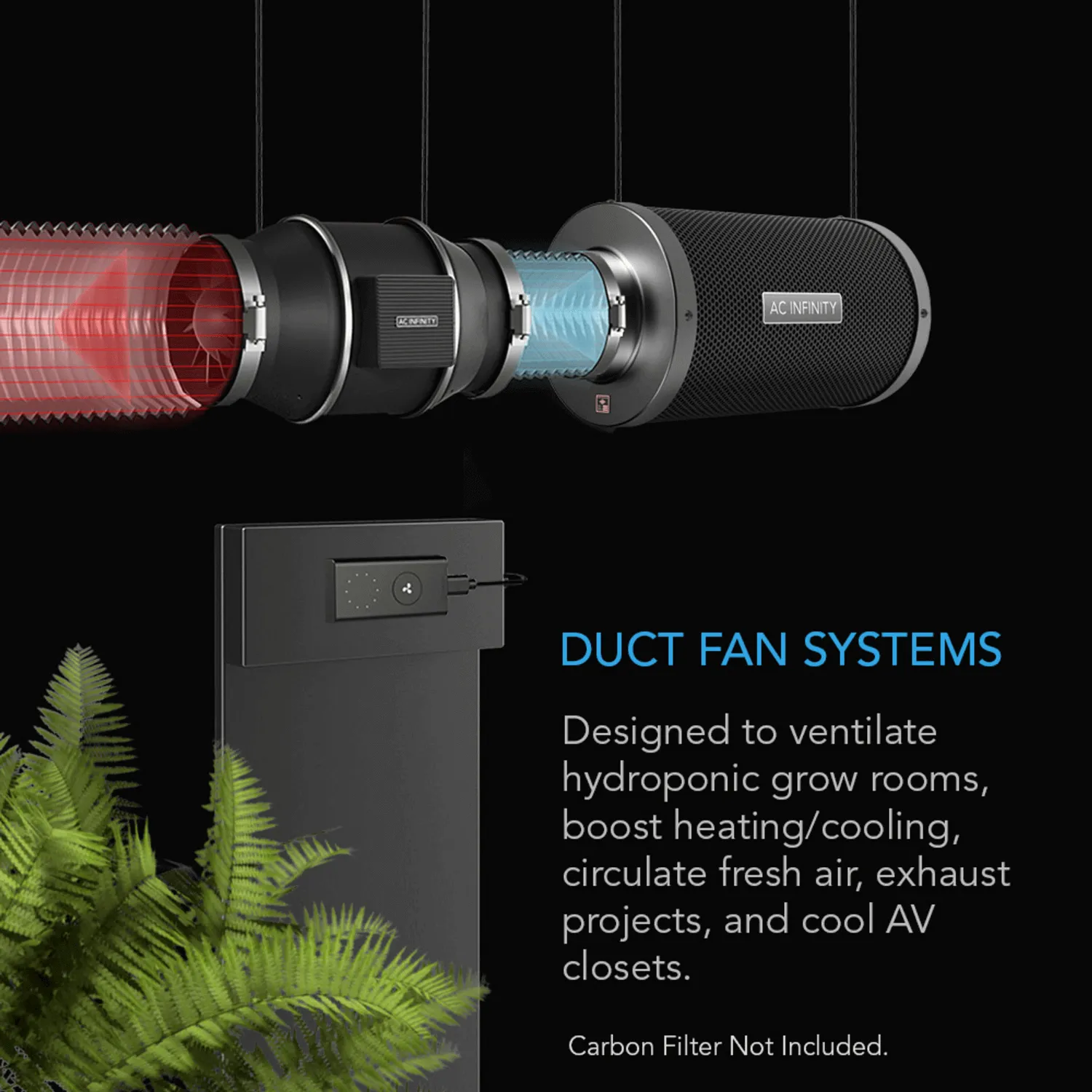

Resilient and Versatile Design: The unit is IP44 rated to be highly resistant to dust and liquids and is capable of performing well, even in harsh environments. The duct fan system finds popularity in a variety of applications. Notably, it is instrumental in cooling AV equipment rooms, closets, racks, and cabinets, as well as in circulating air in grow rooms and tents, exhausting bathrooms and attics, and other installations.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE S10

Product Model: AI-CLS10

UPC Code: 819137020856

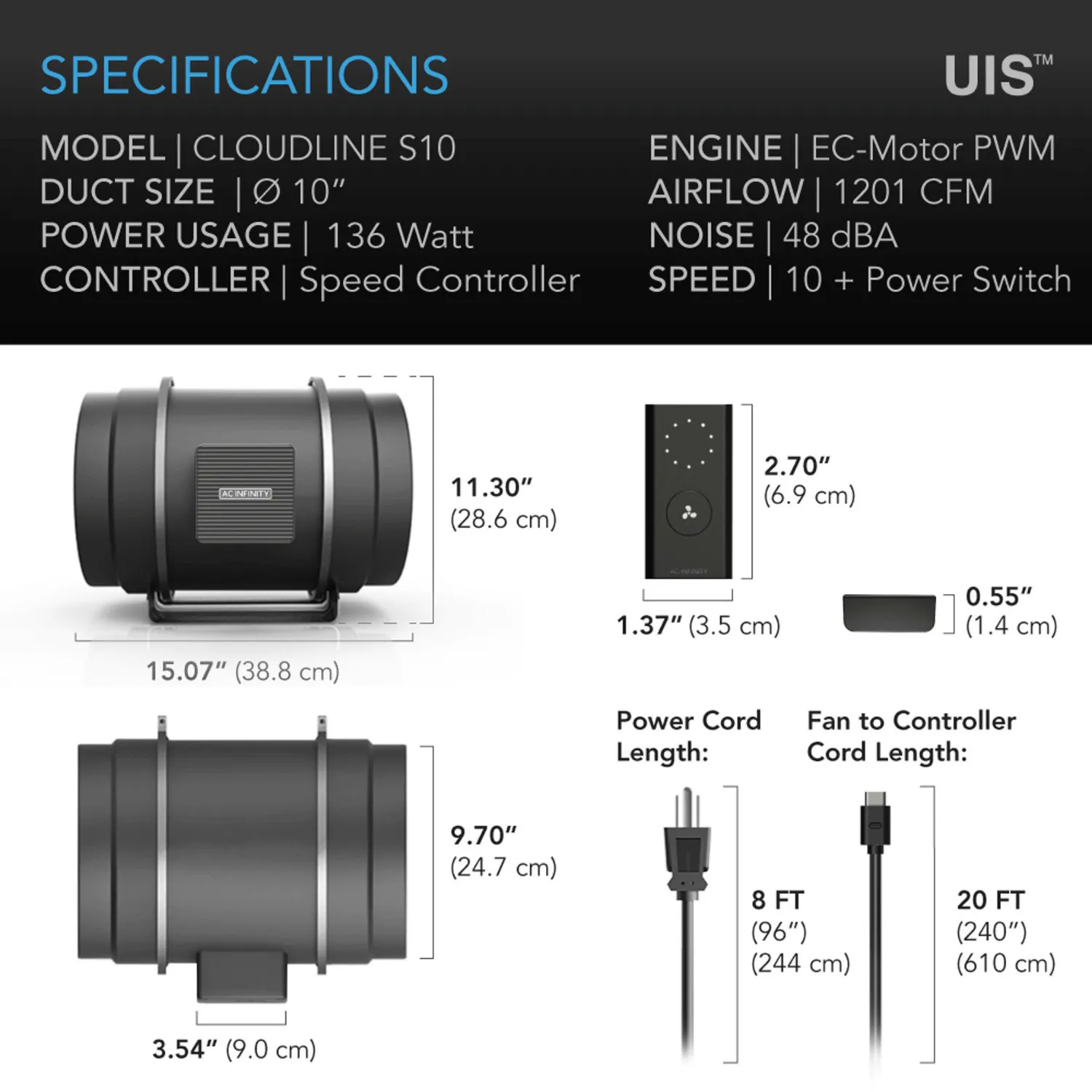

Product and Mounting Dimensions - Fan Unit

Duct Size: 10"

Total Dimensions: 9.81 x 15.20 x 11.30 in.

Mounting Hole-To-Hole Distance: 5.90 x 5.90 in.

Screw Hole Size: 0.472 in.

Cord Length to Controller: 120 in. (10 feet)

Cord Length to Plug: 96 in. (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 in.

Product Performance and Technical Specs

Total Airflow: 1201 CFM

Total Noise: 48 dBA

Static Pressure: 1059 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 255 W

Average Power Usage: 136 W

Current: 2.7 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Wall Adapter Input: 100 to 120V AC

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the IC Certification:

Download the RoHS Certification:

Download the ETL Certification:

Download the SAA Certification:

Download the CE Certification:
