Description

Design and Purpose: This Inline fan is designed to quietly ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets. It boasts the same build quality and innovations as the CLOUDLINE Series, provided in a value package.

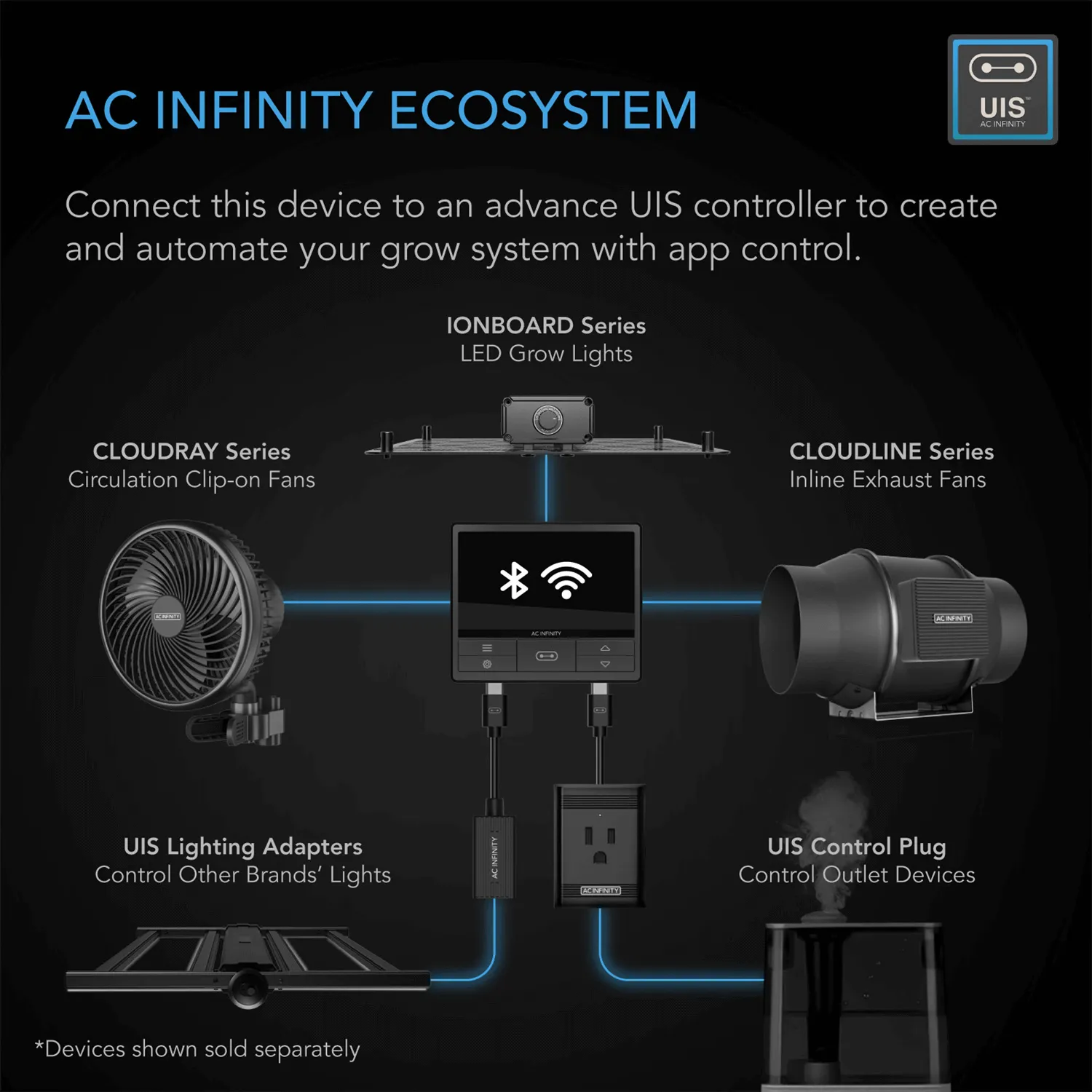

Included Items: The packaging includes a wired 10-speed fan controller and is compatible with all CLOUDLINE Series smart controllers. Kit also includes one inline fan unit, one speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware.

Performance: With a mixed flow design combined with an EC-powered motor, it ensures quiet and energy-efficient performance. Despite its high static pressure applications, the duct fan maintains airflow. Detachable motor box for easy cleaning and maintenance. The airflow rate is 352 CFM with a noise level at 34 dBA.

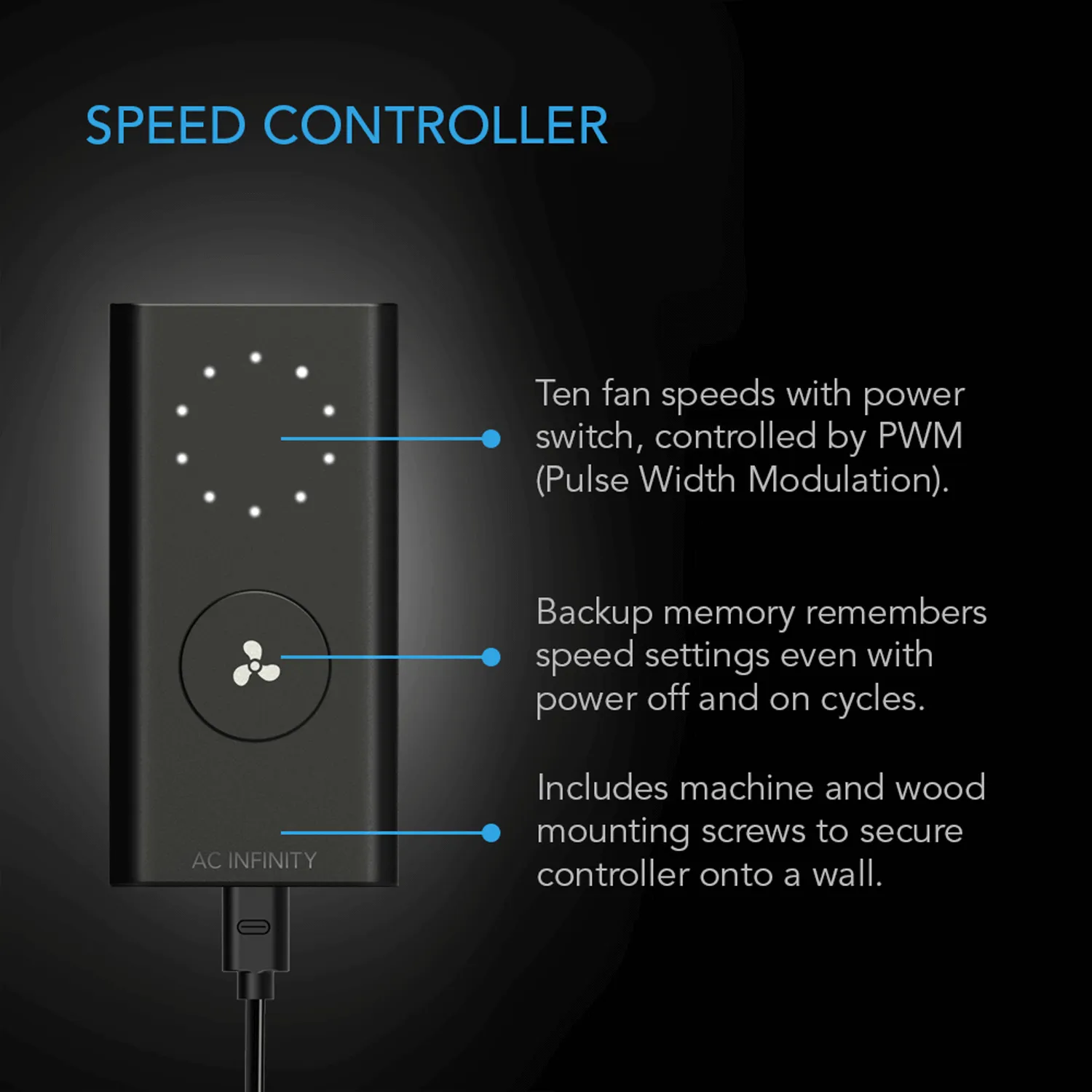

Precise Speed Controller: The speed controller allows the duct fan's speed to be set to optimal noise and airflow levels for various environments. The EC-motor runs smoothly at extremely low RPM speeds without generating motor noise. It has power switch and backup memory with ten speed options.

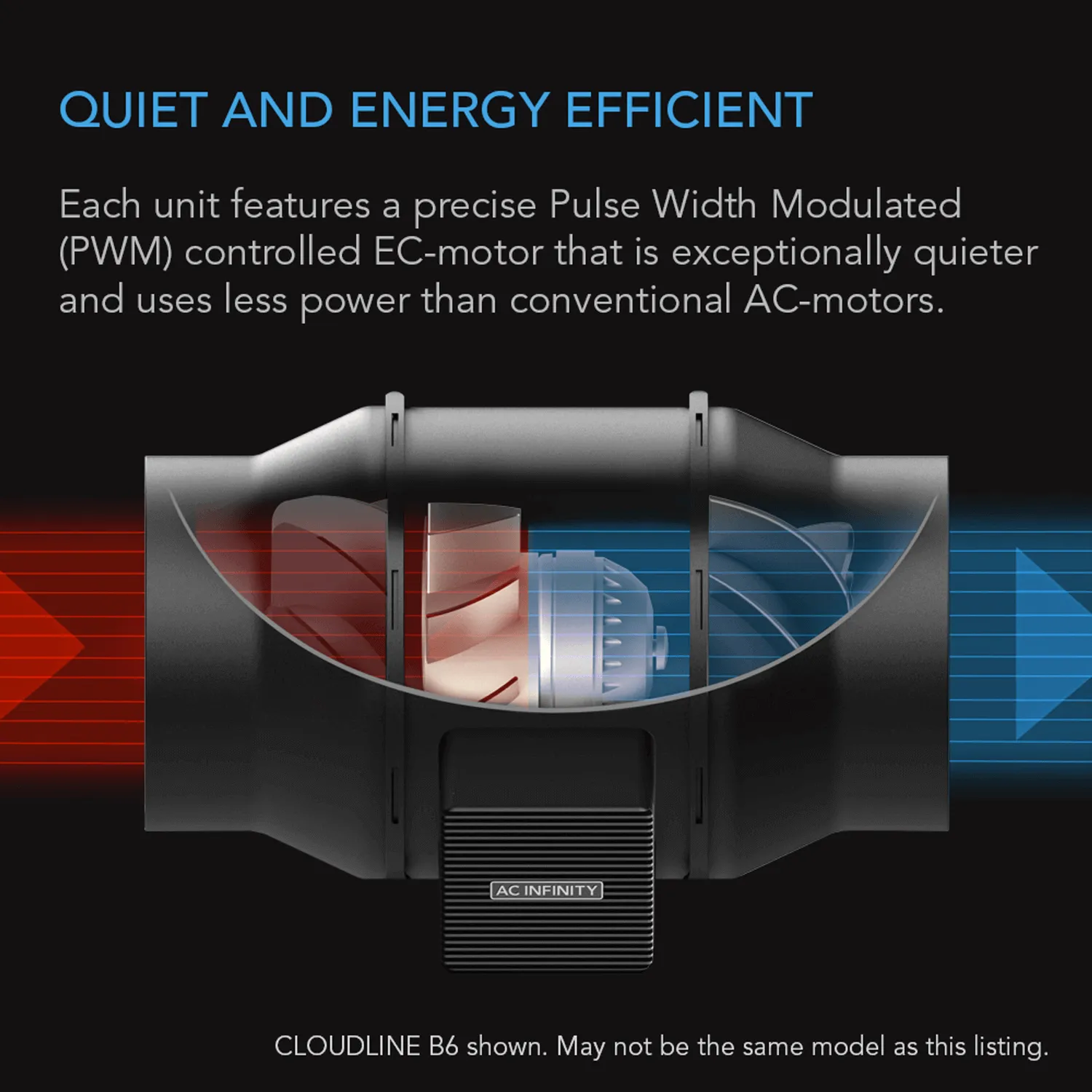

Quiet and Energy Efficient Design: The inline fan utilizes a mixed flow design using a stator blade and dual hydrodynamic wind circles. This accounts for its high static pressure rating, enabling it to provide airflow even when air movement is restricted. It uses dual ball bearings rated at 67,000 hours, making it mountable in any direction. It also features a plastic mounting base to reduce fan vibration noise. The unit is IP44 rated for high resistance to dust and liquids.

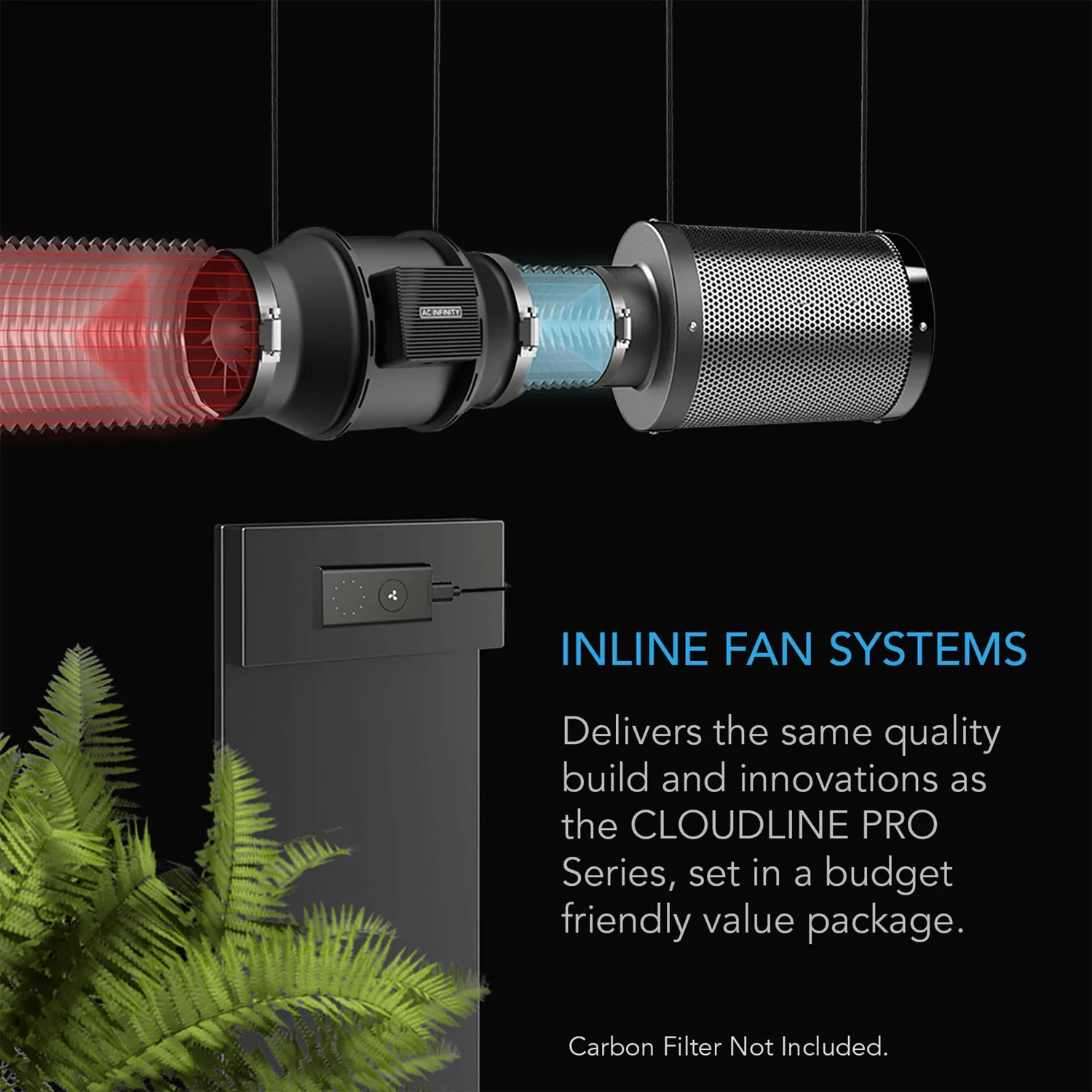

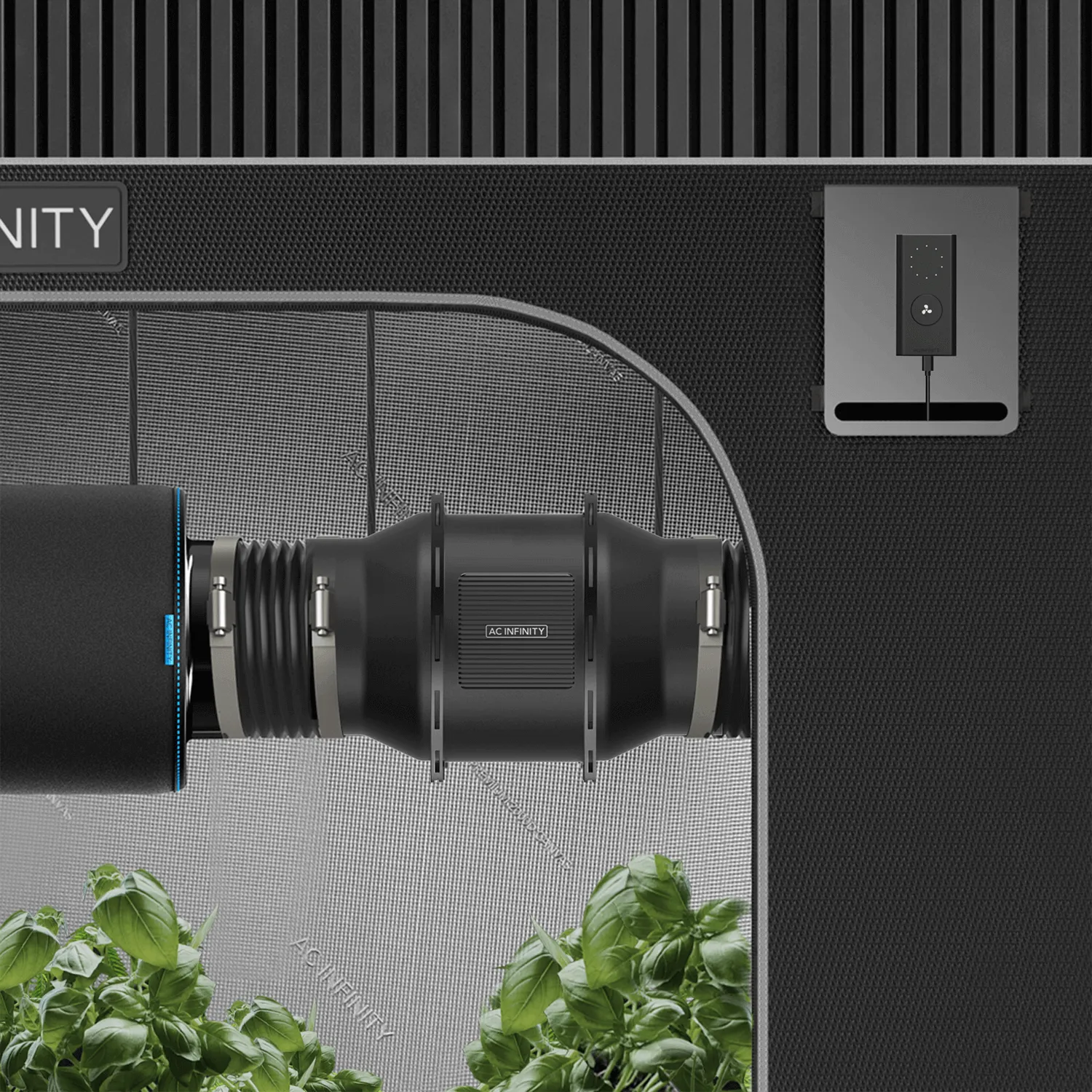

Applications: This quiet inline fan system is primarily found in hydroponic grow tents and rooms to provide cooling and ventilation. Its low noise and advanced control features make it ideal for bathroom and attic settings. In addition, it serves well in cooling AV equipment rooms, closets, racks, and cabinets.

Specifications

Manufacturer: AC Infinity Inc.

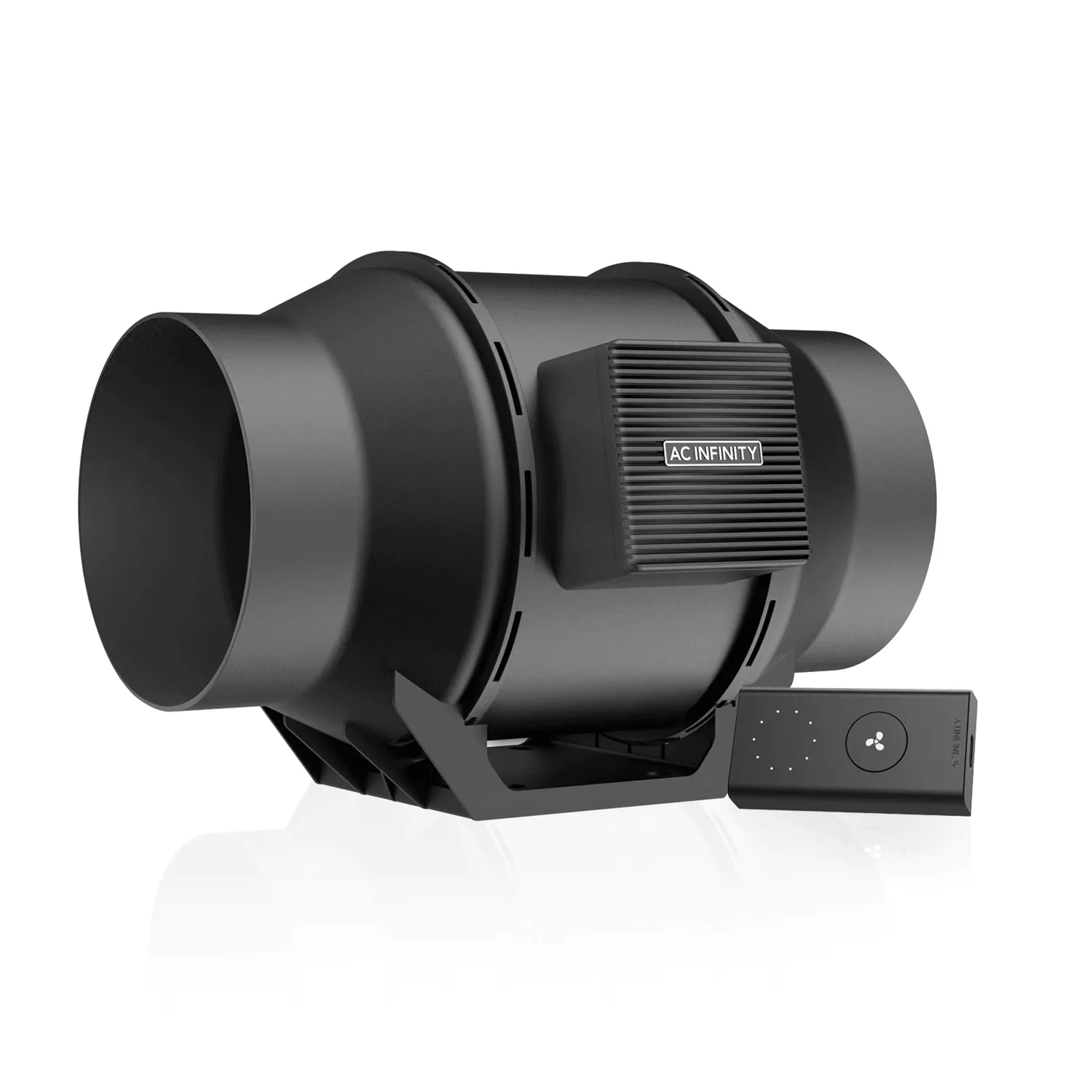

Product Name: CLOUDLINE A6

Product Model: AI-CLA6

UPC Code: 819137021754

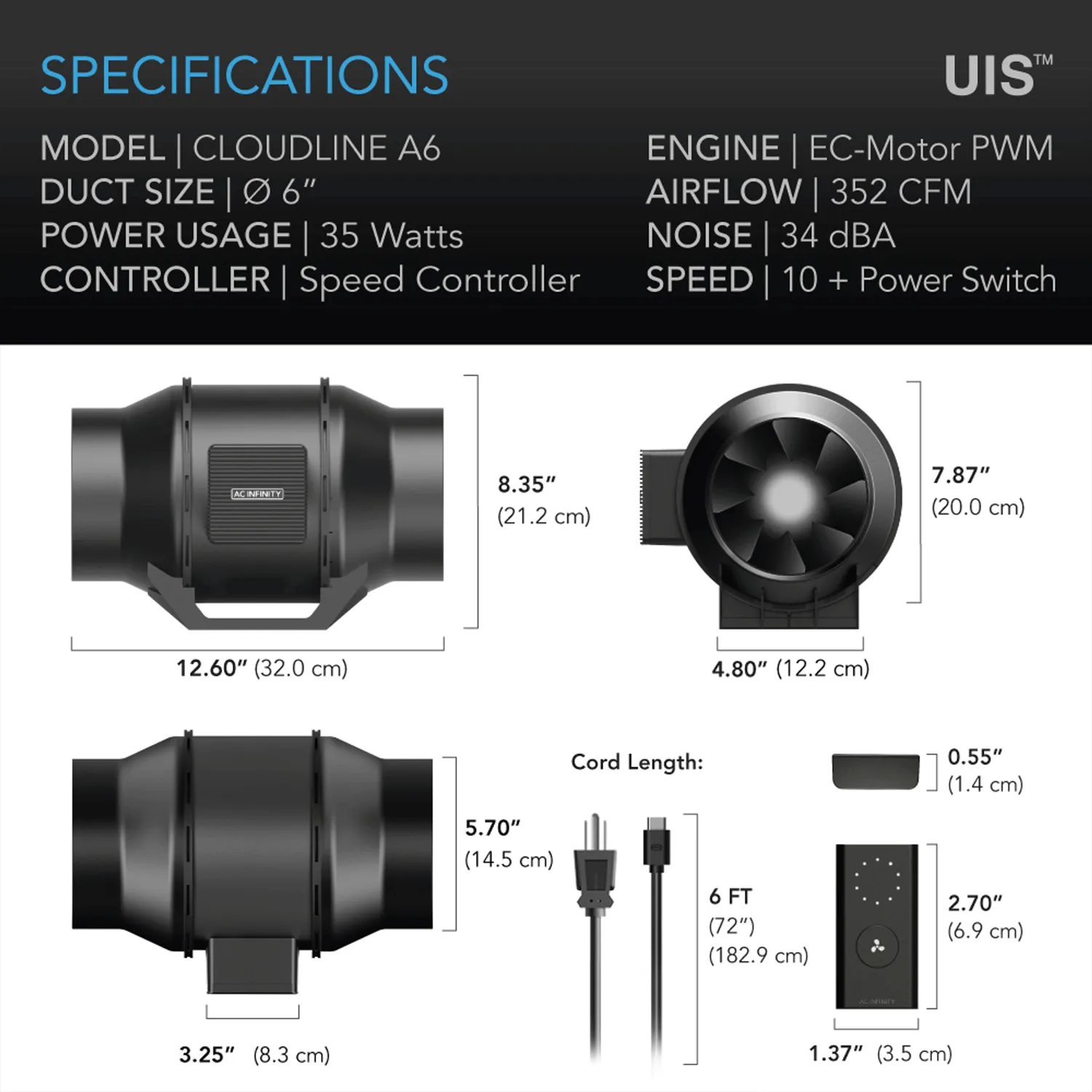

Product and Mounting Dimensions - Fan Unit

Duct Size: 6 inches

Total Dimensions: 7.87 x 12.60 x 8.35 inches

Mounting Hole-To-Hole Distance: 3.15 x 2.36 inches

Screw Hole Size: Diameter is 0.236 inches

Cord Length to Controller: 72 inches (6 feet)

Cord Length to Plug: 72 inches (6 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 2.70 x 1.37 x 0.55 inches

Product Performance and Technical Specs

Total Airflow: 352 CFM

Total Noise: 34 dBA

Static Pressure: 394 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 65 W

Average Power Usage: 35 W

Current: 0.95 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the IC Certification:

Download the RoHS Certification:

Download the ETL Certification:
